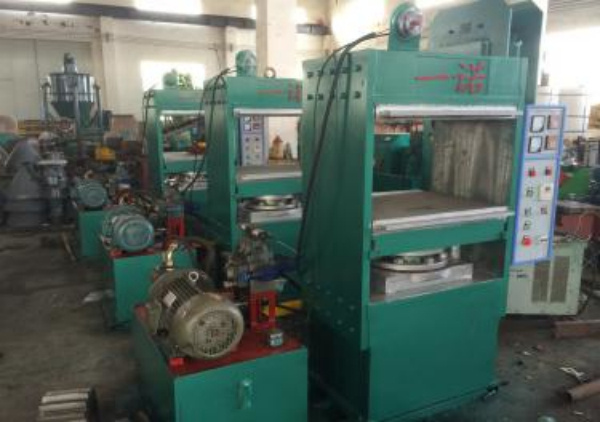

Frame type EVA Sole curing press/EVA sandles making machine
Function:
Mainly used for producing of foaming slippers, foaming sheet, thermal insulation material, sports protective material, life jacket, sponge and other rubber products.
Features:
1. Main frame uses casting steel. Piston adopts chilled cast iron, with surface hardness HR-70.
2. With large clamping force, high open & close speed, and high production efficiency.
3. Its structure is simple and application is wide. It is easy to be operated.
4. Upper base, movable plate, oil cylinder are made of high-quality steel (EG35), auusrue by heat treatment, flaw detection. The machine's rigidity is stronger 15% than welding plate structure.
Long use no deformation.
5. Hydraulic system is adopt logical formula circuit, There's no oil seal in the circuit, no abrasion, no leak.
6. It is adopt PLC control and text display, function display clearly, data changed convenient.
We can design and manufacture all kinds of non-standard rubber machinery according to the requirement of the customers.
Item |
|
Total pressure(Clamping Force) | MN | 1.00 (100 Tons) |
Hot plate size | MM | 780*550*60 |
Working layer | Layer | 1 |
Plate clearance(station opening) | MM | 380 |
Piston stroke | MM | 380 |
Piston Diameter | MM | 300 |
Piston number | Set | 1 |
Hydraulic pressure | Mpa | 15.5 |
Motor power | KW | 5.5 |
Operation mode | Automatic system |
Structure mode | Frame structure(As picture) |
Heating mode | Electrical heating (12*1.5kw) |
Qingdao Eenor SCIENCE&TECHNOLOGY Co., Ltd is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.
My company's products have passed the certification of the various, such as: Plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.
Our Company Motto: "THE HONESTRY IS THE ROOT, A PROMISE IS A PROMISE" the enterprise idea, adhere to market-oriented, providing customers with advanced products and quality services. Mr kIMSUN PANG(Chairman) together with all staff warmly welcome customers at home and abroad to the company to negotiate, guidance, my company is willing to first-class technology, first-class service, first-class quality, sincerely service for you.
