FRP Panel with Alu. Honey Comb for Van, Container, Vehicle

Product Description
Thickness:20mm,   Top skin: 1mm FRP, Back skin: 1mmFRP
Core: PU, XPS, PP or plywood     surface finish: glossy or rough

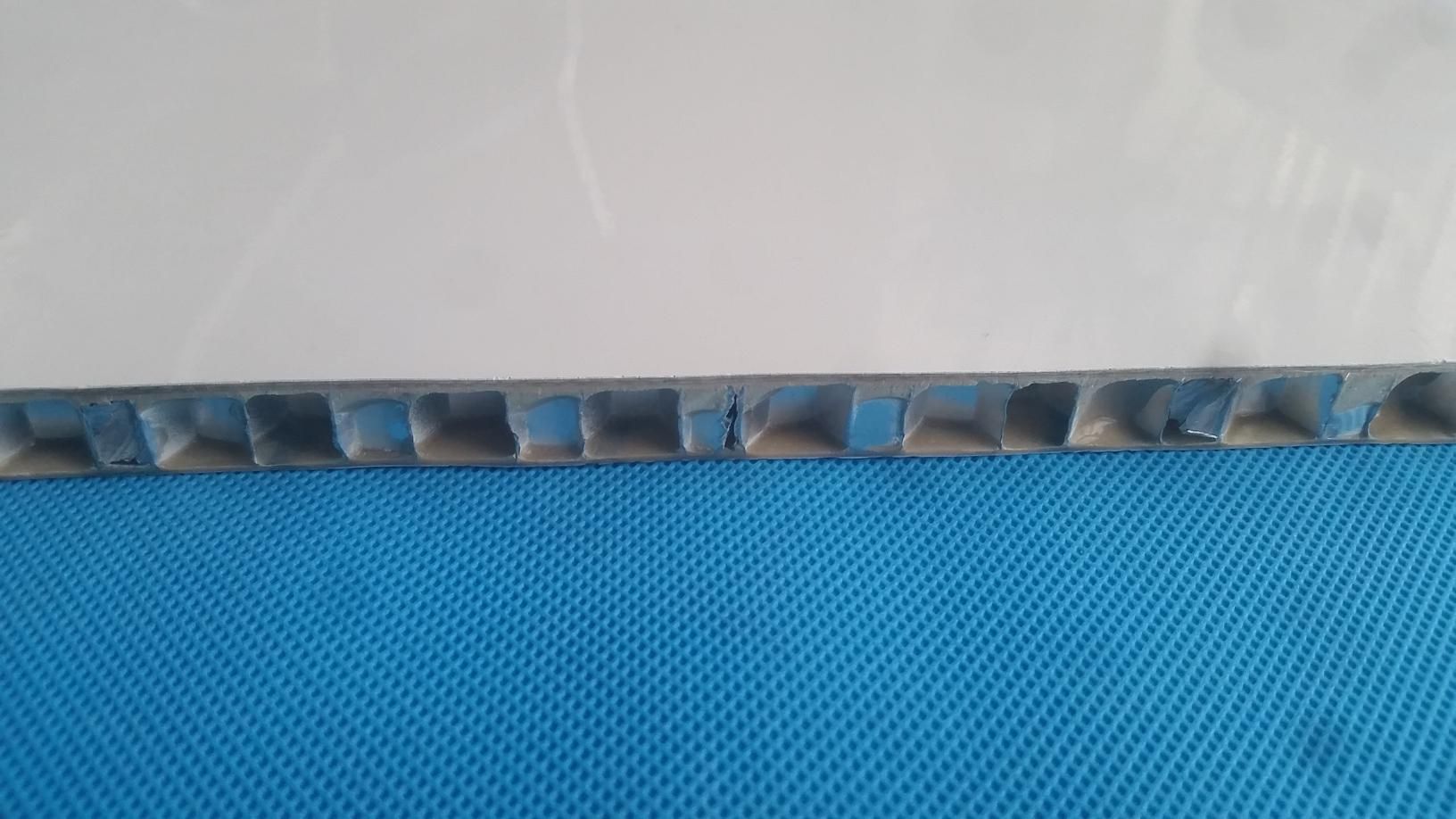

FRP(Fiberglass Reinforced Plastics)& honeycomb composite panels is made of fiberglass skins on both sides and core materials between. For fiberglass skin, we suppliy gel coated  surface and rough surface. Gel coated FRP honeycomb panels are usually used to make cargo truck bodies, while rough surface panel is for further lamination. Core materials can be aluminum honeycomb, PP honeycomb, PU and XPS.FRP  composite panels are highly durable, cost effective and widely applicated.The max size is 3000mmx12000mm, thickness ranges from 3mm--400mm, any size within this can be customized as per your requirements.

Specifications:

Regular thickness	15mm, 18mm, 20mm, 25mm, 30mm
regular thickness of FRP	0.5~1.0mm, 1.5mm, 2.0mm,2.5mm
panels for truck body	20mm or 25mm thick

The composite panels for truck body are usually 20mm or 25mm thick, with 2mm FRP on each side and 16mm PP honeycomb as core.
Features:
Light weight;
High strength;
Heat insulation;
Sound and Vibration Dampening;
Water, moisture, corrosion and chemical resistant;
Environmental protection;

Applications:
This product is widely used for dry cargo truck body building and containers.

Packaging & Delivery
Covered with protective film, then piled and packed in export grade plywood carton.
Delivery Time: 7-30days depend on order quantity
