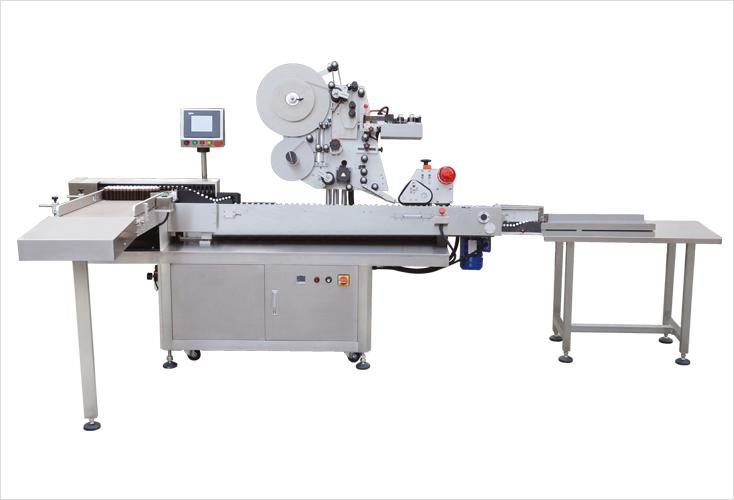

Full Auto Horizontal Labeling Machine
| Price: |
US $ 50000-150000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Device description1.Horizontal labeling for special small round bottles
2.Horizontal feeding, simple operation, low rate of broken bottles(oral liquid bottle is less than 1/200000).
3.Screw bottle, the bottles are uniform and synchronous with the conveyor belt, do not lack, not broken bottles.
4.Using imported famous brand servo motor, high marking speed, high precision and good stability.
5.High speed sponge wheel with rolling attachment mechanism, good cushioning and wear resistance.
6.High Labeling speed and precision, error is in plus minus 0.5 mm.Device feature1. Horizontal feeding: Compare with other manufacturers vertical feeding mechanism, more safe and convenient, broken bottle rate is also significantly reduced to 1/200000, smaller than other manufacturers over ten times. Equipped with bottle detection device, when the bottle is less than a certain amount, it can automatically decelerate, after feeding, it can automatically accelerate, and greatly reduce the labor intensity.
2. Screw bottles: Use screw bottle body and with the conveyor belt mechancial synchronous, make the container smoothly into the conveyor belt, do not drop the bottle, not broken bottles.
3. High speed marking mechanism: Adopt three-step design, the fast and continuous standard.Technical parameters1. Outer diameter of bottle: 10-30mm
2. Labeling speed: 0-500 pc/min
3. Labeling accuracy: ±0.5mm
4. Rate of broken bottles: 1/200000
5. Labeling length: 20-95mm
6. Total power: 2.0KW
7. Power supply: 220V,50HZ
8. Gas source: 0.5MPa
9. Outline size: 2650 x 1310 x 1640mm (L × W × H)
10. Total weight: 380kg
If you are interested in it, please contact me : Nana Zhang
| Prod Model: |
500 |
| Automatic Grade: |
Automatic |
| Application: |
Oil |
| Driven Type: |
Electric |
| Material Type: |
Powder |
| Packaging Type: |
Bottles |
| Packaging Material: |
Composite Materials |
We are Shanghai Medigrade Industry Co, . Ltd which is located in the Chang Jiang Delta whose manufacturing industry is the most developed in China. Our main products are pharmaceutical machines and hardware mechanical and electrical products.
We focus on full-automatic labeling system research and development with 15 years experience, provide high-quality products and services to Domestic and foreign customers, has a good reputation in the labeling industry.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
We appreciate every trust and support, and would like to cooperate with you to create good future. Hope Medigrade can be your most trusted partner!
