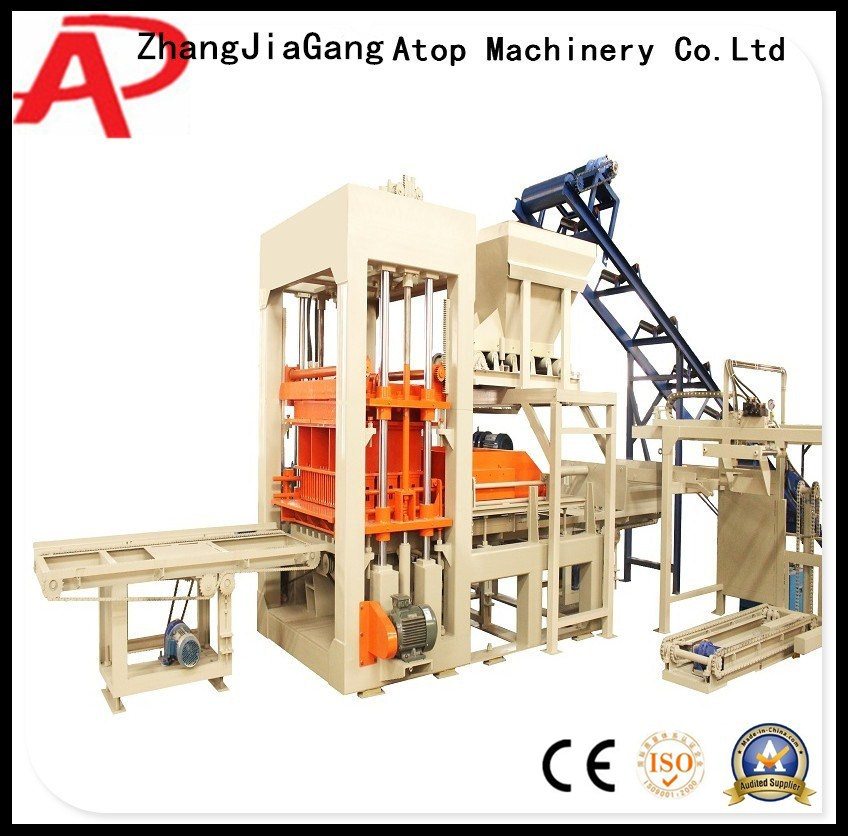

Full Automatic Hydraulic Concrete Block Making Machine / Brick Machine
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Condition: |
New |
| Raw Material: |
Sand, Flyash, Cement, Crushed Stone and So on |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Type: |
Hydraulic Pressure and Vibrate Forming |
Product Description
Automatic Brick Making Machine
Features:1.Automatic production line for concrete block making,manpower saving to control the cost.
2.Central control system ,which automatically weighs and scales the raw materials,making sure the proportional ratio is precise, so as to guarantee the quality of concrete blocks.
3.Environmental protection design and can work under all weather condition.
4.High production output of concrete blocks,meets the large demand of big projects.
5.Compatibility improve the adaptability of the machines,easy to upgrade the machine.Raw Material:sand, gravel, stone, cement, can add a lot of fly ash, slag, steel slag in coal gangue, ceramic, perlite, construction waste, domestic waste and other industrial waste,etc.Technical Specifications| Model | QT6-15 | QT8-15 | QT10-15 |
| Cycle Time | 12-18s | 12-18s | 12-18s |
| Vibration Force | 60kN | 80kN | 100kN |
| Pallet Size | 850 x 680 x (8-35)mm | 950 x 850 x (8-35)mm | 1250 x 850 x (8-35)mm |
| Installed Power | 31KW | 43.5KW | 52KW |
| Motor Frequency | 50HZ | 50HZ | 50HZ |
| Total Wright | 7.5T | 13T | 15T |
| Machine Size | 5210 x 3530 x 2480mm | 7200 x 2100 x 2825mm | 7200 x 2300 x 3000mm |
| | | QT8-15 | QT10-15 |
| Block Type | Block Size(L*W*H) | Pcs/
Mould | Pcs/
Hour | Pcs/
Shift | Pcs/
Mould | Pcs/
Hour | Pcs/
Shift | Pcs/
Mould | Pcs/
Hour | Pcs/
Shift |
| Block | 390*190*190mm | 6 | 1440 | 11520 | 8 | 1920 | 15360 | 10 | 2400 | 19200 |
| Standard Brick | 240*115*53mm | 36 | 10800 | 69120 | 45 | 10800 | 86400 | 54 | 12960 | 103680 |
| Perforated Brick | 240*115*90mm | 18 | 8640 | 34560 | 25 | 5040 | 40320 | 27 | 6480 | 51840 |
| Floor Brick | 200*100*(60-80)mm | 21 | 4320 | 30240 | 21 | 5040 | 40320 | 32 | 5580 | 4464 |
Cement Concrete Block Machine main advantages(1) Full automatic and hydraulic automatic block making machine , can produce all kinds of bricks,
and just change the moulds, such as the solid bricks, hollow blocks, paver blocks and so on.
(2) German Siemens motors
(3) Japan Mitsubishi PLC
(4) Omron travel switch
(5) The moulds: We adopt the heat treatment technique to increase the lifespan of the moulds
(6) Certificates: SGS/CE/ISO9001 2008
(7) Mould heat treatment & carburization technology

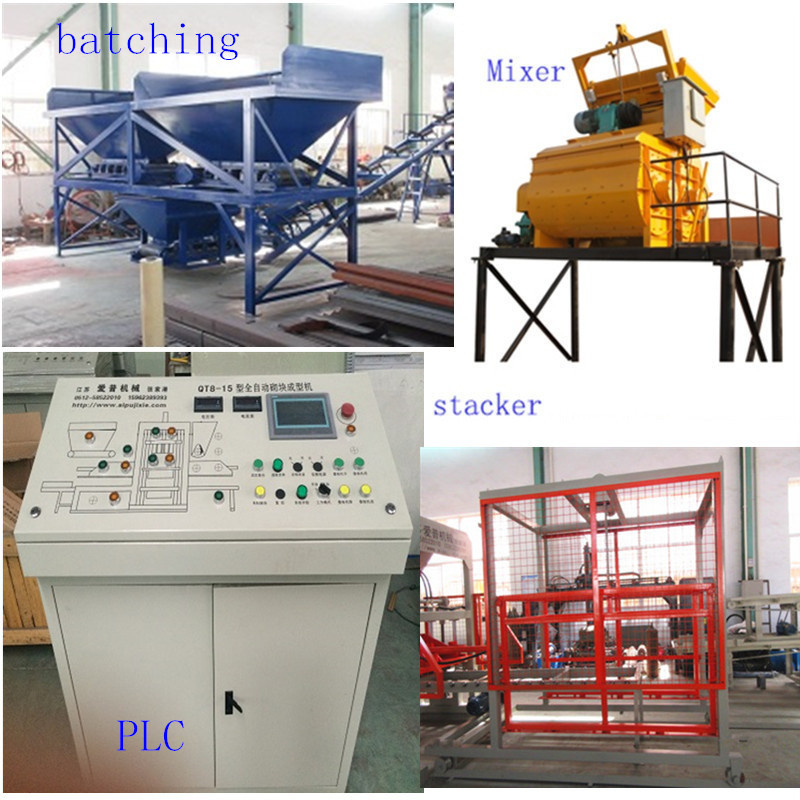

(8) Strong High-Strength Steel StructureCement Concrete Block Machine each part details1) batching plant
function: This is the starting point of the Production process. It consists of one loading bins and one weighing bin. It also contains belt conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load different types of material into the loading bin.
2) JS750 MIXER
Function: All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.
3) Germen Siemens motor and Janpnese Mitsubish PLC
4) Stacker
Technical characteristics of Cement Concrete Block Mold Machine :1). Automatic block production lines, includees a cluster cars, steam curing cellar of block production line , are of high degree of automation .It can bring the fully-automated production process of batch charging, stir forming , transmission and curing, palletizing and packing into practice.
2). our machine have passed Europe CE and ISO9001 standard. we use Germany SIEMENS motors, Japanese MITSUBISHI PLC control system
3).Use three same size oil cylinder, will work at the same time, to insure the same density and high
quality of the blocks.
4).Use 360°revoling method to make the material more uniform.
5).Use the heat treatment technial to deal with the mould,so the useful life of the mould is more
longer.
6).Install the cooling pump to cool down the oil ,so to insure the normal work of the Hydraulic
System.

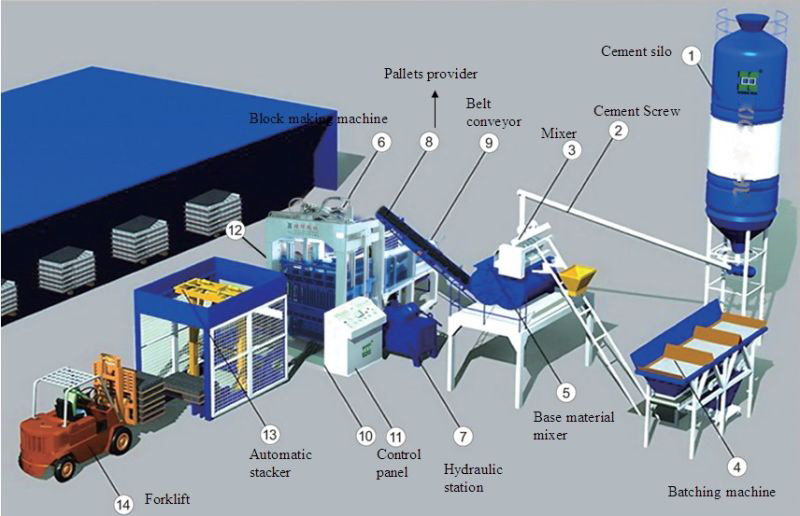

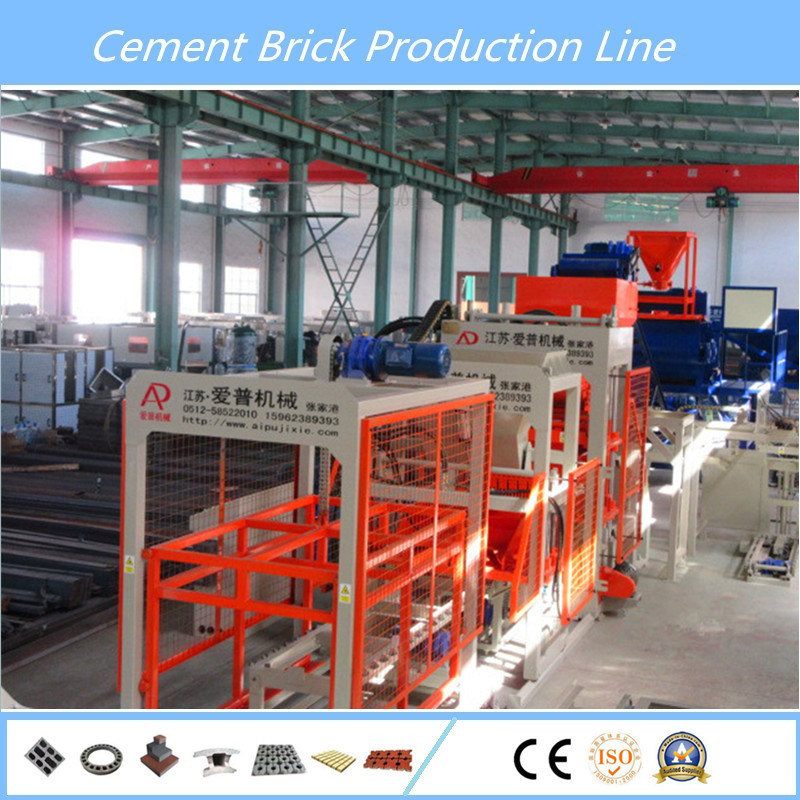

7).Install the waste recycling tank,could reduce the waste of materials.Simple Brick Production Line

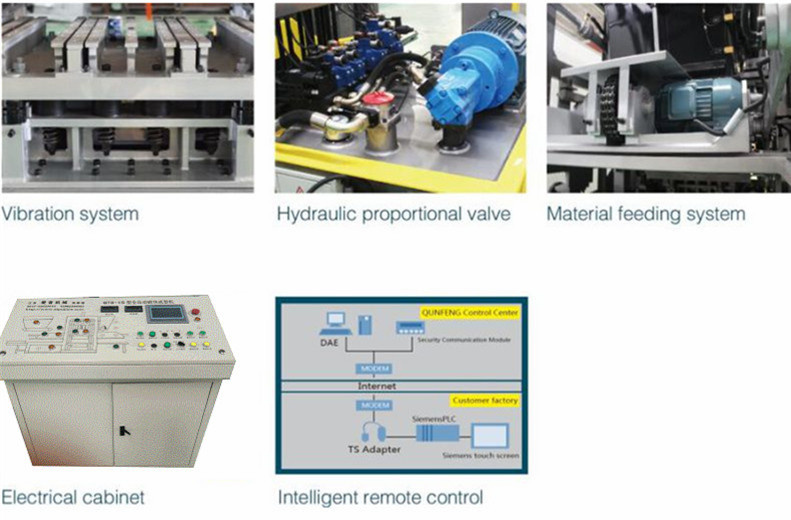

More Details

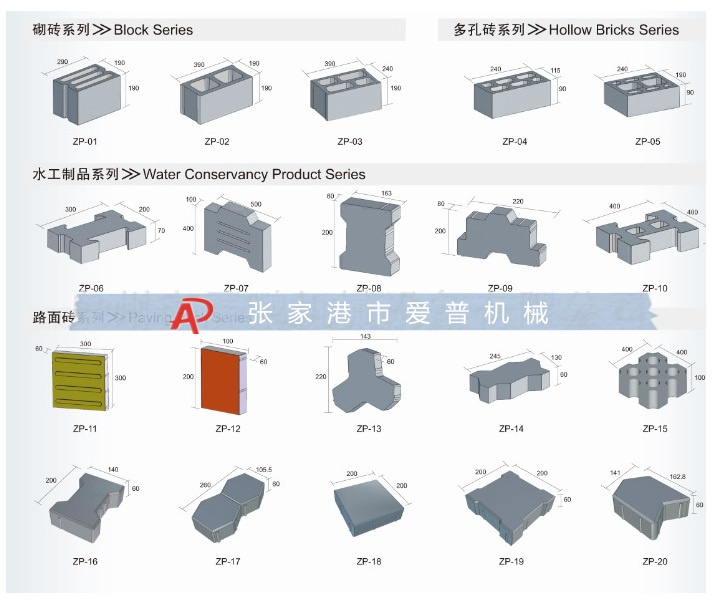

Samples & Product Show
FAQ1.Q: Can this machine make my block?
A: We will design suitable molds according to customers' drawing/picture of blocks.
2.Q: What is your payment term?
A: T/T,L/C, Escrow or others.
3.Q: what is your delivery time?
A: Normally with delivery time within 15 days after deposit.
4.Q: What is your minimum order quantity?
A: one set.
5.Q: How about your packing and shipping?
A: Suitable for shipping, usually 20/40 feet container.We are professional clay brick logo brick machine, concrete block machine and block pallet manufacturer, if you are interested, please come here.
Jiangsu ATOP Machinery Co., Ltd. is a company with 10 years brick machine experience, which is located in Zhangjiagang City. It is about one and a half hour's drive from shnghai international airport to our factory.
We are specialized in manufacturing all kinds of Burn-free block making machines and AAC(Autoclaved Aerated Concrete) block production line, concrete mixing machine. We exported our products to Indonesia, Malaysia, Myanmar, Vietnam and Africa. We can cooperate with you with our best service and quality.
With many technical patents and professional technical level, Our factory is well ahead of the domestic counterparts. Never slack quality, Quality is our culture. We also gained series of quality certifications such as CE, BV etc, And good market feedback. Never delay service, We are always supply customized scheme and offer the site planning and technical training for free. Enjoy lifetime maintenance.
ATOP Machinery Co. Ltd, has always been adhering to the management idea of"Integrity, Innovation, Harmony, Security, Altruism", strive to produce highest quality products, built and completed management and quality control system. With broad domestic and international sales network and excellent after-sales service team, we gain the initiative in the fierce market competition, "ATOP" brand reputation is famous in domestic and international market.
Quality is the core of our company. Advanced inspection equipment and stringent quality control tests make us through ISO9001 certification, and also we have passed the tests of National Building Materials and Mechanical Products Testing Center. Service is the guarantee of company life. Providing the customers with first-class service is our long-term and unchangeable ideas.
It is our unceasing pursuit to commit ourselves to research and develop high-quality, environmental protection and new type building materials
1. Our product has passed CE, ISO9001, BV, SGS, CTC certification.
2. We have after-sales departent in Asia, America, South America, Africa.
3. Engineers will come to you to install the machine and train workers for you.
