Price: | US $ 25000-42000/Set |
---|---|
Min Order: | 1/Set |
Pay Type: | L/C,T/T |
Prod Model: | HT-8G/H |
---|---|
Type Machine: | Rotary Type with 8 Working Station for 60bags/Min |
Machine Name: | Full Automatic Zipper Packing Machine |
Bag Size Range: | Width 70-220mm, Length 80-350mm |
Main Electrical Components: | Siemens PLC/Siemens HMI/Omron/Schneider |
Main Pneumatic Components: | SMC Solenoids & Cylinders |
The Methods For Adjust Bag Width: | PLC Automatic Adjust Bag Width |
Cam Design: | Internal Grooved Cam Design |
Bag Cabinet Type: | Horizontal Infeed Belt |
The Methods For Lubrication: | Automatic Lubrication System |
The Methods For Guarding: | Automatic Detection/Glass Door Alarm |
Automatic Grade: | Automatic |
Application: | Salt,Sugar,Nuts,Rice,Beans,Granule |
Driven Type: | Mechanical |
Material Type: | Solid |
Packaging Material: | Composite Materials |
Packaging Type: | Bags |

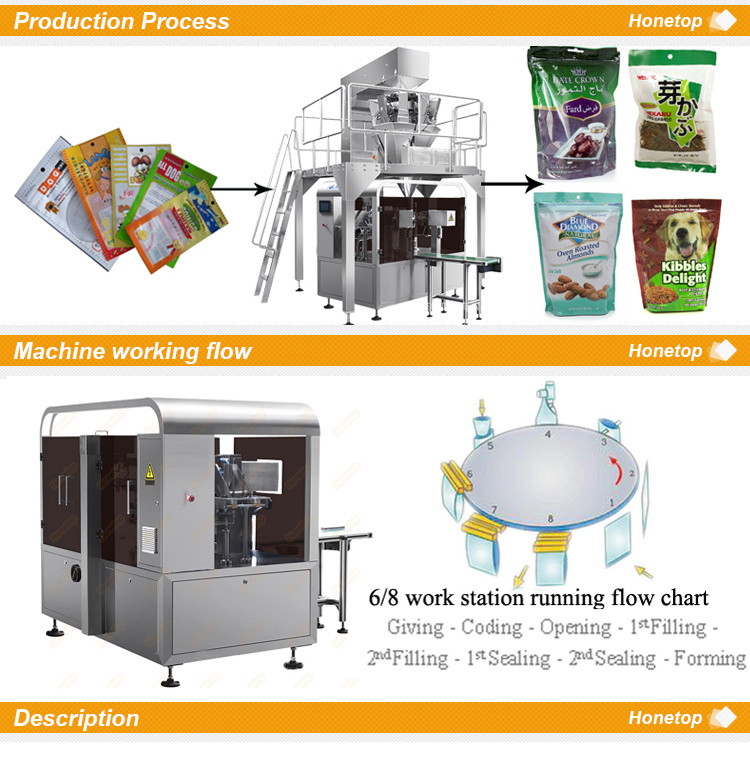

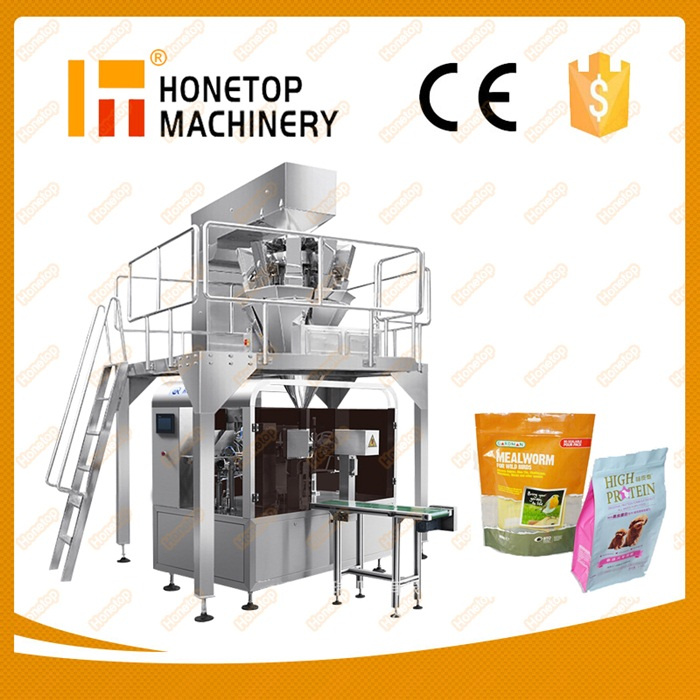

Full Automatic Zipper Packing Machine (Premade Pouch)
It's newest technology bagging machine with max. packing speed: 60 bags/min.
Bagging Machine + Multi-head scale + Z type Elevator with Bucket + Platform:
It suits for packing all kinds of grains and solids: Frozen dumpling, meat, dates, candy, nuts, pet food, tobacco, raisins, seeds, cereal, fruit, potato chips, chocolate, bread, biscuits, cakes, expanded food and bulk food etc.
Main Electrical Components:
* SIEMENS PLC
* SIEMENS HMI
* OMRON
* SCHNEIDER
Main Pneumatic Components:
* SMC Solenoids & Cylinders
Guarding:
* Glass Door Alarm
* Air Pressure Abnormal
* Automatic detection
Functions:
* Tool-less changeover (pre-close zipper)
* Horizontal infeed belt
* PLC adjust bag width clamping
* Included Vacuum Pump
* Internal grooved cam design
* Newest zipper open device
* Two sealing stations
* Nitrogen gas flush
* Pouch shaker
* Pouch outfeed conveyor
* Stainless Steel shell: SS304
* Date coding
* Air: 0.6m3/min
Main Technical Parameter:
Model | HT-8G/H |
Packing Range(bag size) | Width 80-200mm, Length 80-350mm |
Packing Weight | 5-1500g |
Capacity | 30-60 bag/min (speed depends on filling product &weight) |
Packing Precision | Error<±1% |
Pouch Type | Stand-up bag, Flat bag, paper bag, laminated material etc. |
Total Power | 5 kw |
Compressed Air Consumption | 0.6 m3/min |
Voltage | 3 Phase 380V 50Hz/60Hz |
Machine Dimensions | (L)4255*(W)1800*(H)3700mm |
Machine Weight | 2370 kg |
Note: | 1. According to the customer request, provides the special design. 2. The machine disposition may make the choice. |

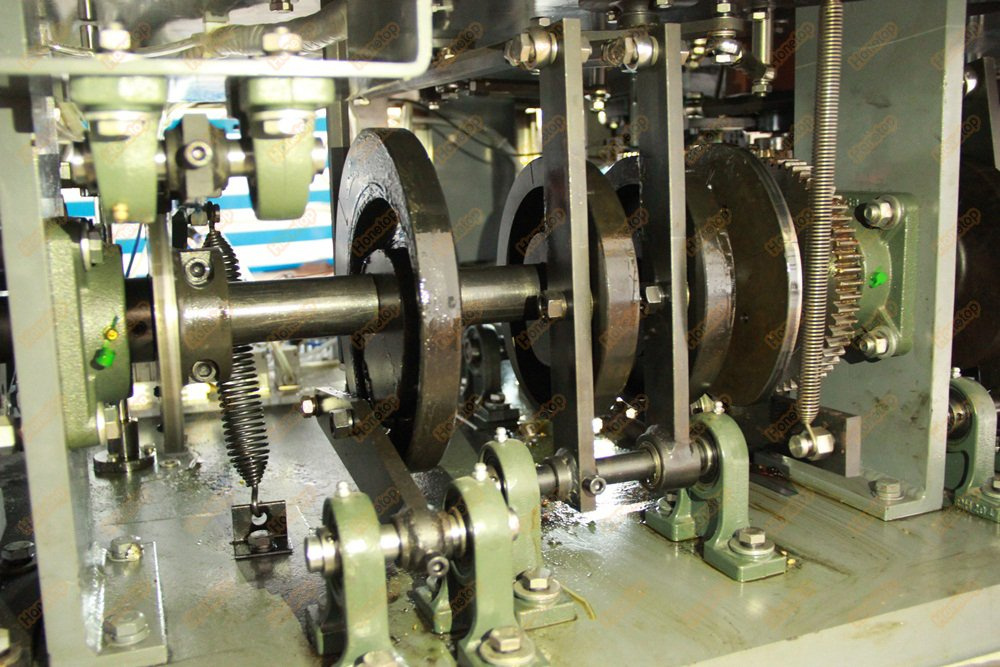

* Internal grooved cam design
