Fully Computerized Woman and Man's Sweater Machine
| Price: |
US $ 8000-20000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |

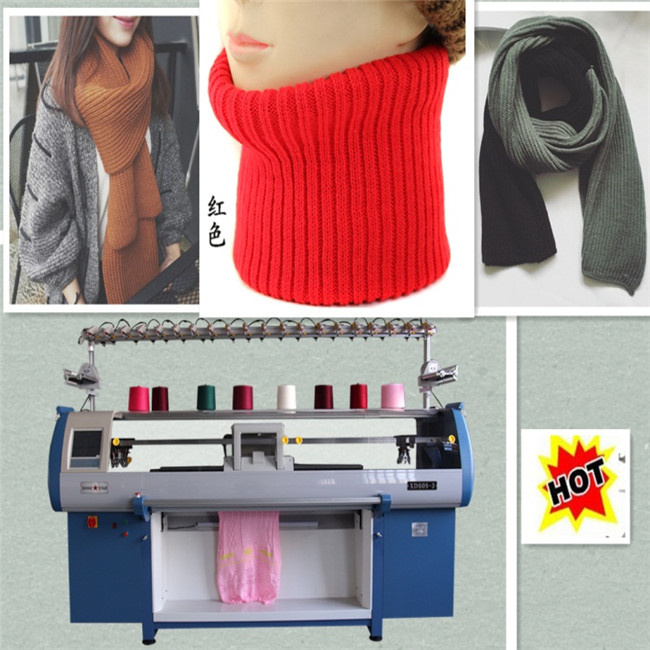

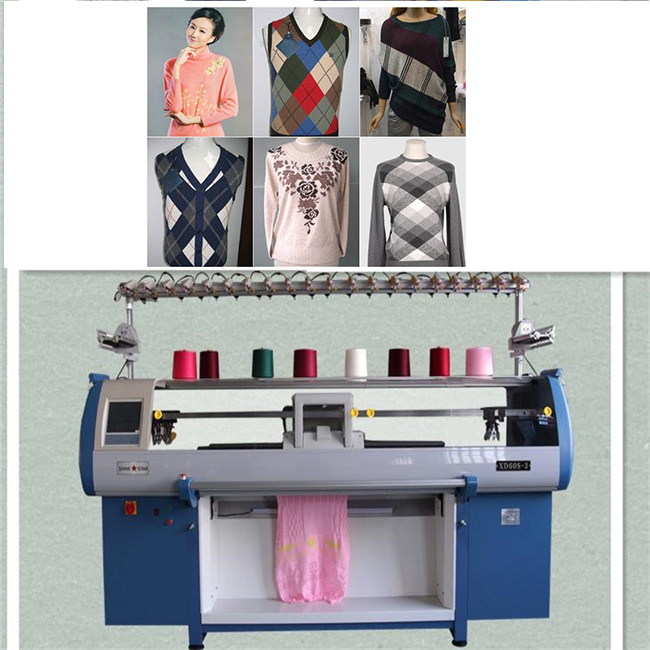

Fully computerized woman and man's sweater machine
Main Characteristic :Single Carriage with double cam system , this S-Series computerized flat knitting machine are used digital technology to achieve the patterns of knit ,transfer , tuck , pointel , intarsia , jacquard ,apparent shape, hidden shape , and other regular or irregular patterns knitting functions , can knit basic single or double jersey plain fabric , irregular multi-color jacquard , intarsia , cable and pointel structure patterns , which suitable to knit by yarns of pure silk ,mixed silk , synthetic , wool ,acrylic ,mixed fiber material etc. knitted for shaping fabric and accessories of collar , cardigan ,rib, cuff, scarf ,pocket and trousers etc.MAIN PARAMETER| Gauge | 2.5G ,3G ,5G, 7G, 8G ,9G ,10G ,12G, 14G, MULTI GAUGE 3-5-7G |
| Knitting width | 52,56 ,60(inches) |
| Knitting function | Knit ,miss,tuck,transfer, pointel, intarsia,jacquard,hide,or apparent shaping and other regular or irregular patterns. |
| Knitting speed | Controlled by servo motor, 24 sections speed optional, max 1.2M/S.varies according to gauge and knitting condition . |
| Knitting system | Single carriage with double system |
| Needle bed | Replaceable segment needle bed |
| Take down roller | Programmed instruction,controlled by marching motor, changeable 24 levels and selectable scope: 0-99. |
| Transfer | Combined cam box single or double system can work independently and one system can transfer the stitch While the other system keeps knitting. |
| Racking | Controlled by servo motor racking within 2 inches and with fine adjusting function. |
| Protection | The machine will automatically alarm if yarn-breaking knots floating yarn rewind end of knitting, fail of racking needle breakage error programming occur. |
| Stitch system | Controlled by stepping motor, 24 section stitch selectable, adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled. |
| Encoder | Advanced encoder adopted. |
| Yam carrier | 2×8 Yarn carriers on each side of 4 guide rails, shiftable on any needle position(special instarsia carriers available). |
| Sinker system | Controlled by stepping motor, adjustable to different knitwear, have various results of shaping and patterns. |
| Power | Singe-phase 220V, adopts advanced CMOS technology, having memorizing function at power shock stop. |

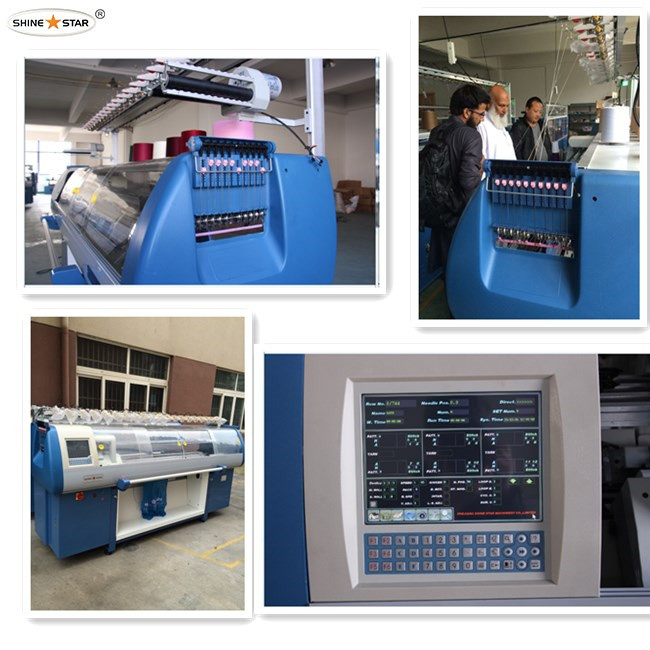

| Controller | 1. Screen:Adopt LCD industrial screen and figure interface,input device:USB. Internal storage 32M.The latest system 1G. A great amount of design files can be stored at the same time and they can be fetched out for using at any time as per production requirements. |
| 2. Monitoring menu,each kind of operating parameter can be shown, and they can be adjusted at any time when the machine is running is visual and easy to understand and upgrade. |
| 3. Free design is visual and easy to understand and upgrade |
4.Multi language version :there are Chinese .English and Arabic etc. languages version ,the other language version set up shall according to customers requirement .
|
| Volume and weight | Length×width×height: 2790×1100×1500mm Net weight :1280kg |
| Prod Model: |
XD52S-2 |
| Product Name: |
Fully Computerized Woman and Man's Sweater Machine |
| Gauge: |
2.5g,3G,5g,7g,8g,9g,10g,12g,14G,16g |
| Knitting Width: |
52 Inches , 56 Inches |
| Knitting Speed: |
Control by Servo Motor , Max 1.2m/S |
| Needle Bed: |
Replaceable Segment Needle Bed |
| Stitch System: |
24 Section Stitch Selectable |
| Yarn Carrier: |
2X8 Yarn Carrier |
| Type: |
Jacquard |
| Knitting Product Type: |
Sweater |
| Knitting Style: |
Flat |
| Knitting Method: |
Double |
| Computerized: |
Computerized |
| Certification: |
CE |
| Condition: |
New |
Hefei Opek Machinery Co., Ltd. is a professional company which produce OPEK brand high speed fully jacquard computerized hat & scarf knitting machine, we already successfully exported to more than 30 countries, such as European countries, like France, Italy, Spain, Germany, UK and other Asian countries, like Russia, India, Bangladesh and so on, we also have sold to other African countries, such as South Africa, Egypt. South American countries, like Brazil, Colombia, Ecuador, Peru. North American countries, such as USA, Canada and Mexico.
We have professional workshop of CNC, with high precision lathes, milling machines Division and professional for spare parts manufacturing, in order to ensure and control
Quality and standards of accessories. We own trained team of R & D, and with domestic and international after-sale service system. With the domestic market has a relatively complete and scientific quality management system. With the recent rapid development of domestic and international textiles knitting market, all our team members have firm confidence and ideas towards a more wider domestic and international markets.
Our company culture always is "quality first, customer foremost, win-win cooperation and together development", we always make innovation and R & D as a driving force for us and we will continue to develop high-quality, high value-added product, offering you OPEK team good faith, we sincerely welcome new and old customers Visit!
Opek Machinery Co. Ltd mainly products are
High speed fully computerized jacquard cap & scarf knitting machine
OPEK202A
OPEK365
OPEK365(7GG)
COLLAR KNITTING MACHINE
FLAT SWEATER KNITTING MACHINE.
Web site www.opek-textiles.com
