Price: | US $ 800/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,Western Union,Paypal |

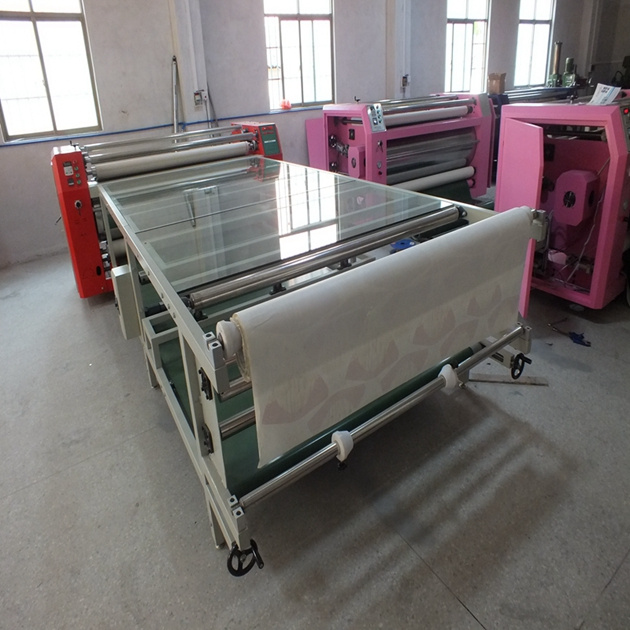

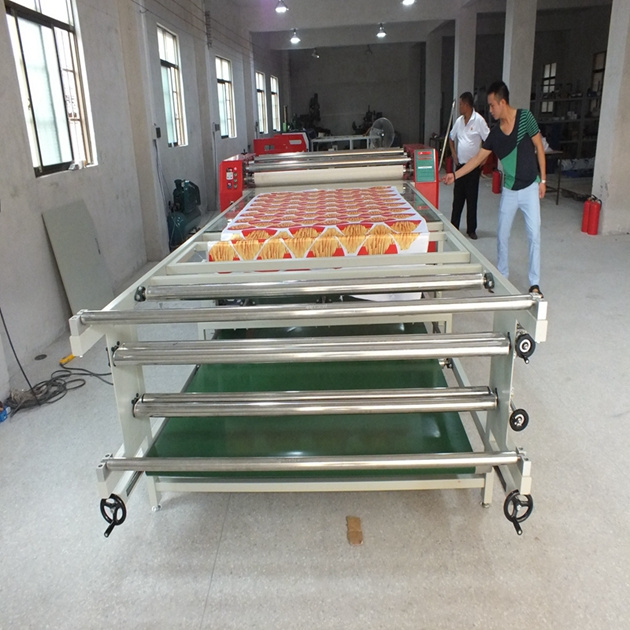

FY-RHTM480*1700 roll to roll oil heat drum sublimation printing machine for fabric heat printing
Specification:
Item No.: FY-RHTM480*1700 |
Electric Requirements:50HZ380V or customized |
Power:38KW |
Heated model:Oil heating system |
Adjustable temper ranges:0---399° |
Working temper:220°----260° |
Heating System:Digital adjustable temper control |
Automatic system:frequency motor to control the speed |
Production:100-150m/hour |
Diameter Of Heating Drum:480MM |
Length Of Heating Drum:1800MM |
Width Of Blanket:1780MM |
Working Table Length:2.4m/3.5m(customized length is ok) |
Packing size:2500mm*1160mm*1560mm |
Net weight:1700kgs |
Gross Weight:1800kgs |
Features:
1, the machine uses genuine original electrical accessories, temperature control precision, long life
2, the use of heating oil heating, uniform heating
3, digital temperature and speed control, adjustable speed
4, three meters long machine with double bench, with the underlying conveyor belt, enabling customers to transfer class pieces pieces
5, the machine with a pressurized system to meet the different requirements of different products to pressure
6, the use of imported heating pipes, heat evenly, durable, imported blankets, blankets difficult deviation
7, the machine is out of style blankets, blankets difficult to burn, with three put two closing means to facilitate customers retractable products
Applications:
1 . What is the warranty of your items ?
we supply one year warranty for our machine, If any quality problems on our side occured in this period ,we will take on the replacement.
2.What is packaging for Heat press Items ?
Compact Foam and Carton to pretect machine from any damages.
3 . What other equipment needed to print a T-shirt/Clothes ?
Apart from our heat press , you still need Inkjet printer, sublimation paper and sublimation ink to print your artwork. 1. printer, sublimation paper, sub ink, thermal tape and blank tshirt or sub Mug etc.
4 . How to print vinyl onto T-shirt ?
Design your artwork and cut vinyls by cutting plotter , then put artwork vinyl and cover it with teflon sheet onto heat press and start it ,finally get out t-shirt and peal off the foil after heating time reaches.
5 . How to Print a Tshirt or Mug ?
1). Design your photo/Logo and Edit by your Photoshop.
2). Print it out onto inkjet paper by inkjet photo printer with sublimation ink
3). cut printed paper and stick onto the Tshirt / mug surface by thermal tape.
4). Put it into heat press machine and Set temperature and time moderately (i.e. 180 degrees and 180 seconds)
5). when time reaches, Tear off the image paper after getting mug out from heat press
6). Beatiful gift appears in front of you
Printing Plate: | Heat Transfer Printing |
---|---|
Temp Range: | 0-399 |
Power: | 15-42kw |
Weight: | 1000-2600kg |
Diameter Of Drum: | 480mm |
Length Of Drum: | 1700mm |
Length Of Working Table: | 2.5m/4m |
Blanket: | DuPont Material |
Thermal Oil: | Mobil |
Certificate: | Ce |
Type: | Pin-on |
Structure: | Flat-Bed Cylinder Press |
Color & Page: | Multi-Colour Printing Press |
Plate: | Heat Transfer Printing, Digital Format Printing |
Printing Speed: | 3-8m/Min |
