Galvanized Welded Wire Mesh Fabric China SupplyHole Shape: Square Mesh Size: Customized
Weave Technique: Welded Color: White ,Green
Type: Welded Mesh Certification: ISO9001
Aperture:1"-8" Condition: New
Other Aperture:1/4",1/3′′ ,1/2′′ , 2/3 Wire Gauge: 0.5-12mm
Technique: Welded Export Markets: Global
Width: 0.5-1.8m and as your requirement
Length: 30m and as your requirement
Surface Treatment: Hot dipped galvanizing after weaving
Weaving with hot dipped galvanized iron wire
Electric galvanizing after weaving
Weaving with electric galvanized iron wire
PVC coated welded wire mesh
Application: Construction Wire Mesh, Protecting Mesh, Cages, Decorative Mesh, Sieving Mesh, Filter

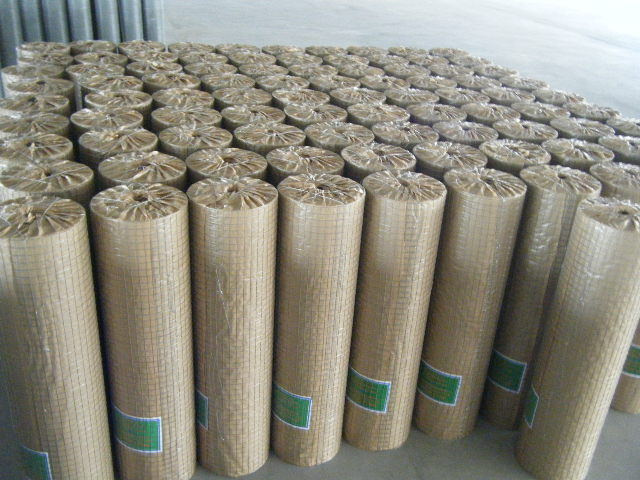

Packing: Welded wire mesh in panel: are wraped with the shrinked plastic bag then packedin the pallets
Welded wire mesh in rolI:are by water proof paper then shrinked plasticbag as our negotiation.
Special packing is ok as your request.
Production Capacity:1500Rolls/Day
Delivery: within 10-20 days
Payment Terms:
1.) T/T
2.) L/C
3.) Paypal
4.) Western Uion
We have free sample,if you want to know the quality,just tell us.
Product DescriptionWe supply welded wire mesh electro galvanized or hot dipped galvanized.
In the forms of rolls or panels, for construction, fences and other industrial uses.
MetarialLow carbon steel wire, stainless steel wire, rebar wire
Welded Wire Mesh Variety:
Hot dipped galvanized after welding welded wire mesh;
Hot dipped galvanized before welding welded wire mesh;
Electro galvanized before welding welded wire mesh;
Galvanized welded wire mesh panel;
PVC coated welded wire mesh panel;
Powder painted welded wire mesh panel;
Black welded wire mesh panel,
Steel bar welded wire mesh;
welded wire mesh /panels sizes: | opening | opening | wire diameter (BWG) |
1/4" x 1/4" |
6.4mm x 6.4mm |
22,23,24 |
3/8" x 3/8" |
10.6mm x 10.6mm |
19,20,21,22 |
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21,22,23 |
5/8" x 5/8" |
16mm x 16mm |
18,19,20,21 |
3/4" x 3/4" |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
1" x 1/2" |
25.4mm x 12.7mm |
16,17,18,19,20,21 |
1-1/2" x 1-1/2" |
38mm x 38mm |
14,15,16,17,18,19 |
1" x 2" |
25.4mm x 50.8mm |
14,15,16 |
2" x 2" |
50.8mm x 50.8mm |
12,13,14,15,16 |
| | | |
Galvanized welded wire mesh/welded wire mesh panel | opening | opening | wire diameter (BWG) |
| in inch | in metric unit | |
2" x 3" |
50mm x 75mm |
2.0mm,2.5mm,1.65mm |
3" x 3" |
75mm x 75mm |
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2" x 4" |
50mm x 100mm |
2.11mm,2.5mm |
4" x 4" |
100mm x 100mm |
2.0mm,2.5mm |
PVC coated welded wire mesh/welded mesh panels | opening | opening | wire diameter (BWG) |
| in inch | in metric unit (mm) | |
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21 |
3/4" x 3/4" |
19mm x 19mm |
16,17,18,19,20,21 |
1" x 1" |
25.4mm x 25.4mm |
15,16,17,18,19,20 |
steel bar welded wire mesh/ rebar welded wire mesh panle
welded wire mesh panels can produce to steel bar welded wire mesh, rebar welded mesh panels.
Wire diameter for welded steel bar panels ranges from 5mm to 16mm.
Welded bar mesh panels opening: 75mm to 300mm.
Panel length: 100cm to 1400cm.
Panel width: 100cm to 200cm.
Buying Guides1, pls advice the size of welded wire mesh you requests; (in rolls or panel)
wire dia, mesh size, width, length, surface treatment.
2, If you are not clear about the size, pls advice your application for a suggestion, pls contact with me.
