Qingdao Protech Rubber&Plastic Co.,Ltd can manufacture self-fusing silicone tape per your requirements
| General Specifications |

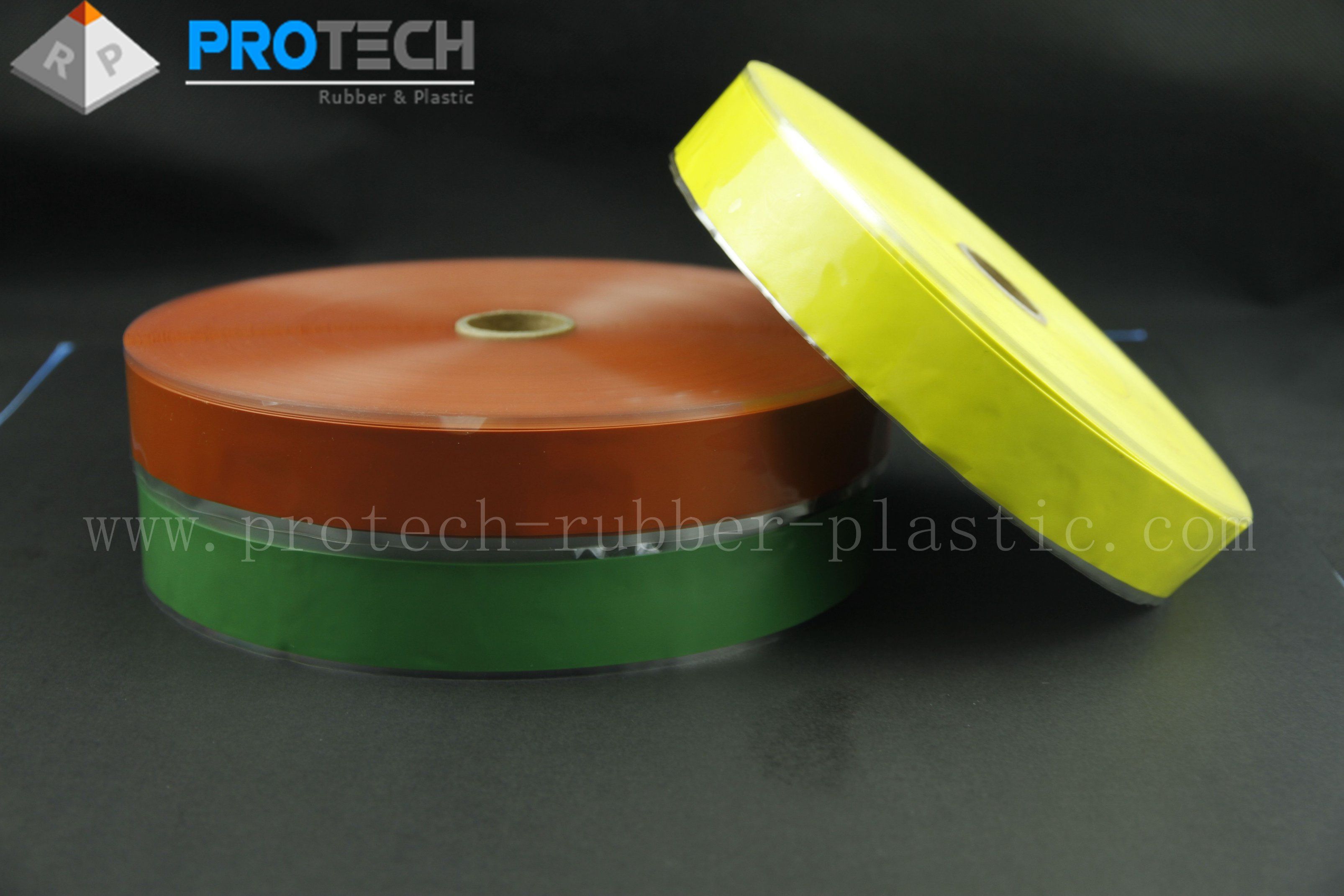

| ITEM | Silicone Rubber Self-fusing Adhesive Tape |
| material | silicone rubber |
| type | Insulation Tape |
| thickness | 0.3mm~2.5mm |
| Width | 20mm, 25mm, 50mm |
| Length | 2.5m, 3m, 5m, 10m |
| Color | Yellow, Black, Red, Bule, Grey, Tranparent,Gree, White or others |
| Temp Range | -60C°~ 250 C° |
| feature | Strong Adhesion/ self-melting |
| usage | rescue, repair and protect |
| Technical data | | |
| Performance | Typical data | Test Method |
| Hardness | 50A | ASTM D2240 |
| tensile strength | 8MPa | ASTM D412 |
| Elongation | 500% | ASTM D412 |
| Self adhesive strength | 6.3N/cm | ASTM D412 |
| Dielectric strength | 35KV/mm | |
| breakdown voltage | 9.5KV/0.5mm | ASTM D149 |
| Water resistance | 720hr without loosening | Water immersion at 25 degrees centigrade |
| Thickness | 0.5mm | ASTM D1000-76 |
| Fusion | Pass | |
| UV Resistance | Pass | ASTM D 4388 |
| Ozone Resistance | Pass | ASTM D 4388 |
| Xenon-arc exposure@1008h | Pass | ASTM D 4388 |
| | • Automotive repair |
| | • Jacketing high voltage terminations |
| | • Motor lead insulation |
| | • Boat rigging wrapping |
| | • Flexible heater repair |
| | • Extension cord "connection" wrapping |
| | • Heavy duty industrial pipe wrapping |
| | • Tool handle wrappingr for a great non-slip grip |
| Applications | • "Final wrap" for Electrical distribution connections |
| | • Power & hand toll insulation |
| | • Underwater uses |
| | • Emergency radiator hose repairs; emergency insulating&barrier tape |
| | • Fishing industry uses |
| | • Military applications |
| | • Insulating generator coils |
| | • Temporary hose repairs |
| | • Harness wrapping: automotive, aircraft, protective |

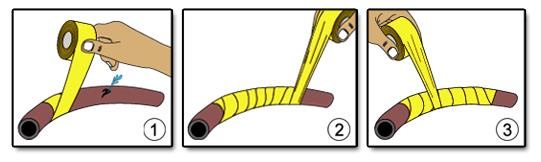

Usage methodAppropriate stretch tape, 1/2 forward lap winding, forming extrusion effect, the start and end positions need a completely overlap wrapping ring.
Qingdao Protech Rubber&Plastic Co. Ltd was founded in 1985, in Qingdao City, Shandong Province, China. Our main products are custom rubber and plastic parts which for varous industres Protech has 14sets vulcanizing machines, and 15set plastic injection machines from 50Tons to 1800tons. And 12 production lines for rubber and plastic extrusions. These support to provide the rubber plastic seals, o rings, rubber plastic covers, custom rubber plastic parts and rubber plastic extruded seals etc.
The materials are rubber and plastic, Like NBR, SBR, NR, Silicone, EPDM, Viton, PP, PS, ABS, PC and so on from various durometers. Also the foam rubber and plastic materials.
