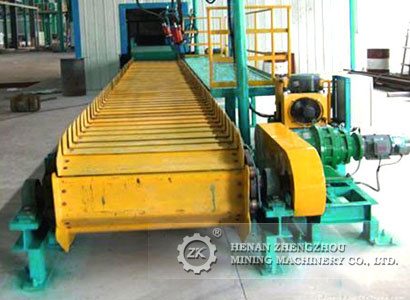

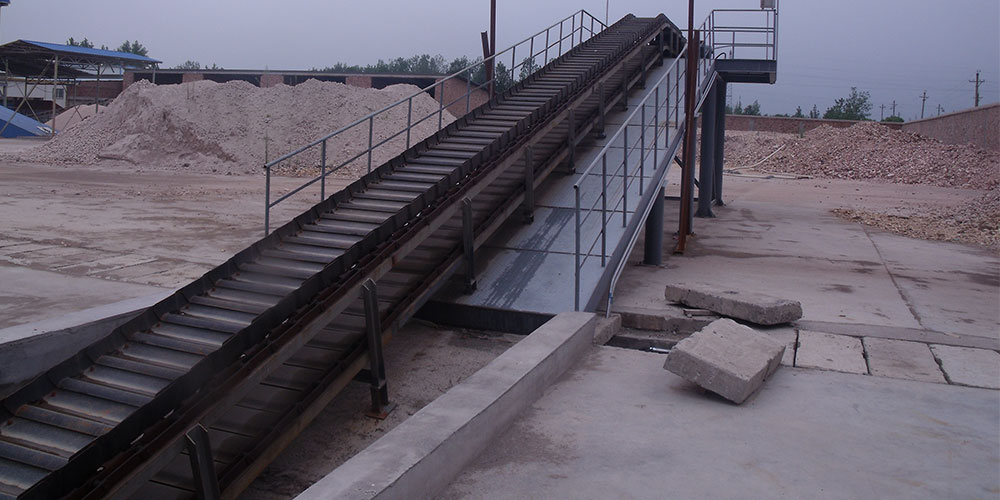

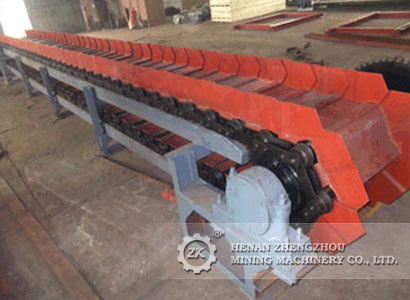

Application:Apron Feeder is ideal for feeding rock, stone, big ore and so on.Features and Advantages:1. Apron bucket made by wear-resistant steel plate with high precision, the cumulative error is small, running accurate, stable and reliable;
2. Adaptable, can transport material with bigger size & sharp edges & high temperature. In the transportation process the conveyor will complete material cooling and cleaning at the same time.
3. With chain transmission, apron conveyor has advantage of high intensity, high efficiency, reliable operation, heavy load, suite for long-distance transportation;
4. The chain has heavy load, high strength and high impact resistance because of heat treatment; chain plate joint sleeve use alloy steel carburizing with high abrasion resistance;
Technology Specifications: Model | Chain plate | Speed (m/s) | Feed size (m3/h) | Capacity (m3/h) | Power (kw) | External dimensions(L*W*H)
mm×mm×mm | Weight (kg) |
Width (mm) | Length (mm) |
GBQ50-6 | 500 | 6000 | 0.16 | ≤160 | 60 | 7.5 | 7476×2745×980 | 3894 |
GBQ50-9.5 | 9500 | 10976×2720×980 | 5048 |
GBQ50-12 | 12800 | 0.1 | 41 | 14276×2796×980 | 6183 |
GBQ50-14 | 14000 | 0.16 | 60 | 11 | 15476×2826×980 | 7315 |
GBQ80-6 | 800 | 6000 | 107 | 7.5 | 7476×3045×980 | 4274 |
GBQ80-10 | 10000 | 11476×3045×980 | 5832 |
GBQ80-12 | 12000 | 11 | 13476×3126×980 | 6556 |

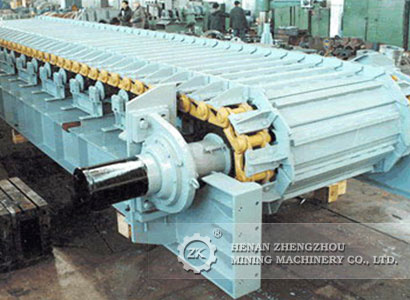

Working Principle of Apron feeder:The working process is that the chain equipped serial plates is driven by the chain wheel. While the chain wheel is driven by the electric motor and reducer, the plates will moved so the blocks are fed out.
Our service:Training & ServicePre-sale services: enthusiasmWe provide you with the prophase plan, process flow design and manufacturer equipment,
according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators
and finishing the check and accept together with you.
After-sale services: faithfulnessTo establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory?level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with
you. We will provide you with the most suitable products with the reasonable price.

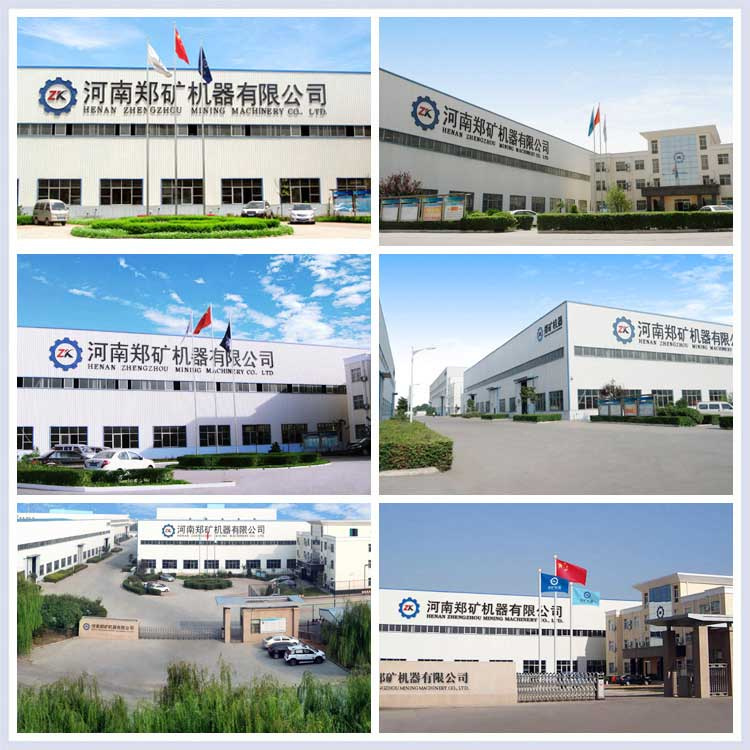

Henan Zhengzhou Mining Machinery Co., Ltd, was established in 1956 and located in Xingyang of Zhengzhou City of Henan Province, specially produces metallurgical machinery. It covers an area of more than 55000m2 and various building area of 28000 m2. It has the annual income of more than RMB180million in 2008 and now the fixed assets of over RMB80 million. In the plant, there are branches and workshops of cast iron, cast steel, forging, heavy machine tool processing, rivet welding and heat treatment etc. Its perfect and complete equipment, advanced detection means, strong technical force establish good foundation for the reliable production.
Main products include: Jaw style, hammer style, impact style and roll style crusher; Ball mill, direct fired drier, rotary kiln, preheater, coker, magnetic separator, flotation machine, classifier, feeder, hoisting machine and conveyor etc. These complete sets of machinery for cement building material, metallurgy, coking and chemical smelting etc are sold well in the world. Our company also has professional installation and construction teams and perfect after-sales service guaranty system.
With the development of the People's Republic of China, Henan Zhengzhou Mining Machinery Co., Ltd undergoes frequent difficulties and has accomplished over 50 years' brilliant history. Initially from the manufacturing of original single machine till today's series of and complete sets of mining metallurgical machinery, it has made great contribution to the development and utilization of mineral resources of our country. For many years, each spot check and annual examination carried by National Mining Machinery Quality Supervision and Inspection Center for our products is acceptable and our company is always appointed as Credible and Reputed Enterprise by Henan Provincial Administration of Industry and Commerce.
Henan Zhengzhou Mining Machinery Co., Ltd will continue providing excellent products and service for our society, with the guideline of "survival by quality, development by good faith, users supreme". Our company would make sincere cooperation with all circles for mutual benefit and common development.
