| Price: | US $ 500000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | 1500 |
|---|---|
| Processing: | Brick Production Line |
| Product: | Concrete |
| Brick Raw Material: | Concrete |
| Automation: | Automatic |
| Condition: | New |
Welcome to ZENITH
Established in 1953, ZENITH Maschinenfabrik GmbH (called ZENITH for short) is Germany-based concrete block machine manufacturer. Over the last 6 decades, ZENITH focuses on the R&D of non-pallet block producing technology and today ZENITH has become the worldwide leader in non-pallet block machine manufacturer. Our products include: Mobile Multilayer Machines, Mobile Single Pallet Machines, Stationary Multilayer Machines and Stationary Fully Automatic Production Line. Due to the highest quality and first class performance, more than 7,000 ZENITH customers all over the world will continuously benefit from ZENITH's expertise and know-how day after day, for more than 60 years.
In July of 2014, ZENITH Maschinenfabrik GmbH was acquired by Quangong Machinery (called QGM for short) and became the member of QGM Group. QGM Group is able to provide a wide range of products to our users, from simple automatic production line to fully automatic production line, from middle class to high class.

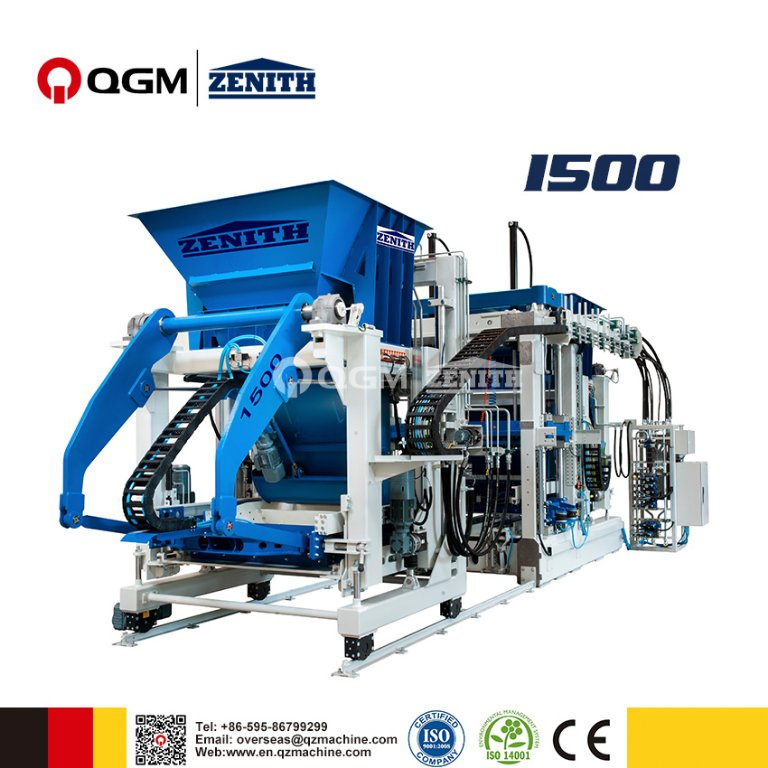

ZENITH 1500 Fully Automatic Block Making Machine

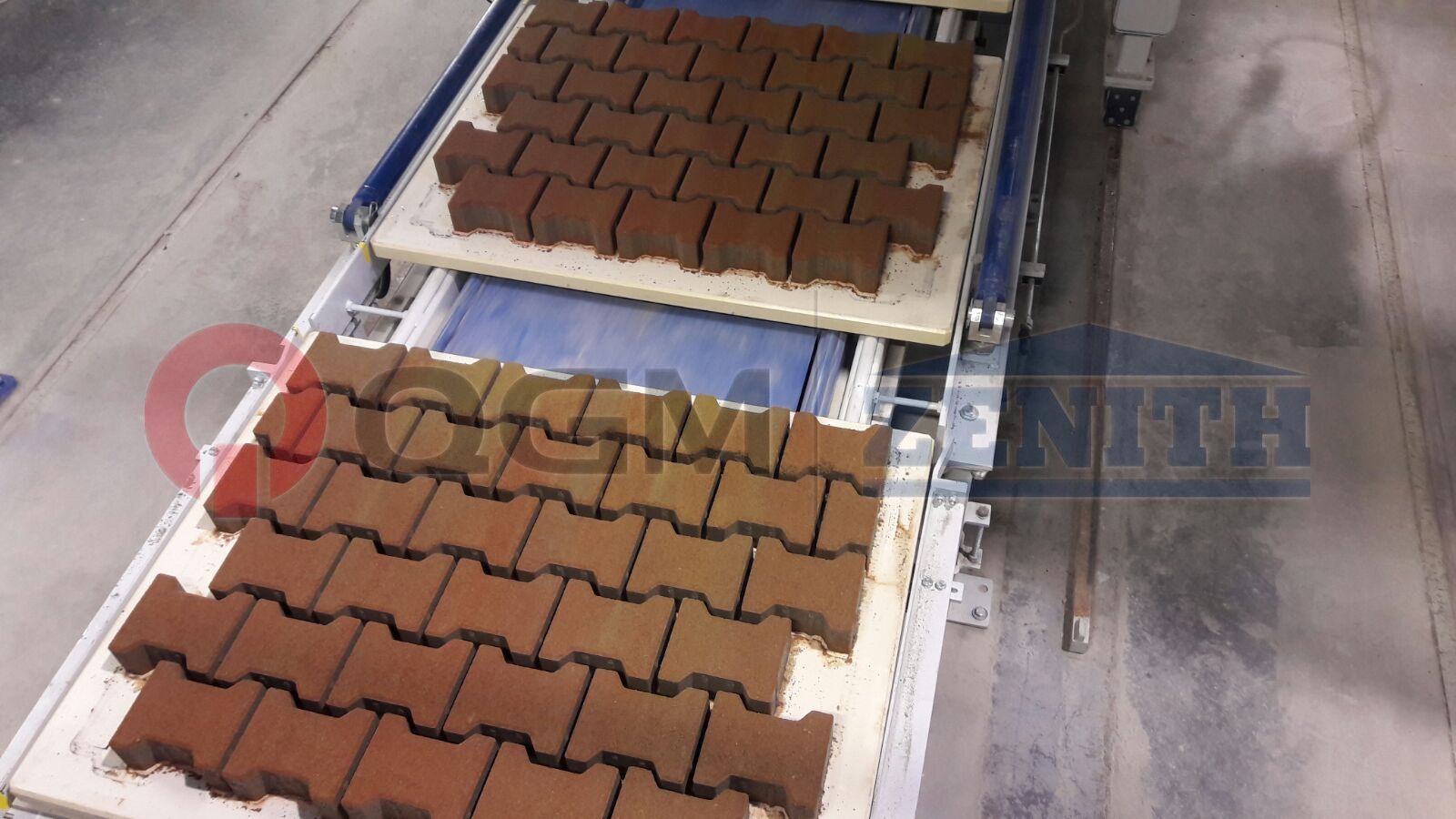

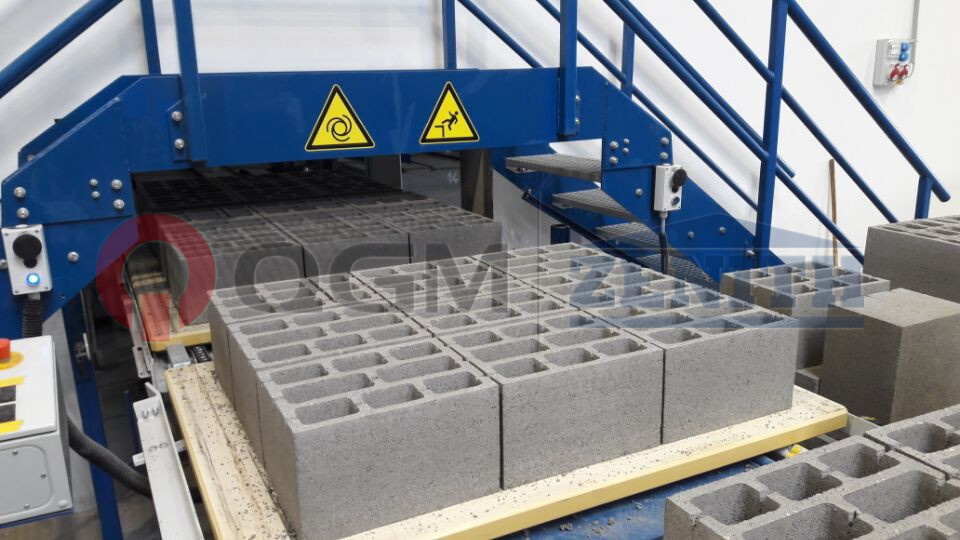

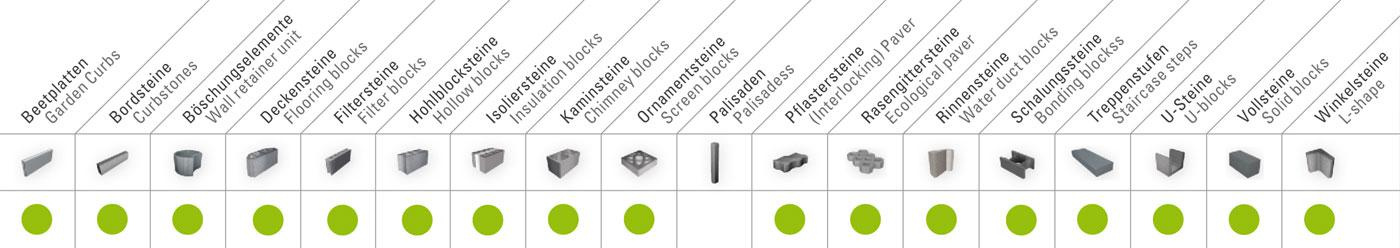

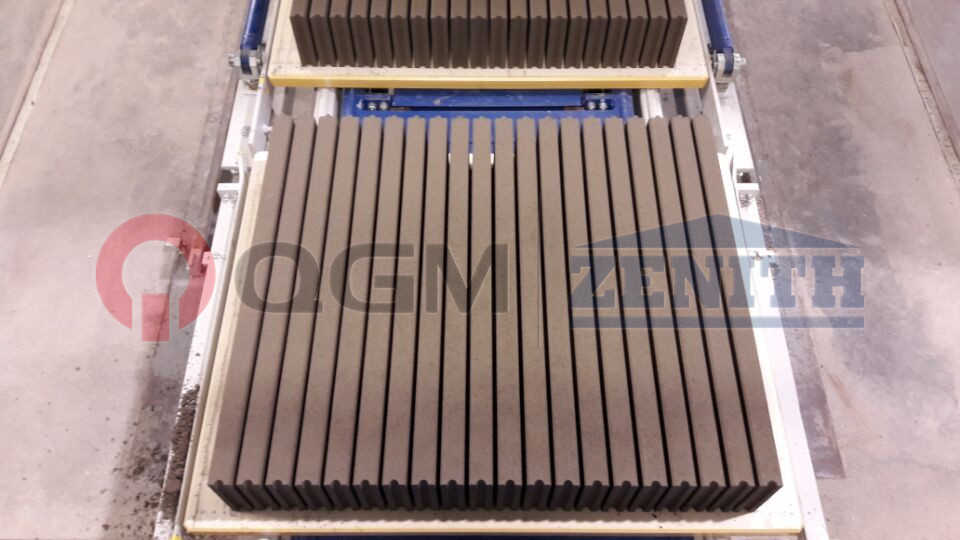

The newly designed high-performance single pallet machine 1500 forms the centrepiece of a state-of-the-art and efficiently working concrete block production. The wide range of production possibilities meets all customer requirements. The 1500 comprises the production of niche products, gardening and landscaping products as well as pavers, kerbstones and bricks.
In addition to a high quality and productivity, our engineers put special focus on guaranteeing a low-maintenance and trouble-free production process. Owing to the continuous use of screw fittings, all wear parts can be easily exchanged within shortest time. Based on the screwable design of the vibration table, the motor cross beam and the frame side parts, this machine is unique on the market as it adapts to the customer's production conditions.
An automatic quick change system for moulds, various Colormix equipment and other special equipment as well tamper head cleaning devices complete our delivery programme.
Moreover, the plant is equipped with a revolutionary control and diagnostic system which provides an all-round support for the machine operator and therefore always guarantees an efficient production.
Concrete Products Machine, Basic Part, Type ZENITH 1500, operated with steel pallets
| Max. board size | 1400 mm x 1200 mm x14 mm |
| Working area | As per layout drawing |
| Product height | 50 mm - 500 mm |
| Maximum load capacity | 15.000 kg |
| Per insertion rack maximum load capacity | As per design |
| Every two layers insertion rack | As per design |
| Support bracket inside width | 1,060 mm |
| Layers of insertion rack | As per project design |
| Distinction of insertion rack | As per design |
| Mother car driving power | SEW 11 kW |
Maximum load capacity: 15.000 kg
Per insertion rack maximum load capacity: As per design
Every two layers insertion rack: As per design
Support bracket inside width: 1,060 mm
Layers of insertion rack: As per project design
Distinction of insertion rack: As per design
Mother car driving power: SEW 11 kW
