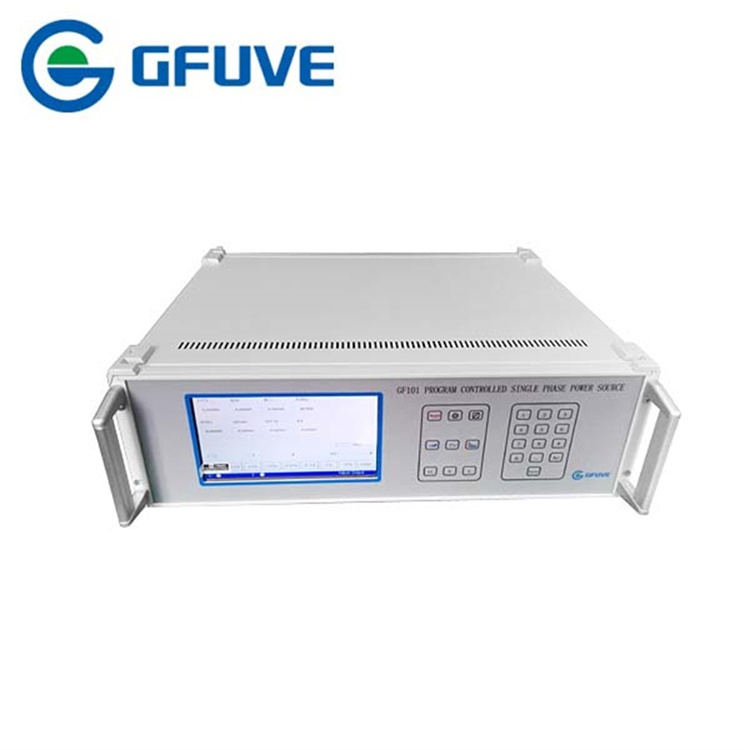

GF101 Program-Controlled Single-Phase Standard Power Source

Prod Model:	GF101
GF101:	Single-Phase Standard Power Source
Accuracy Class:	0.05%, 0.1%
Range Of Voltage:	Max 500V
Weight (Kg):	12
Operating Temperature:	-30°c to 60°c
Relative Humidity:	≤ 85%
Current Range:	Max 120A
Load Capacity:	40va
Phase:	0°-360°
Application:	Electromagnetic Instrument
Voltage Output:	0-500V
Current Output:	0-120A

Product Description

PRODUCT INTRODUCTION
GF101 Program-controlled single phase phantom load power source
It is suitable for power department, measuring department, quality control department, research units, institution of higher learning, electric energy meter, power distribution terminals, power supply management, load control, power quality, reactive power compensation device and production of the enterprise and so on. It can be as single phase voltage source, current source and phantom load.
Features
Setting up and taking the load regulation of voltage, current, phase and frequency of the power factor
Amplitude 2nd-128th phase harmonics, and it can be added to the fundamental wave in every harmonic output
A wide range output of voltage and current, big power, high stability, small waveform distortion degree
Strong load ability, taking capacitive load, sensibility load, resistive load or composite load, load regulation is higher than 0.01%
Applying the 32-bit MPU + DSP + FPGA, powerful flexible;
Using hardware PID, fast response, the change of load will not cause volatility output
Power frequency waves reach up to 50000 points a week of the wave kneading, signal output without filter, precise waveform output, precise harmonic output, small harmonic distortion degree
Switching range automatically
Using software calibration, easy to operate, stable and reliable
Big screen, 320 x 240mm LCD display, Chinese or English interface, easy to operate
Perfect over-current, over-voltage, heat, shorts-and-opens, overload protection, automatic failure detection
With RS232 interface and PC connection
Taking place the machine software, it can be output through PC software of the program

Parameters

Electrical parameters
Accuracy class	0.05%, 0.1%
Power supply	Single phase AC 85-265V, 50/60 Hz
AC Voltage output
Range	57.7V / 100 V / 220V / 380V, Switch automatically (max 500V)
Adjustment resolution	0.01%, 0.1%, 1%, 10%,
Accuracy	0.05% RG
Stability	Better than 0.01% RG/1min
Distortion degree	Better than 0.1% (not capacitive load)
Load capacity	40VA
Full load regulation rate	Less than 0.01% RG
Full load regulation time	Less than 1ms
Temperature drift	8 PPM/°C
Long-term stability	60 PPM/year
AC Current output
Range	0.1A / 0.25A / 0.5A / 1A / 5A / 10A / 20A / 50A / 100A, Switch automatically
Adjustment resolution	0.01%, 0.1%, 1%, 10%,
Accuracy	0.05% RG
Stability	Better than 0.01% RG/1min
Distortion degree	Better than 0.1% (not capacitive load)
Load capacity	40VA
Full load regulation rate	Less than 0.01% RG
Full load regulation time	Less than 1mS
Temperature drift	8 PPM/°C
Long-term stability	60 PPM/year
Power output
Active power accuracy	0.05% or 0.1%
Reactive power accuracy	0.1% or 0.2%
Stability	Better than 0.01% RG/1min
Phase
Range	0°-359.99°
Adjustment resolution	0.01°, 0.1°, 1°, 10°
Accuracy	0.03°
Frequency
Range	40-65 Hz
Adjustment resolution	0.001 Hz, 0.01 Hz, 0.1 Hz, 1Hz
Accuracy	0.002 Hz
Temperature drift	0.5 PPM/°C
Long-term stability	4 PPM/year
Harmonic
Harmonic times	2nd-63th
Adjustment resolution	0.1% (Compared with fundamental wave)
Harmonic content (Compared with fundamental wave)
Voltage	≤40%
Current	≤40%
Phase	0°-360°
Mechanical parameters
Dimensions (W×D×H) (mm)	420x320x155
Weight (kg)	12
Environmental conditions
Operating temperature	0°C to 40°C
Storage conditions	-30°C to 60°C
Relative humidity	≤85%
