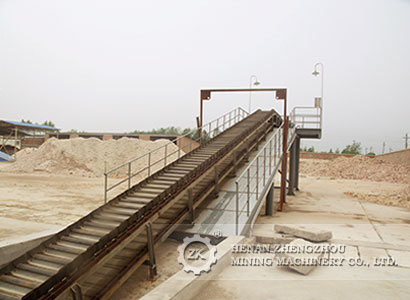

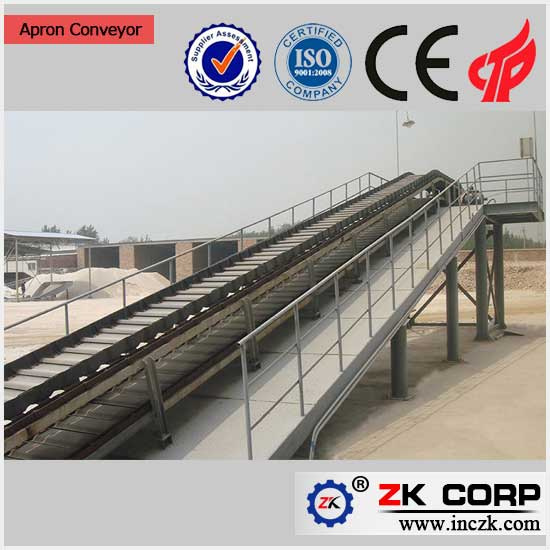

BL series apron conveyor is driving by cycle running chain, that can transport all kinds of bulk materials along horizontal or inclined (inclination angle is less than 25 °) direction. Since the carrying part and running parts are made by metal, thus compared with other continuous conveying machinery, apron conveyor can transport material with bigger bulk density & size, and material with sharp edges with strong abrasion, especially suitable for conveying high temperature( 600 ~ 700 ºC )material. Application:Transporting high temperature material for cement, lime, clinker, mining industry.Output:Model: BL650-BL1000
Apron width: 650-1000(mm)
Chute height: 160-350(mm)
Capacity: 20-200(m³/h)
Technology Parameters Model | Apron width (mm) | Chute height (mm) | Chute | Speed (m/s) | Slope (°) | Capacity m³/h | Chain |
Thickness (mm) | Material | Pitch (t/mm) | Destroy load (KN) | Safety factor | Allowable traction(double chain) (KN) |
BL650 | 650 | 160~200 | 4 | Q235 | 0.05~0.5 | ≤25 | 20~80 | 250 | 168 | 11.6 | 25 |
BL800 | 800 | 200~250 | 5 | Q235 | 0.05~1 | ≤25 | 50~150 | 320 | 224 | 8 | 50 |
BL1000 | 1000 | 250~350 | 6 | Q235 | 0.05~1 | ≤25 | 80~200 | 320 | 332 | 7.6 | 75 |
Features and Advantages 1.Apron bucket made by wear-resistant steel plate with high precision, the cumulative error is small, running accurate, stable and reliable;2.Adaptable, can transport material with bigger size & sharp edges & high temperature. In the transportation process the conveyor will complete material cooling and cleaning at the same time.3. With chain transmission, apron conveyor has advantage of high intensity, high efficiency, reliable operation, heavy load, suite for long-distance transportation;Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://www.inczk.com/ & http://www.zkcomp.com/
24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
