| Prod Model: |
Customized |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White,Red,Orange,Blue....... |
| Voltage: |
as Require |
| Certification: |
CE |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Bzb |
Product Description

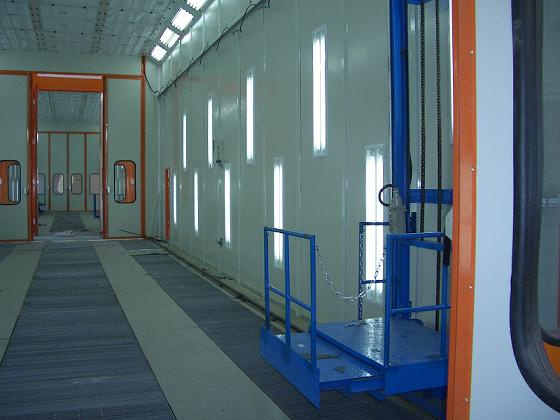

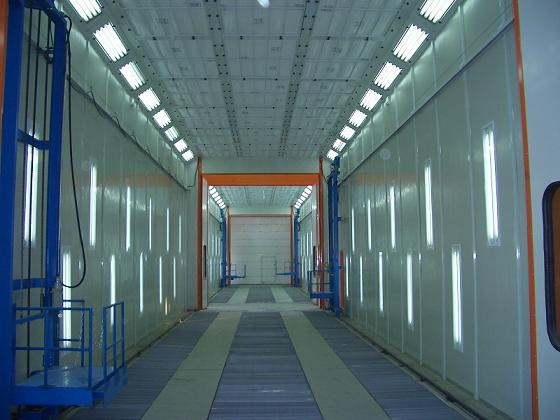

Main features:

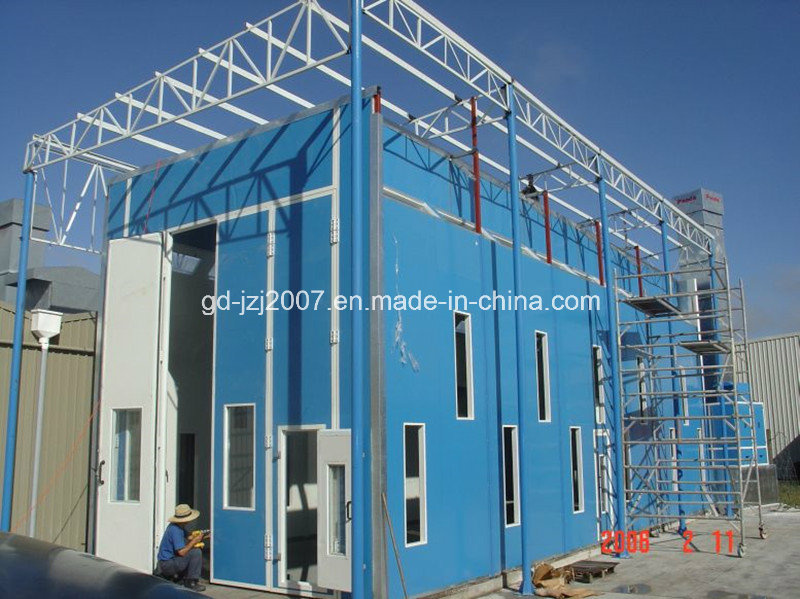

1. Wallboard:Sandwich style EPS (epispastics polystyrene) 75mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.
2. Door: 4 pcs of front doors with special rigid frame. Size: 4000(w) x 4800(h). 2 pcs of emergency doors.
3. Air Intake System (2sets): Each set consists of 2x5.5kw intake fan. Total 4 units of 5.5kw intake fan. BELIMO 20N electric damper.
4. Air Exhaust System (2sets): Each set consists of 1x7.5kw exhaust fan. Total 2 units of 7.5kw exhaust fan. Multi-layer fiberglass filter. Exhaust air from basement or two sides of wallboard.
5. Heating System (2sets): Each set consists of 1 unit Italy Riello G20 diesel burner, 200000Kcal/h. Total 2 units of burners, 400000Kcal/h. The heat exchanger is made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency.
6. Lighting System:Ceiling light has 16 units x 3 pcs of 40w lamps. Side light has 18 units x 2 pcs of 40w lamps. Total 84 pcs of 40w lamps. 900 Lux.
7. Air Purification:Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%
Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd., was established in 1999.As one of most professional auto maintenance equipments manufacturers in China, Our factory manufactures spray booths for cars, buses, truck and other vehicles, preparation stations, car lifts and supplies body repair systems, wheel aligners and other relevant garage equipment to customers all over the world.
| specifications of spray booth of 15meters |
| model of spray booth: | BZB-FB model | manufacturer | Jingzhongjing |
| technical parameters | (L×W×H)outside size | 15156×6956×5800 | structure parameter | thickness of wall panel mm | 75 |
| (L×W×H)inside size | 15000×5000×5000 | thickness of steel sheet mm | 0.5 |
| Access door width(mm) | 4000 | stuffing | EPS Panel |
| Access door hight(mm) | 4500 | grid | 30*4flat iron |
| air speed when empty(m/s) | ≥0.25 | shelf of the booth | square steel pipe+angle iron |
| noise dB | ≤85 | mesh | square steel pipe |
| total power kw | 52 | cabinet | square steel pipe+galvanized steel plate |
| max work temprature | 80 centi degree | illuminance parameter | lamps(pcs) | ceiling lamps72 |
| spec. of burner | burner | 2 sets of RG5S Riello Burner | bottom lamps 40 |
| max heat Calories/h | 260000*2 | power/pc W | 36 |
| fuel consumption L/h | (13-26)*2 | lamps | 220V/50HZ |
| heat-exchanger | stainless steel | illuminance Lux | ≥800 |
| spec. of inlet fan | model of inlet fan | YDW-5.6S | outlet air parameters | outlet pipe(mm) | 900×900 |
| estimated air Volume m3/h | 17530 | chimney | galvanized steel plate |
| power/set(KW) | 7.5 | hight of chimney | standard 12m plus two elbows |
| Quatity | 4 | electric appliance | control box model | PLC control board |
| spec. of outlet fan | model of outlet fan | 4-82-6.3E | components of control box | main parts are importd. |
| estimated air Volume(m 3 /h) | 34000 | others | color | grey/sky blue/orange(optional) |
| power/set(KW) | 15 | work plate lifter | optional |
| quatity | 2 | | | |
| remarks | |
| made by:Guangdong Jingzhongjing Industrial Painting Equipment Co.,LTD. | | Aprill.30th,2011 |
Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.
Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.
It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
