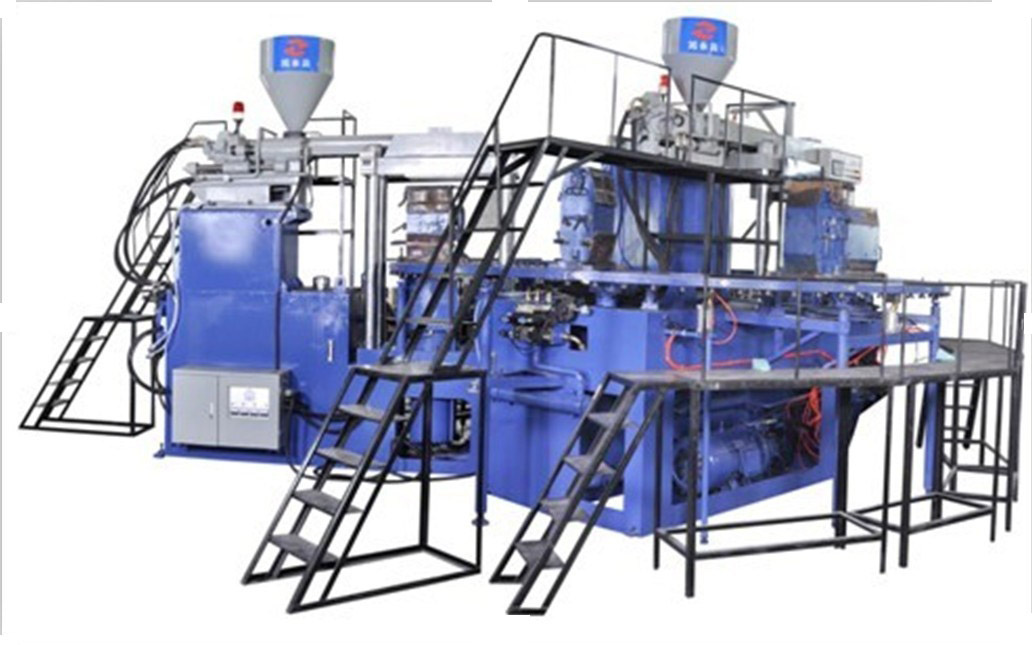

Rotary Rain Boots Injection Molding Machine
Features1. This machine is used in rain boot making industry.It can produce all kinds of
1/2 rain boot for lady,workers,farmers,students and children in plastic PVC TPR.
2.Taiwan Made PLC program control,Servo system made in Japan.
Operation system can be showed in Chinese,English,Russian,Spanish,Arabia.
3.Machine working is automatic,only need one worker in the production.
4.Machine have automatic alarm system,touch screen will show you the problem.
and you can find the solution in our operation manual easily.
Sample produced by our machine
| Machine model | HM-628-2C |
| Mould-clamping Unit |
| Work station | | 16 |
| Clamping force | TON | 100 |
| Opening stroke | MM | 350 |
| Mould dimension | MM | 680*260 |
| Height of injection nozzle | MM | 650 |
| Injection Unit |
| Injector | SET | 2 |
| Screw diameter | MM | 95,75 |
| Screw L/D ratio | L/D | 19 |
| Max.injection volume | CC | 1900,900 |
| Injection pressure | Kg/cm² | 500 |
| Injection speed | Cm/s | 10 |
| Screw rotation speed | R.P.M | 0-180 |
| Electricity Consumption |
| Heating power of injector | KW | 7*2 |
| Hydraulic unit motor | KW | 22.5,18.75 |
| Total electric consumption | KW | 55.25 |
| Temperature control | Section | 4*2 |
| Dimension and Weight |
| Machine dimension | (L*W*H)MM | 7500*6000*3500 |
| Machine weight | KGS | 22000 |
FAQ:Factory or trade company?We are manufacturer of shoes injection machine located in donnguan.China since 2006. Delivery date:40 days since received deposit . Payment term: Advance payment at order 30%, 70% before shipment. After sale: We can send technical engineer to buyers for 3 -7 days; Buyer is responsible for visas and round-trip tickets,food and lodging when install period,less than 7 days no need salary; More than 7 days should provide us engineer daily $100; Guarantee : One-year warranty and lifelong service.
Honking machinery is a professional manufacturer of shoes injection machine located in Dongguan. China since 2006.
Our major products:
1. Vertical TPU. TR. TPR. PVC soles injection machine
2. Plastic PVC air blowing slippers and crystal shoes machine
3. Rotary 1.2.3 color TPU. TR. TPR. PVC soles machine
4. PVC jelly slippers injection machine
5. EVA garden shoes injection machine
6. Rain boots injection machine
7. Rubber soles making machine
8. Related auxiliary equipment. Mold and material
We have exported our products to Africa, Southeast Asia, South Asia and South America. We believe that our success depends on your satisfaction with our products. We always adhere to the principle of "quality first, customer supreme" and provide pre and after-sales services for our customers. Our team of experienced engineers strives to continuously improve our technology from hardware design to machine components to make them the most durable and reliable in the marketplace. Our shoes machines are thoroughly tested, both in the design and throughout the entire production process.
Please don't hesitate to contact us!
