Gusus Ball Mill Grinder for Chocolate Making (QMJ500)

Name: Gusus Ball Mill Grinder for Chocolate Making (QMJ500)
Brand: FullPackage
SKU: 835684765
Availability: InStock
Rating: 4.7 (88 reviews)

Price:	US $ 20000-32600/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QMJ500
Model:	Qmj500
Usage:	Chocolate Refining and Conching
Capacity:	500 Kg/H
Fineness:	20-25μm
Grinding Medium:	400kg
Motor Power:	15*2kw
Voltage:	380V
After-Sales Service:	Engineers Available to Service Machinery Overseas
Keywords:	Chocolate Making Machine
Application:	Chocolate
Customized:	Customized

Product Description

Gusus ball mill grinder for chocolate making (QMJ500)

A. Machiney Capacity(kg): 500kg/Hour

B. Main Drive Motor (kw): 15*2kw

C. Dimmension: See table below

D. Fineness(μm): 20-25

E. Grinding Medium: 400kg

Gusu Ball Mill Machine is the ideal machine for ensuring efficient and uniform refinement of chocolate and similar masses with relatively low fat contents. Though this ball mill machine can be used as a stand-alone refining mill (Set after mixing machine), its features are best put to use when it is combined with our Chocolate Conche Machine, whether installed separately or as part of a comprehensive, compact unicom system.

1. Specification Data

Model	QMJ250	QMJ500
Main Motor(KW)	15KW	30KW
Spindle Speed(r/min)	250-500	280-630
Grinding Medium(kg)	200	400
Avg. Process Ability(kg)	150-250	500kg/h
Cooling Water(kg/h)	1500(15-20ºC)	2000(15-20ºC)
Input/output Pump(KW)	1.5	1.5
Overall Size(mm)	12409601733	232010702385

2.Benefits
-Consistent product quality.
-Simple, fully automatic operation.
-Requires a minimal amount of space, no foundations required.
-Low energy consumption.
-Very low maintenance costs.
-Extremely low wear.
-Very flexible in terms of recipes and product composition.
-Fast payback time.

Company Information

Gusu Food Processing Machinery Suzhou Co.,Ltd., formerly known as Gusu General Works of Food Processing Machinery Suzhou, founded in 1969, is also the first enterprise making complete sets of chocolate machinery in China and honored in this industry as "the Mother of Chocolate in China". Products are sold all over China and more than 120 countries and regions.

FAQ

1 How to Order

1. Customer send us an inquiry.

2. Confirmmachine type, order quantity, price, lead time, payment term etc.

3.Our sales send the Proforma Invoice with company seal.

4. Customer make the payment for deposit and send us Bank receipt.

5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time

6. Production products photos will send to you for approval.

7. Clients make payment for balance and Ship the goods .

8. Order is finished when you receive the goods and satisfy with them .

9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better

2 About after-sell service

Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .

3 About goods shipping

We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.

4 About our online Service

24 hours online to solve any problem .

Your email will be reply within 12 hours .

Your satisfy is our pursuit .sincerely hope our cooperation

Contact Us

Contact person: Debbie
Mobile phone 86+18855585296

English Web: www.chocomachinery.com
Chinese Web: www.gusujx.com

Gusu Food Processing Machinery Suzhou Co., Ltd., formerly known as Gusu General Works of Food Processing Machinery Suzhou, founded in 1969, is also the first enterprise making complete sets of chocolate machinery in China and honored in this industry as "the Mother of Chocolate in China".

Over 45 years, Gusu insists on a corporate philosophy of people-oriented, be loyal to customers and credit management, we aim at the first class equipments and technologies worldwide in the industry, we connected with the food industry, scientific and technological enterprises and universities to make continuous improvements, innovations and development of the products in order to provide better service to customers. Products are sold all over China and more than 80 countries and regions.

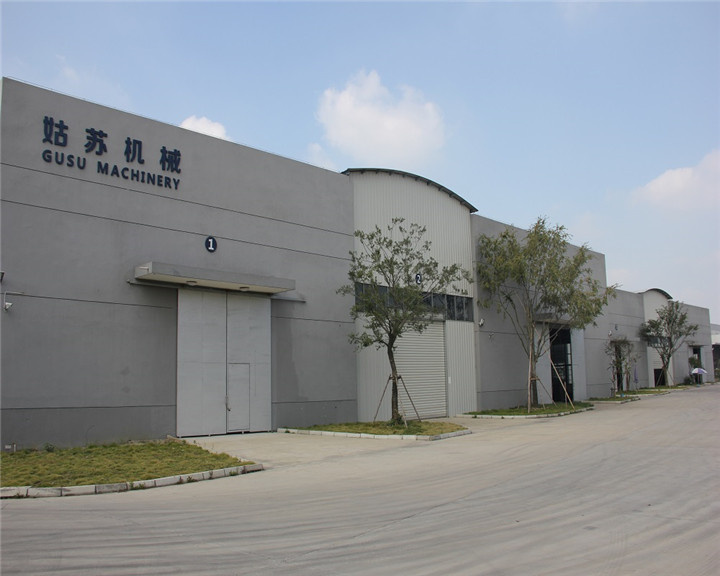

Gusu expanded and moved to the new factory in 2014, "Suzhou Food Engineering Research Center" was founded in our new factory.
