Hand Woven 304 Stainless Steel Rope Decorative Mesh Netting
| Price: |
US $ 35-50/Square Meter |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

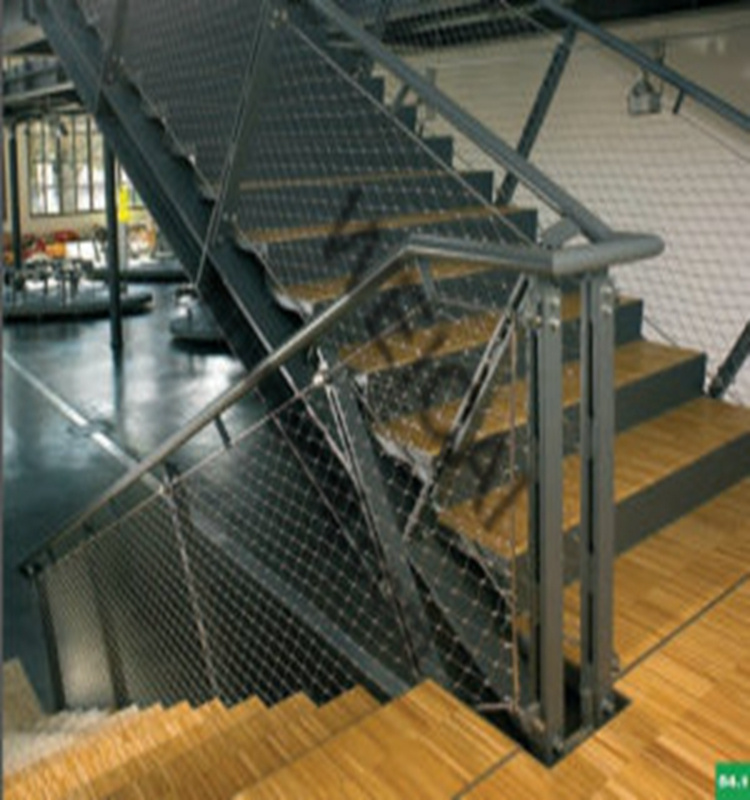

The flexible Stainless Steel Diamond Rope Mesh For Building Construction ferrule type is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane. As the material is virtually indestructible stainless steel, then it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customizable to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security
The specification of stainless steel ferrule rope mesh |
|
| Code | Rope Construction | Rope Diameter | Aperture | Breaking Force |
|
| Inch | mm | mm | kN |
|
| SFRM-01 | 7 × 19 | 1/8 | 3.2 | 120 × 208 | 7.38 |
|
| SFRM-02 | 7 × 19 | 1/8 | 3.2 | 100 × 173 | 7.38 |
|
| SFRM-03 | 7 × 19 | 1/8 | 3.2 | 90 × 156 | 7.38 |
|
| SFRM-04 | 7 × 7 | 3/32 | 2.4 | 100 × 173 | 4.18 |
|
| SFRM-05 | 7 × 7 | 3/32 | 2.4 | 90 × 156 | 4.18 |
|
| SFRM-06 | 7 × 7 | 3/32 | 2.4 | 80 × 139 | 4.18 |
|
| SFRM-07 | 7 × 7 | 3/32 | 2.4 | 70 × 121 | 4.18 |
|
| SFRM-08 | 7 × 7 | 5/64 | 2.0 | 100 × 173 | 3.17 |
|
| SFRM-09 | 7 × 7 | 5/64 | 2.0 | 90 × 156 | 3.17 |
|
| SFRM-10 | 7 × 7 | 5/64 | 2.0 | 80 × 139 | 3.17 |
|
| SFRM-11 | 7 × 7 | 5/64 | 2.0 | 70 × 121 | 3.17 |
|
| SFRM-12 | 7 × 7 | 1/16 | 1.6 | 80 × 139 | 2.17 |
|
| SFRM-13 | 7 × 7 | 1/16 | 1.6 | 70 × 121 | 2.17 |
|
| SFRM-14 | 7 × 7 | 1/16 | 1.6 | 60 × 104 | 2.17 |
|
| SFRM-15 | 7 × 7 | 1/16 | 1.6 | 51 × 87 | 2.17 |
|
| SFRM-16 | 7 × 7 | 3/64 | 1.2 | 80 × 139 | 1.22 |
|
| SFRM-17 | 7 × 7 | 3/64 | 1.2 | 60 × 104 | 1.22 |
|
| SFRM-18 | 7 × 7 | 3/64 | 1.2 | 50 × 87 | 1.22 |
|
| SFRM-19 | 7 × 7 | 3/64 | 1.2 | 40 × 69 | 1.22 |
|
| Prod Model: |
MWN-GN |
| Types: |
Knotless and Knotted |
| Cable Structures: |
7 X 7 and 7 X 19 |
| Grade: |
Ss201, Ss304, Ss304L, Ss316, Ss316L |
| Opening Size: |
2" X 2", 3" X 3" and 4" X 4" |
| Material: |
SUS316 |
| Hole Shape: |
Diamond |
| Application: |
Cages |
| Material Type: |
Stainless Steel Wire |
| Technique: |
Woven |
| Nickels: |
12% |
| Certification: |
SGS |
| Type: |
Cable Nets |
| Weave Technique: |
Hand Made |
| Wire Mesh Width: |
No Limit |
