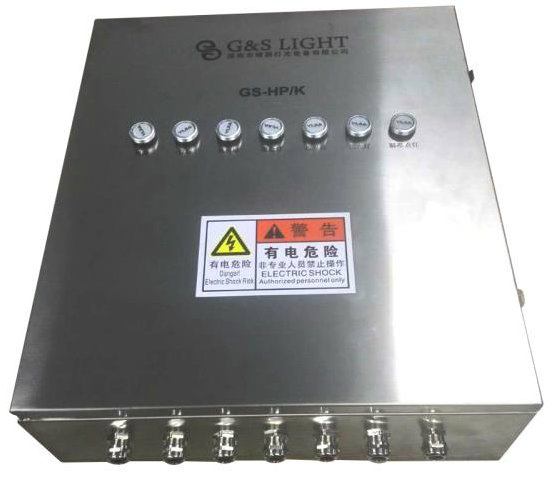

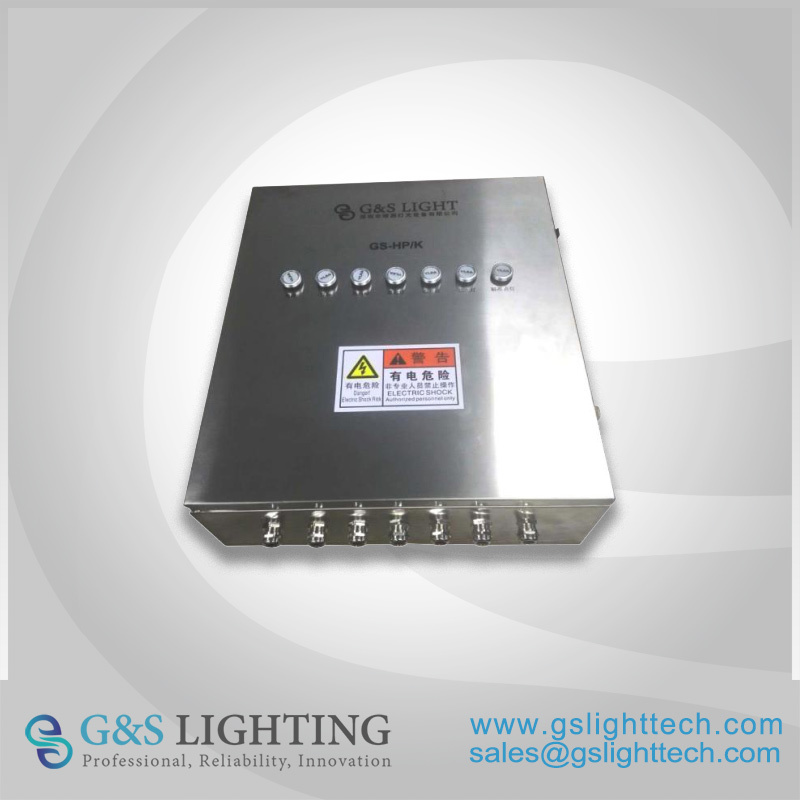

Heliport Controller/ Apron Control Cabinet/ Lighting Control Monitor
| Price: |
US $ 1-999/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
DescriptionHeliport Controller/ Apron Control Cabinet/ Lighting Control Monitor
Specification| Name | Parameter | Name | Parameter |
| Type | GS-HP/K | Overall Size | 480mm×550mm×180mm |
| Power Supply | AC220V(±10%) | Installation Size | 490mm×560mm×M8 |
| Power Supply Frequency | 50HZ~60HZ | IP Standard | IP66 |
| Power Consumption | 15W | Ambient Temperature | -40ºC~+70ºC |
| Maximum Load | 5KW | Weight | 17kg |
| Control Ability | 6 groups | Anti-wind Ability | 80m/s |
Features&Functions- SUS 304 stainless steel cover, adapt to all kinds of bad environment places.
- Working stable,provide strong ability of anti-interference,anti-shock.
- Full sealed structure, excellent waterproof function.
- With anti-surge device.
- It provide independent single group protective function, it can control separately.
- Panel type control switch,operates simply and intuitively
- It can match with VHF wireless control switch to control heliport lights uniformity.
Usage notice- Don't use out of standard voltage, or will destroy the device.
- Power light and SYV should connect correctly base on color then electrify, or will destroy lights.
- In order to avoid controller destroy, don't make controller's output port short circuit
- The load power can't beyond the range of instruction, or will cause blowout or controller module
- Any person who install this controller must shut down controller's safety lock after finish installing, or will course water entering or bad effect of personal safety.
- Non-professional workers can not do the device maintenance, so as not to expand the error and be hurt.
Application All kinds of military and civil heliports
| Prod Model: |
GS-HP/K |
| IP Standard: |
IP66 |
| Power Supply Frequency: |
50h - 60Hz |
| Maximum Load: |
5kw |
| Anti-Wind Ability: |
80m/S |
| Power Consumption: |
15W |
| Ambient Temperature: |
-40ºC - +70ºC |
