High Chromium White Iron Wear Buttons Used in Bucket Wear
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Diameter: |
60mm-150mm |
| Application: |
Bucket Abrasion Protection |
Product Description
MaterialThis Bi-metallic wear resistant product, as a combination of high Chromium cast iron (ASTM A532 15/3CrMo, 700BHN - 63HRc) metallurgically bonded to a mild steel backing plate, obtains both very high abrasion resistance and weldability. Chemical Composition of White Iron | C | Cr | Mn | Mo | Cu | P | Si | S | B,V,Nb |
| 2.5~3.5% | 15~18% | 0.5~1.0% | 0.5~2.5% | 0.5~1.0% | ≤0.02% | 0.5~1.0% | ≤0.02% | 0.1~0.5% |
Mechanical Property of White Iron
1. Tensile Strength: 630 MPa2. Shearing Strength: 250 MPa3. Hardness: 63 HRCMicro-Structure of White Iron
Product SeriesChocky Bars Wear Buttons Wear DonutsStandard Wear Bars Micro-Ledges Wear PlatesRock Box Liners Skid Wear Bars Shaped Wear BarsWafer Strips Grizzly Bars Elbow Wear BarsShredder Hammer Tips Knife Edges Overlay Wear Plates ApplicationsWear Pads Jaw Crushers Chute Linings Ore ChutesCrusher Chutes Tripper Chutes Flop Gates Bucket LinersGrizzly Bars Lip Protectors Screen Plates Vibratory FeedersFloor Liners Loaders Wear Aprons Knife InsertsCrusher Bars Run Out Rolls Dump Hoppers Crusher Hoppers

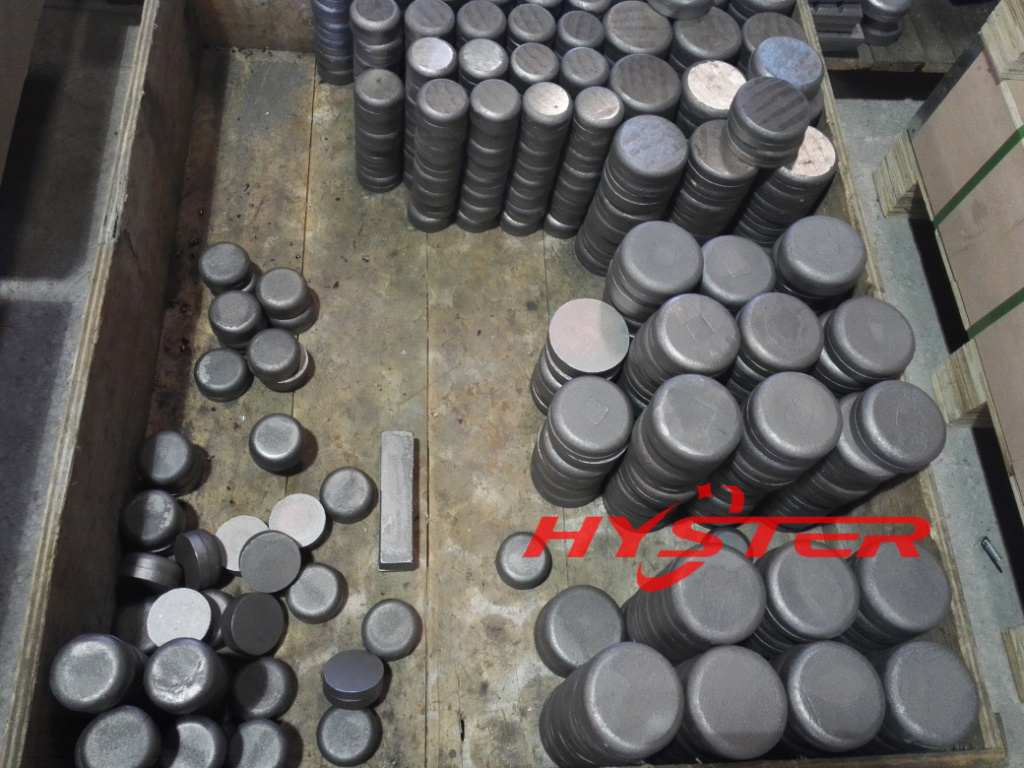

Specifications of Wear ButtonsThe diameter of Wear Button varies from 60mm to 150mm. Customized grades and sizes are available as per the clients' specific need.

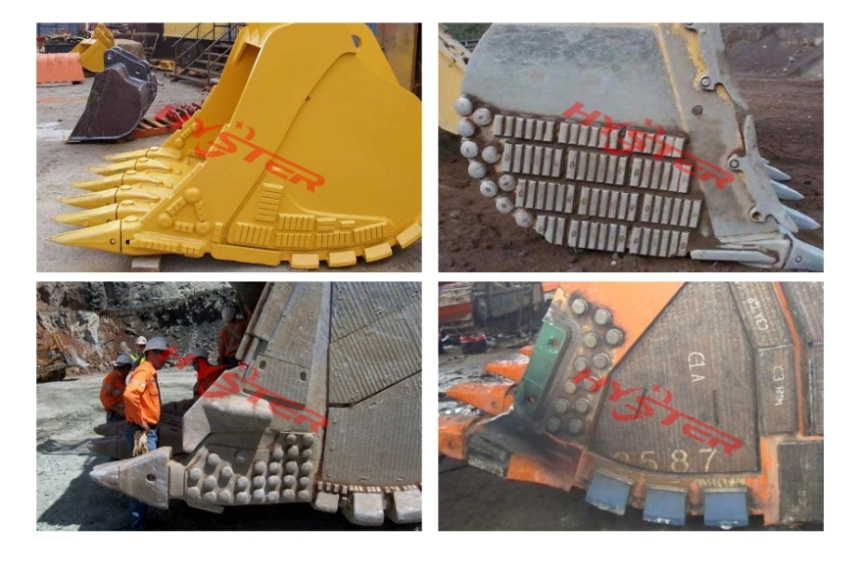

Applications of Wear Buttons are widely varied, ranging from specific wear protection on buckets for loaders, excavators and dragline machines, or chute linings and rock box edges.

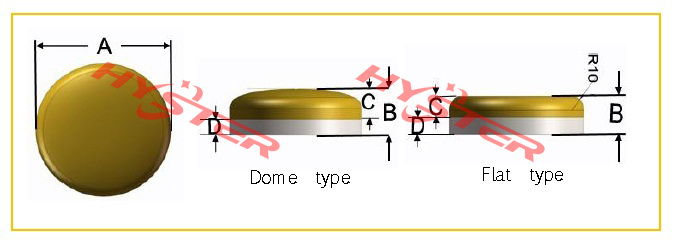

| Item No. | Size
(mm) | Dimension (mm) | N.W.
(kg) |
| A | B | C | D |
| WB 60 | Ø60×27 | 60 | 27 | 17 | 10 | 0.7 |
| WB 75 | Ø75×27 | 75 | 27 | 17 | 10 | 0.8 |
| WB 90 | Ø90×27 | 90 | 27 | 17 | 10 | 1.4 |
| WB 110 | Ø110×32 | 110 | 32 | 20 | 12 | 2.1 |
| WB 115 | Ø115×32 | 115 | 32 | 20 | 12 | 2.5 |
| WB 150 | Ø150×41 | 150 | 41 | 25 | 16 | 5.7 |
Hunan Hyster Material Technology Co., LTD.Founded in 1995, Hyster is a professional manufacturer & exporter of Bi-metallic Wear Blocks & Plates, Wear Pipes, Chocky Bars, Wear Buttons (white iron vacuum brazed onto mild steel, 63HRC/700BHN), Chromium Carbide Overlay Wear Plates, Ni-Hard Castings/Plates, Tungsten Carbide Castings for Mining, Quarrying, and other heavy industries.
Hunan Hyster Material Technology Co., Ltd., formerly name is hyper casting parts Co., Ltd., is an independent international supply, design and engineering company, in operation since 1995, we specializes in high quality of wear products.
Hyster offer our clients a wide range of wear products and professional wear solutions. We also welcome custom made one off's and consumables.
Some of our products and services:
--Wear plates, wear liners
--Chocky bars and wear buttons
--Wear blocks, wear bars
--Custom made wear liners
--Bucket repair and protection
--Full Fabrication services
--Sugar mill hammer tips
--Drilling, milling or machining
--Casting/Investment casting
--Fast service and timely delivery
With strict management system and strong technical base, Hyster Corporation is committed to provide high-quality products and services for the fields of Mine and Mining, Quarrying, Electrical power, Cement, Sugar, Aviation, Marine, Railway, Engineering plant and Petroleum machinery industries.

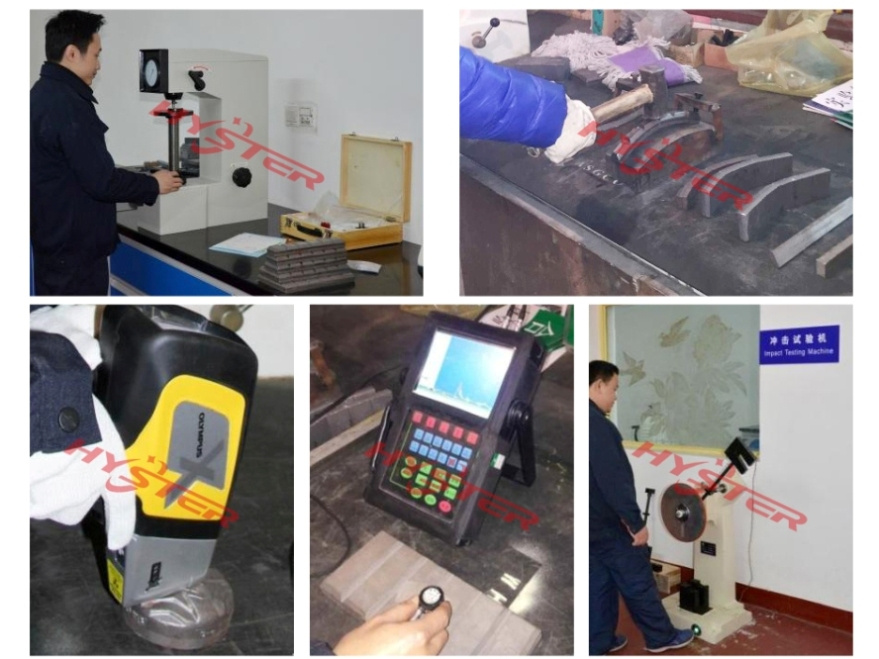

Quality is very important to the development of Hyster Corporation. The company strictly operates according to ISO9001: 2000 quality management system. Over 95% products have been sold to Australia, Canada, South Africa, Brazil, America, Chile, Indonesia, Argentina, Thailand, Mexico, Russia, Holland, as well as many other countries and areas.
Moreover, breaking out of the traditional practice that only provide OEM products, our company has created the new sales concept whose main points are providing solutions, terminal products and customer services, which enables us to better fulfill customer specifications in a positive manner.
Please contact us directly with any questions or inquiries!
