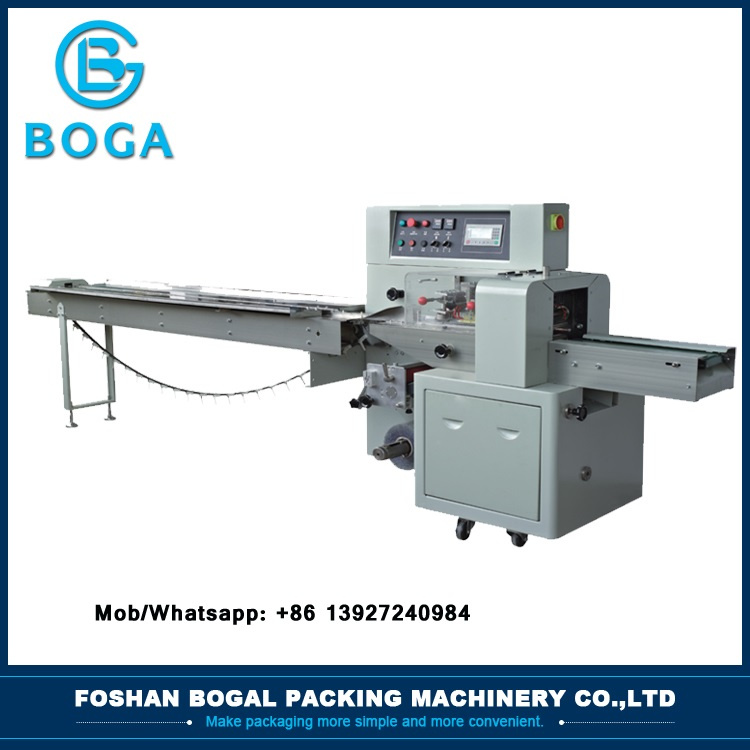

High Efficiency Fully automatic Disposable tablecloth pillow packing machine
Specifications:
1. Easy to operate
2. High quality and good price
3. CE certification
4. One yeas warranty
5. Reliable performance
Model Packing Machine
Model | ALD-250B | ALD-320D | ALD-350B | ALD-350D | ALD-400D | ALD-450 |
| Film width | Max.250m | Max.320mm | Max.350mm | Max.350mm | Max.400mm | Max.450mm |
| Bag length | 65~190mm
120~280mm | 90~260mm
150~330mm | 65~190mm
120~280mm | 90~260mm
150~330mm | 130~320mm | 120~450mm
|
| Bag width | 30~110mm | 50~160mm | 50~160mm | 50~160mm | 30~150mm | 50~180mm |
| Bag height | Max. 40mm | Max. 55mm | Max.45mm | Max. 60mm | Max.65mm | Max. 80mm |
| Roll diameter | Max.320mm |
| Bag speed | 40~230bag/min | 40~230bag/min | 60-330bag/min | 40~180bag/min | 30~150bag/min |
| Power | 220V,50/60HZ,2.4KW | 220V,50/60HZ,2.6KW |
| Machine size | (L)3700×(W)670×(H)1450 | (L)4020×(W)745×(H)1450 | (L)4020×(W)800×(H)1450 |
| Machine weight | 600Kg | 650Kg | 650Kg | 700Kg | 750Kg |
Packing material
Heatsealable laminated film,such as: OPP,PE,PVC,PT/PE,OPP/CPP, other special sealable packing film.Sealing Type:Back-sealed( 3 sides sealed)
1.Standard Pillow Style Bag
2.Pillow Style Bag With Hole Punch / Euro Slot
3.Gusseted Pillow Style Bag
Features:
1. Servo 3 motors, panasonic PLC controller, flexible bag length seting and cutting, saving time and film.
2. Touchable human-machine operation, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking AND digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. All the controls are achieved by software, convenient for function adjusting and upgrading.
9. Automatic sense material length, autormatic packaging products, no product no packaging, don't need to adjust the bag length.
Optional device features :
1. Date coder printer
2. Automatic Punching Device
3. Full Stainless Steel (SS304)
4.Touch screen/Digital Display (Ultra large touch screen)
5. Release the air
6. No empty bag function
7. Automatic feeder
8. Customized sealing patterns and notch
9. Single,Twin, triple,quad jaws for high speed for your choose
10. Gas device for modified atmosphere packaging(Nitrogen Charging Device,Air filling device)
11.No empty bag function
Advantages:
1. All of machines from us obtained CE certificate.
2.We test the packing machine according to your needs before delivery to make sure the machine fit the materials and your products well.
3.We will make a video for you before delivery to let you check the quality.
4.Our technicians get rich experiences in making packing machine.
5.We have made many packing machines of pinpoint accuracy for domestic and abroad large enterprises.
Main Machine Parts
1.PLC Panasonic from Japan
2.Inverter Panasonic from Japan
3.Close to Switch Omron from Japan
4.Switch Button Schneider from France
5.Terminals Wade Miller from German
6.Display Screen WEINVIEW from China
7.Motor Jiangcheng from Guangdong
8.Photocell Yatai from Shanghai
9.Temperature Control List Yatai from Shanghai
10.Pushbutton Switch Schneider from France
11.Power Ming Wei from Taiwan
12.Solid State Relay Schneider from France
13.Intermediate Relay Schneider from France
14.Breaker MUNLAN
15.Two Wire Switch Schneider from France
APPLICATIONS
Food : cake, bread, meat muffin, flaky pastry,biscuits, green bean cake, several sausage in a bag, noodles, beef jerky, egg roll, etc
Hardwares : hinge, stainless steel pipe, bearings , screw,nuts and washer, etc
Hotel supplies : Soap, disposable comb, tooth paste and brush in one set.
Stationary : pencil, eraser, notebook, paper card, adhensive tape
Electric products : battery, usb cable, earphone, user manual and accessories in one set.
Medical : mask, glove, gauze, capsule.
Daily use: plastic knife, fork, plate, sponge, scourer, wipes, several straws in a bag, cups, bottles, napkin etc.
Packaging Detail:
1.Packaging Details:Export and Sea-worthy standard wooden case
2. After inspection our machines are wrapped by plastic film and then carefully packed in wooden cases.
Dedusting & Cleaning >> lubricate Drive Parts >> Divide Machine Into Modules >> Wrap Modules With Plastic Film >> Packing Modules into Plywood Cases >> Mark Shipping Mark In The Cases
3. If any special requirements, we will pack it as requested.
Delivery Detail:
Time of shipment: Within 15 working days after receiving deposit, and also according to the quantity and
special requirement of packing machine you orded.
Term of payment: a. T/T (30% as deposit and 70% before delivery.
b. L/C at sight
Warranty: We gurantee one year from the date of cargo receipt by buyer.
