| Price: | US $ 5000-5100/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal |
| Prod Model: | 150ZW-20 |
|---|---|
| Type: | Self-priming Pump With Inner Recirculation |
| Air Engine Type: | Diesel Engine |
| Theory: | Gas-hydraulic Hybrid Type |
| Transmission: | Direct Connection Transmission |
| Pump |
| ZW type self-priming sewage pump has the characteristics of stable operation, good ability of self-priming, compact structure, convenient operation and maintenance, etc.. This pump was advanced in self-priming and non-clogging sewage, by the axial reflux outer recirculation, and the unique design of pump body and impeller, help the pump irrigation water without bottom valve, It is widely used in flood control and drought relief, municipal wastewater discharge, emergency drainage, and so on. |
| Diesel Engine |
| Trailer water pump adopted domestic and international high quality engine to provide strong power for water pump, we can supply PERKINS, CUMMINS, YUCHAI, WEICHAI and so on famous brand diesel engine for the trailer pump, to achieve stability of fuel economy and emissions standards. Obtain convenient after-sale service. |

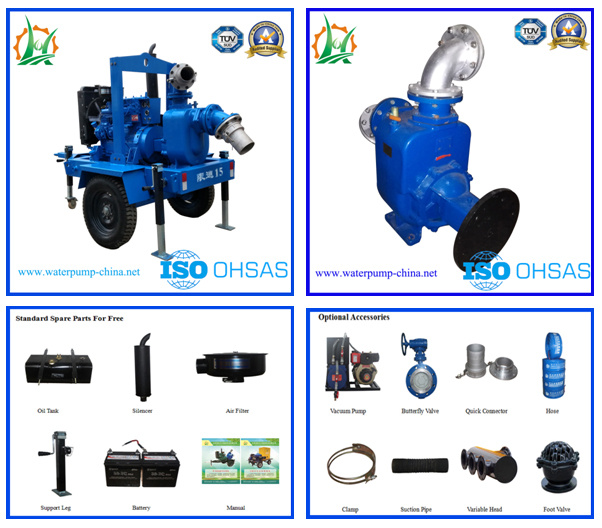

| Trailer |
| The trailer with a variety of chassis (2 or 4 wheels, rotary table or guide shaft type, closed, semi closed, open type or silent type). There are also trailer, intelligent control cabinet, hose and pipe, valve, and quick connector provided. Satisfied to customers' needs and field conditions. Easy to move and use. |
| Application: |
| Widely used in municipal sewage works, pond aquaculture, light industry, textile, papermaking, papermaking, food, chemical industry, electric power industry, it's the most ideal impurity pump for chemical media such as fiber, pulp, and mixed suspension. |
| Permitted Use: |
|
| Unit Model | Diameter (mm) | Flow | Head (m) | Speed (r/min) | Power (kw) | ||
| Inlet | Outlet | L/s | m3/h | ||||
| 150ZW-20 | 150 | 125 | 56 | 200 | 15 | 1450 | 18.5 |
| 20 | 22.0 | ||||||
| 150ZW-38 | 150 | 125 | 50 | 180 | 20 | 1450 | 22.0 |
| 30 | 37.0 | ||||||
| 38 | 55.0 | ||||||
| 200ZW-28 | 200 | 150 | 78 | 280 | 14 | 1450 | 22.0 |
| 18 | 30.0 | ||||||
| 20 | 37.0 | ||||||
| 28 | 55.0 | ||||||
| 200ZW-50 | 200 | 150 | 83 | 300 | 25 | 1450 | 45.0 |
| 50 | 75.0 | ||||||
| 250ZW-50 | 250 | 200 | 117 | 420 | 20 | 1450 | 55.0 |
| 111 | 400 | 30 | 75.0 | ||||
| 50 | 90.0 | ||||||
| 300ZW-20 | 300 | 250 | 222 | 800 | 14 | 1450 | 55.0 |
| 20 | 75.0 | ||||||
| 300ZW-30 | 300 | 300 | 278 | 1000 | 16 | 1450 | 75.0 |
| 20 | 90.0 | ||||||
| 25 | 110.0 | ||||||
| 30 | 132.0 | ||||||
| 350ZW-30 | 350 | 350 | 333 | 1200 | 13 | 1450 | 75.0 |
| 17 | 90.0 | ||||||
| 22 | 110.0 | ||||||
| 26 | 132.0 | ||||||
| 30 | 160.0 | ||||||
| 417 | 1500 | 14 | 1450 | 90.0 | |||
| 17 | 110.0 | ||||||
| 20 | 132.0 | ||||||
| 25 | 160.0 | ||||||
| 30 | 200.0 | ||||||
| 400ZW-30 | 400 | 400 | 500 | 1800 | 12 | 960 | 110.0 |
| 15 | 132.0 | ||||||
| 18 | 160.0 | ||||||
| 24 | 200.0 | ||||||
| 26 | 220.0 | ||||||
| 30 | 250.0 | ||||||
| 556 | 2000 | 14 | 960 | 132.0 | |||
| 17 | 160.0 | ||||||
| 22 | 200.0 | ||||||
| 24 | 220.0 | ||||||
| 28 | 250.0 | ||||||
| 30 | 280.0 | ||||||
| 500ZW-30 | 500 | 500 | 611 | 2200 | 12 | 960 | 132.0 |
| 15 | 160.0 | ||||||
| 20 | 200.0 | ||||||
| 22 | 220.0 | ||||||
| 25 | 250.0 | ||||||
| 28 | 1450 | 280.0 | |||||
| 30 | 315.0 | ||||||
