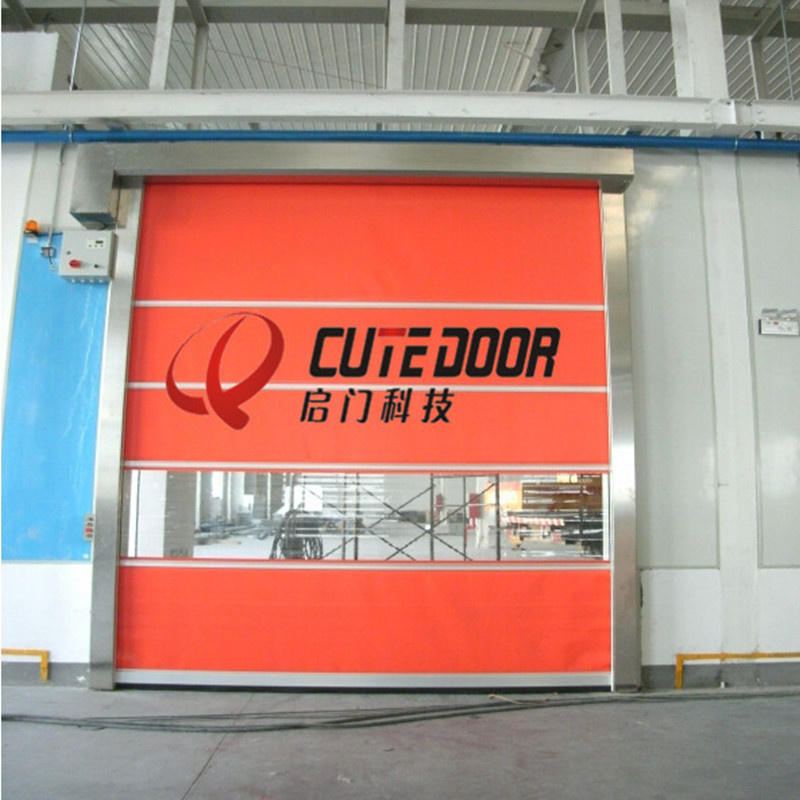

High Frequent Using Automatic Industrial High Speed Shutter Door PVC Curtain
| Price: |
US $ 1000-1300/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
QM-HD-1113 |
| Material: |
Aluminum Alloy |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Opening Type: |
Power Driven |
| Special Function: |
Soundproof |
| Certification: |
CE |
| Position: |
Industrial |
| Surface Finishing: |
Finished |
| Color: |
Yellow |
Product Description
| Door size | The maximum door size: (width 4000mm*height 4200mm) |
| Speed of opening and closing | 0.8~1.2m/s; Adjustable |
| Curtain | Imported PVC coated fabric, thickness 0.8mm~1.2mm |
Track
| It is made of bent galvanized steel sheet,and the surface is sprayed with plastic (optional: aluminum alloy or stainless steel material) |
| Outer Cover | It is made of bent 2.0mm galvanized steel sheet,and the surface is sprayed (optional: aluminum alloy or stainless steel material)
|
| Tensile strength | 5700/5100N/20cm,Tear strength 900/800n |
| Wind resistance | 9m/s-50pa
|
| Driving system | Fast door motor power is 0.75kw~1.5kw, able to carry large loads, high efficiency, low noise . |
| Control system | Microcomputer frequency conversion control the system,can slowly up slowly stop, operate smooth. |
| Perspective mode |
Horizontal perspective window
|
| Security configuration | The standard infrared photoelectric protection, air pressure bag, (optional radar, geomagnetism, warning lights, anti-collision column) when the door body below a person or an object, the door will automatically rise.
|
| Sealing property | Sealing property:Three Ethylene Propylene rubber seal or U type airbag soft cloth bag at the bottom of the door can be fitted with the uneven ground , the door frame bilateral can prevent the dust, pest control and so on.
|
Description: The product is light and beautiful, durable, low price, high cost performance ,can help customers to maximize cost savings.The utility model is widely suitable for various workshops under the condition of no wind pressure, and the inner partition door of the workshop. Application scope:Food, electronics, textile and other workshops, factory internal partition, applicable to a variety of industries.Why choose us ?The company covers an area of 10 acres, plant area of10000 square meters.
Our History:
Predecessor is one of the four biggest rolling shutters factory in China_Zhejiang zhengxing Roller shutter Factory.
Our R & D team:
We have a very professional technical team, have developed a large number of product patents.

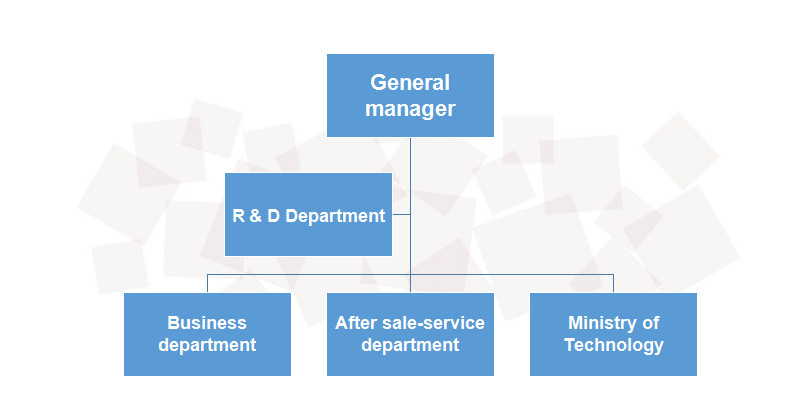

Our team:
Our equipment:
Our Customer:
F A Q:1. What's the payment details?
Deposit before production, and balance before shipment.
2. What's the delivery time?
For common order, about 15 days only.
3. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.When the product quality appear.
4. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
5. What's the MOQ?
We accept 1 set as sample order.
6. How about the package?
Plywood case or Cardboard, suitable for sea freight or air freight, as your request.
Zhejiang Qimen Technology Co., Ltd. Is located in Huzhou, Zhejiang which has an area of 16000M2 manufacturing base in Deqing Our company is originated from Zhejiang Zhenxing rolling shutter factory which specialized in industrial door in domestic market from 1996. It is one of the four greatest rolling shutter factories in China market.
Our company devote to middle and high-end market, products contain four basis industrial doors: Industrial sectional rolling shutter door, industrial sliding door, rapid rolling shutter door, wind-resistant rolling shutter door. And It accompanied by fire-proof door, steel door, dock leveler and so on.
The power of research and development of company can guarantee supply each kind of industrial doors, help client to solve the problems especially for the nonstandard big door, especially heavy door of industrial doors. Now, we have lots of successful project examples in dockyard, power plant, airport, large industrial workshops which in domestic market and overseas market!
We love door, we keep trying all the time.
