High Purity 99.999% Helium Gas (He) Filled The Inflatable Balloon

99.999%High purity helium
Main application: used in the study of ultra-low temperature, gas chromatography analysis, non-ferrous metal welding, leak, chemical gas phase deposition, crystal growth, the configuration of the plasma dry, special mixture, used as a standard gas, gas balance,medical gas, inflatable balloon, tube, diving suits, etc.

The name of the gas

specifications

Impurity content(10-6)

standard number

He

99.999%

Ne≤4 O2≤1.0 H2≤1 N2≤2 CO≤0.5 CO2≤0.5 CH4≤0.5 H2O≤3

GB/T48443-1995

99.995%

Ne≤15 O2≤3 H2≤3 N2≤10 CO≤1 CO2≤1 CH4≤1 H2O≤10

GB/T48442-1995

NINGBO DSW INDUSTRY CO.,LTD established in 1998. Our company possesses five production lines for production of various seamless gas.Our major products are oxygen cylinder, nitrogen gas cylinder, carbon dioxide gas cylinder, argon gas cylinder, other industrial gas cylinder, medical oxygen gas cylinder supply unit, etc., cylinders.

In order to open the cylinder market, our company now launched the following gas: 99.999% and 99.995% helium were 99.9% and 99.999%, 99.9% and 99.999% of the laughing gas, the carbon monoxide were 99.9993% and 99.999%, 99.9993% and 99.999% of argon gas, and 99.995% hydrogen, 99.995% and 99.999% nitrogen, 99.999% and 99.99% were 99.999% and 99.995% and 99.999% of carbon dioxide, methane, 99.999% and 99.998%, and 99.999% of the oxygen, or more than 99.9% of acetylene, and so on.



Our quality is strictly controlled from the very beginning, only a strict quality control in every working procedure, to ensure that each bottle of gas purity and quality.Choose in the cylinder production 100% new high quality seamless steel pipe from Bao Shan Iron co., LTD (Baosteel).

From raw material selection to the cylinder processing to gas detection, every step we are strictly controlled

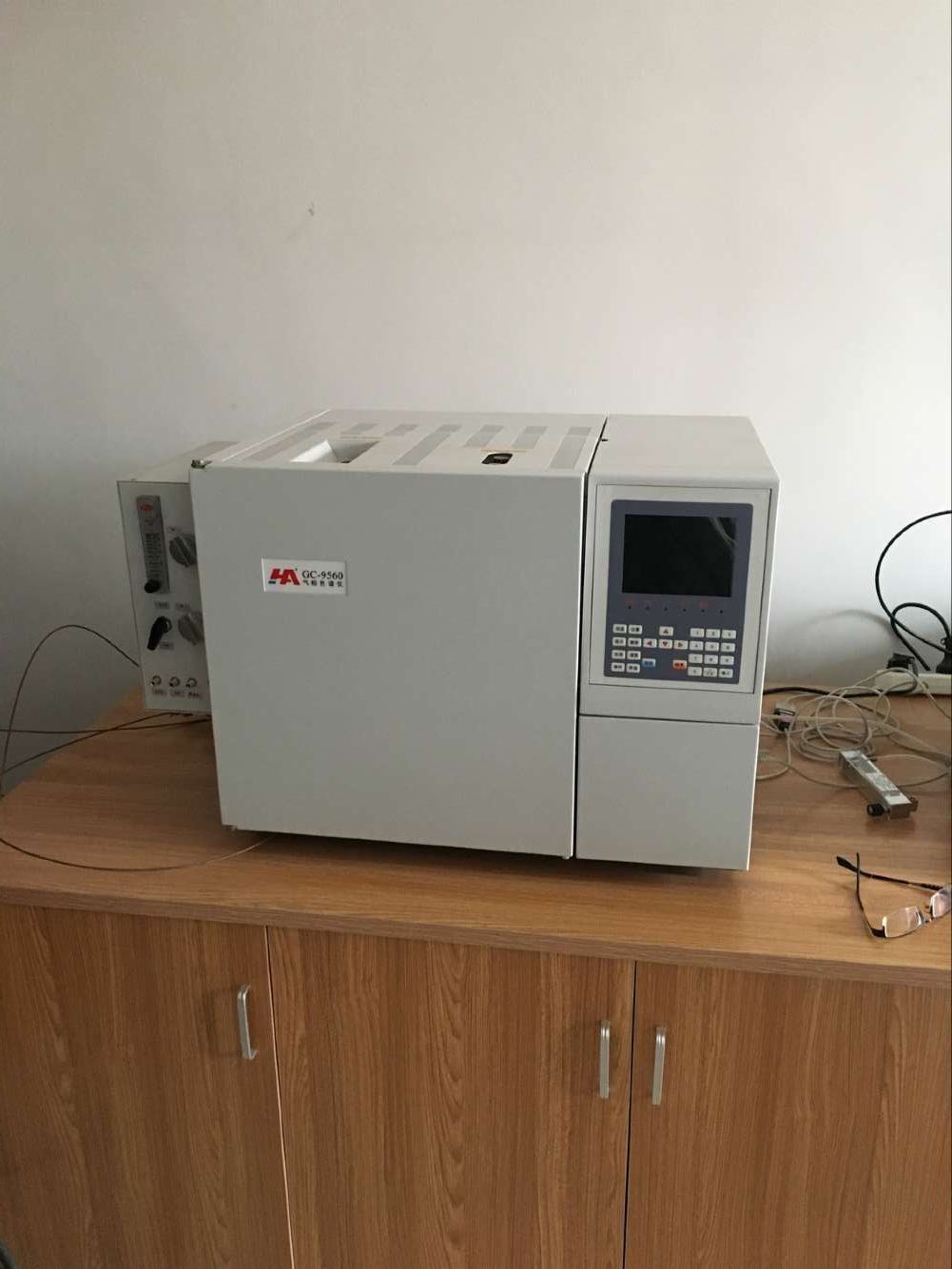

1.On raw material processing: first we chromatographic purity test at the meeting, the purity standard again after unloading into the tank, before purification purification.

2. Before filling: heating with the first step of the cylinder, the second step is to dry the moisture inside the cylinder, the third step to open the cylinder calabash valve pumping air into vacuum state, the fourth step play 0.3 to 0.5 mpa raw material gas chromatography to test, test impurities, this step is to test both sides can enter the next step aeration process.

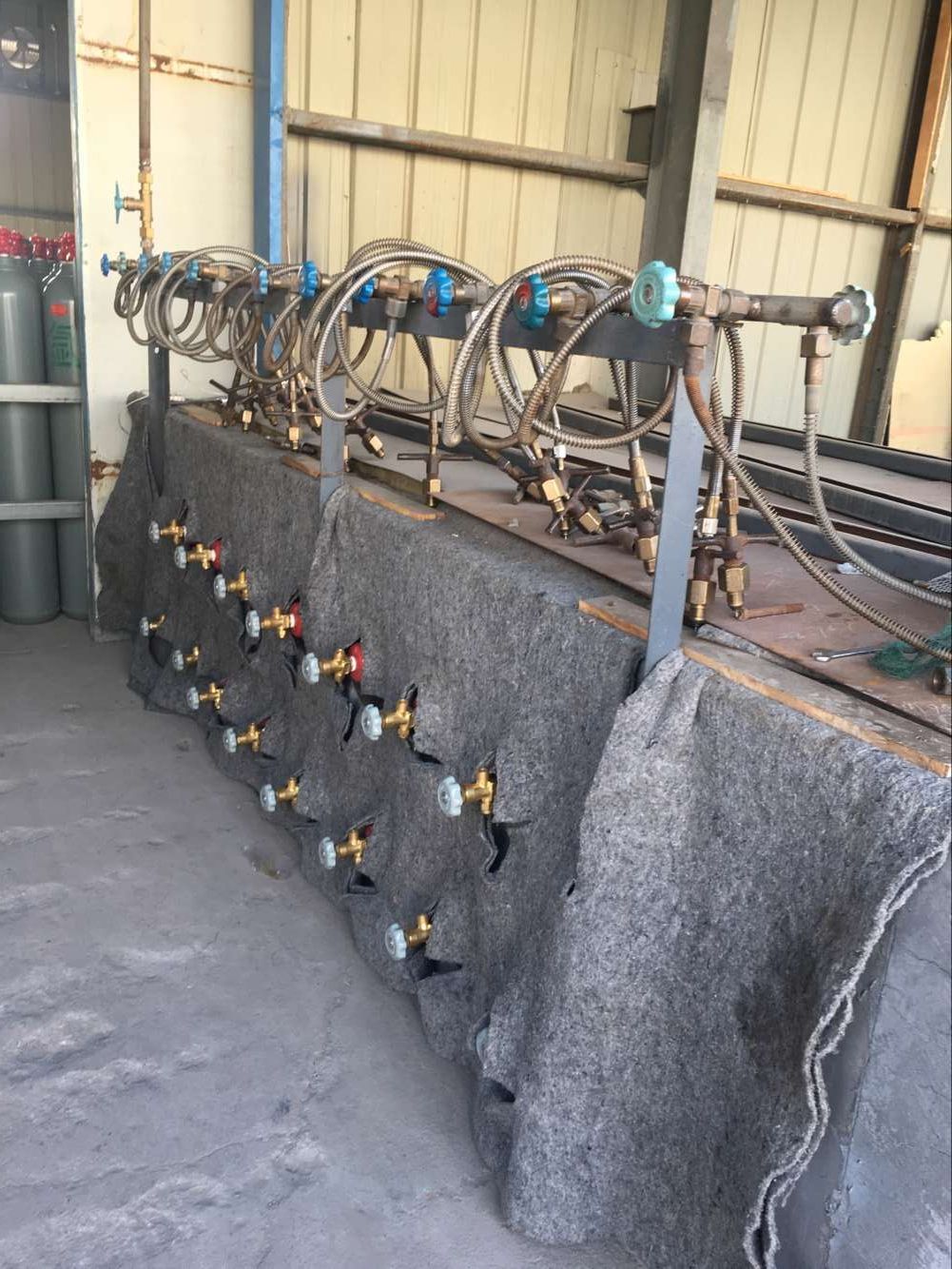

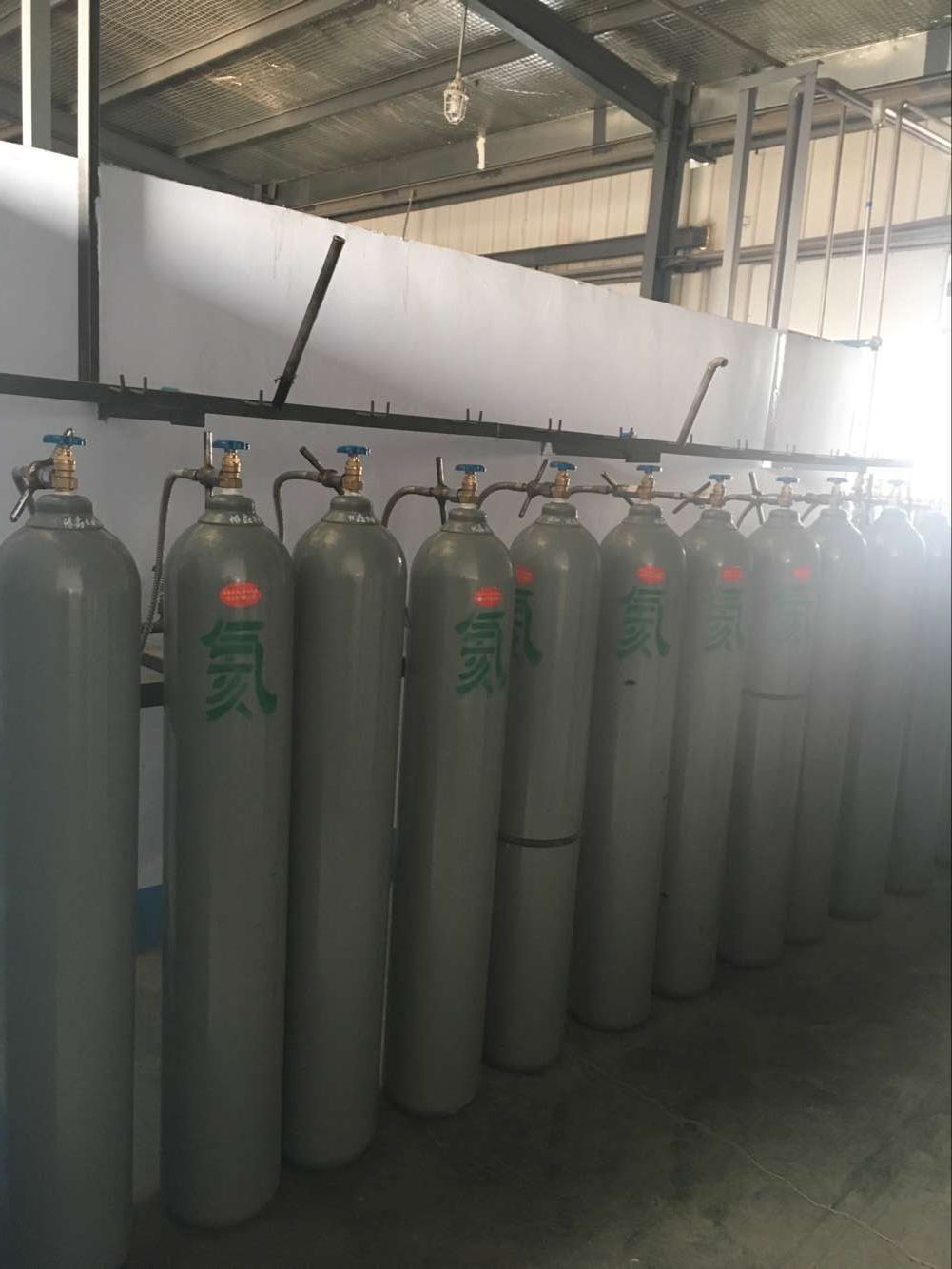

3.The cylinder after the above processing, filling in the filling line.

4. After the completion of the filling: in each of the cylinders for purity test, purity is not qualified cylinders for processing, no shipment.
pay attention to that before use, please open a little bit of the valve and blew the ash off the valve and piping on the grey, because impurities affect the purity of bottle.


Type	(mm) Outside Diameter	(L) Water Capacity	(mm) () Height (Withoutvalve)	(Kg) (,) Weight(Without valve,cap)	(Mpa) Working Pressure	(mm) Design Wall Thickness	Material Grades
ISO102-1.8-150	102	1.8	325	3.5	150	3	37Mn
ISO102-3-150		3	498	5.2
ISO102-3.4-150		3.4	555	5.7
ISO102-4.4-150		4.4	700	7.2
ISO108-1.4-150	108	1.4	240	2.9	150	3.2	37Mn
ISO108-1.8-150		1.8	285	3.3
ISO108-2-150		2	310	3.6
ISO108-3-150		3	437	4.9
ISO108-3.6-150		3.6	515	5.7
ISO108-4-150		4	565	6.2
ISO108-5-150		5	692	7.5
ISO140-3.4-150	140	3.4	321	5.8	150	4.1	37Mn
ISO140-4-150		4	365	6.4
ISO140-5-150		5	440	7.6
ISO140-6-150		6	515	8.8
ISO140-6.3-150		6.3	545	9.2
ISO140-6.7-150		6.7	567	9.5
ISO140-7-150		7	595	9.9
ISO140-7.5-150		7.5	632	10.5
ISO140-8-150		8	665	11
ISO140-9-150		9	745	12.2
ISO140-10-150		10	830	13.5
ISO140-11-150		11	885	14.3
ISO140-13.4-150		13.4	1070	17.1
ISO140-14-150		14	1115	17.7
ISO159-7-150	159	7	495	9.8	150	4.7	37Mn
ISO159-8-150		8	554	10.8
ISO159-9-150		9	610	11.7
ISO159-10-150		10	665	12.7
ISO159-11-150		11	722	13.7
ISO159-12-150		12	790	14.8
ISO159-12.5-150		12.5	802	15
ISO159-13-150		13	833	15.6
ISO159-13.4-150		13.4	855	16
ISO159-13.7-150		13.7	878	16.3
ISO159-14-150		14	890	16.5
ISO159-15-150		15	945	17.5
ISO159-16-150		16	1000	18.4
ISO180-8-150	180	8	480	13.8	150	5.3	37Mn
ISO180-10-150		10	570	16.1
ISO180-12-150		12	660	18.3
ISO180-15-150		15	790	21.6
ISO180-20-150		20	1015	27.2
ISO180-21-150		21	1061	28.3
ISO180-21.6-150		21.6	1087	29
ISO180-22.3-150		22.3	1100	29.4
ISO219-20-150	219	20	705	27.8	150	6.1	37Mn
ISO219-25-150		25	855	32.8
ISO219-27-150		27	915	34.8
ISO219-36-150		36	1185	43.9
ISO219-38-150		38	1245	45.9
ISO219-40-150		40	1305	47.8
ISO219-45-150		45	1455	52.9
ISO219-46.7-150		46.7	1505	54.6
ISO219-50-150		50	1605	57.9

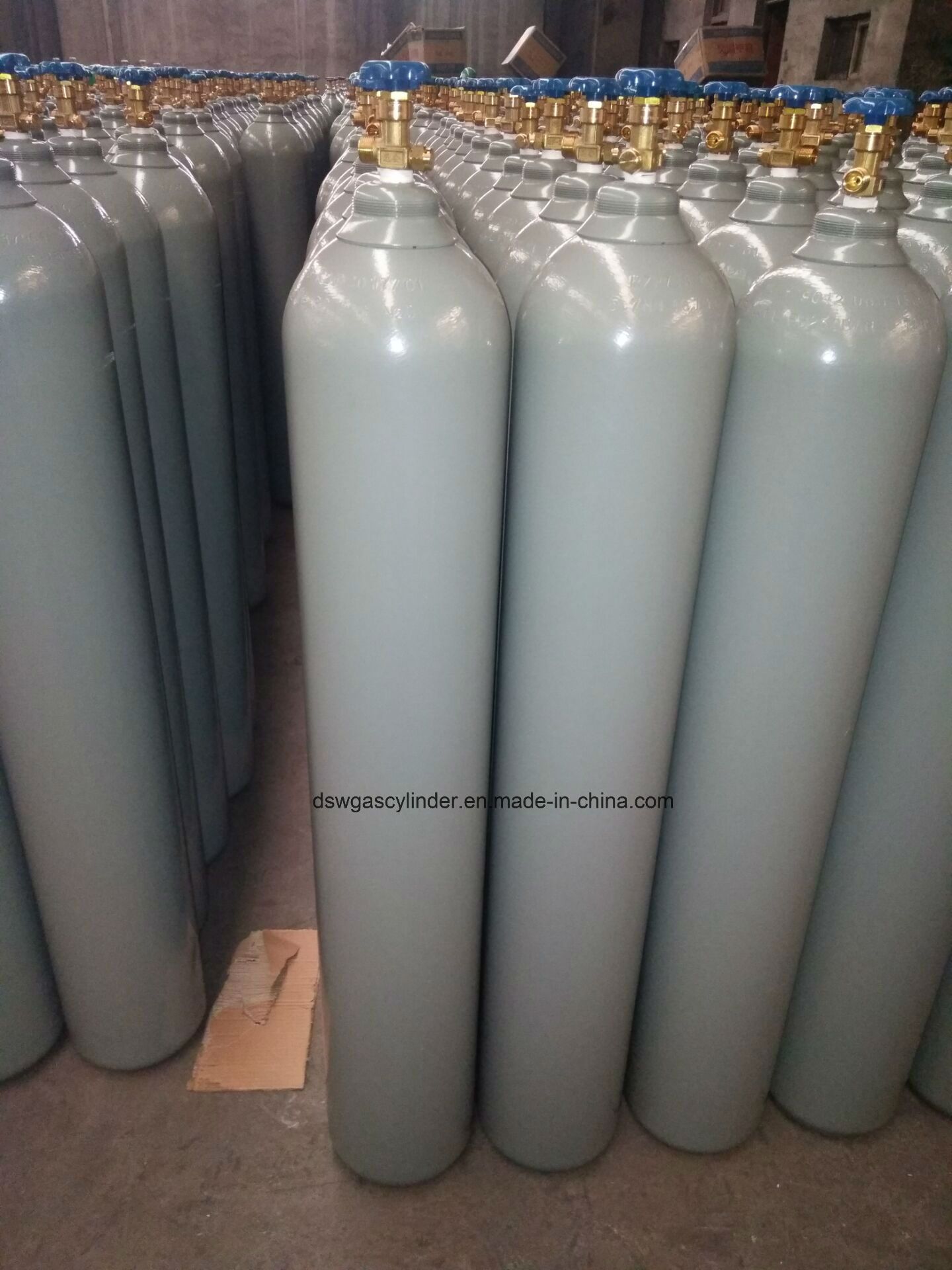

Being a professional manufacturer of gas cylinders, we can produce high-quality seamless steel gas oxygen cylinders from 2L to 68L with different stadard specifications as per your kind request(s). If any interests or some more info needed, pls feel free to contact us!
