| Prod Model: |
HL-Y016 |
| Width: |
Extra Wide up to 3000mm |
| Thickness: |
Extra Thickness up to 500mm |
| MOQ: |
1 Ton |
| Sample Supply: |
Yes |
Product Description

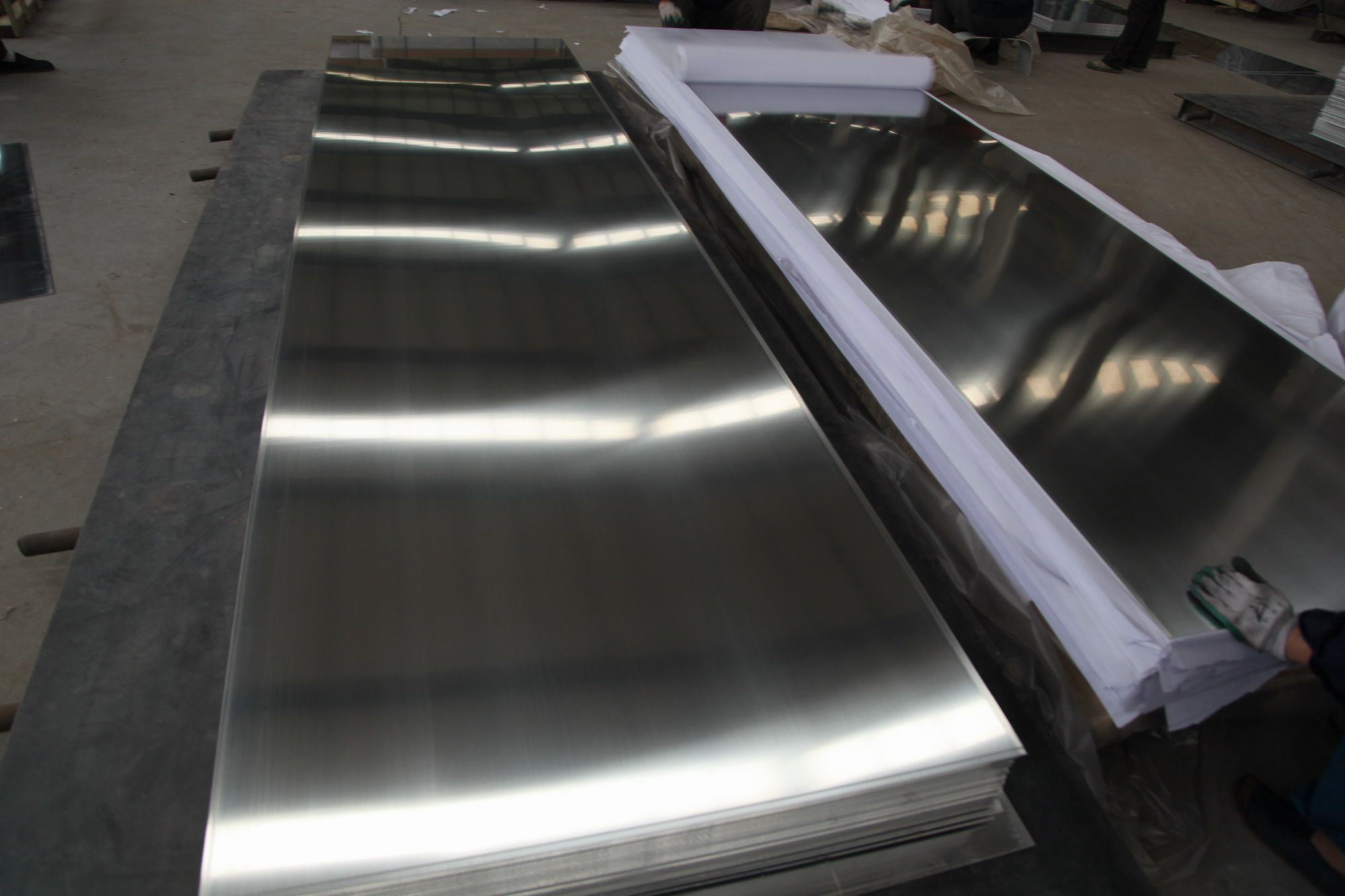

Aluminum plain sheet with various sizes:
1) Alloys: 1xxx, 3003, 3004, 3104, 3105, 5052, 5005, 5083, 5182, 5754, 6061, 6182, 7075
2)Application: Decoration, construction, machinery, marine, moulding, truck-making etc
3) With ISO, SGS Certification.
The Production Process
Rolling begins with huge sheet ingots weighing as much as 20 tons that have been preheated to make them easier to shape. As the size of rolling mills has increased, so has the size of these ingots, but a typical ingot is about 1828mm wide, 6096mm long, and more than 610mm thick.
The ingot is first fed into a breakdown mill, where it is rolled back and forth, reversing between the rolls until the thickness has been reduced to just a few inches. At this point, some plate is removed and readied for shipment. The plate is heat-treated and quickly cooled, or quenched, for added strength and then stretched to straighten and relieve internal stress built up during rolling and heat-treating. Finally, the plate is trimmed and aged at the desired temperature to develop its final properties.
Plate that is slated to become sheet or foil is trimmed after leaving the breakdown mill and sent through a continuous mill to reduce thickness further. Sheet thicknesses are then coiled.
To continue its reducing process, the coiled sheet is heated in a furnace to soften it for cold rolling. Cold rolling is the last step for some sheet. But other types, known as heat-treatable, are subjected to further elevated-temperature processing to increase their strength.
Products and Applications
Plate is used in heavy-duty applications in the aerospace, machinery, and transportation markets.
Aluminum plate, machined to shape, forms the skins of jumbo jets and spacecraft fuel tanks. It is used for storage tanks and containers in many industries and, because many aluminum alloys actually gain strength at supercold temperatures, it is especially useful in holding cryogenic (very-low-temperature) materials.
Plate provides structural sections for rail cars and large ships, as well as armor protection for military vehicles and trucks that carry payroll.
| Type | Features | Applications |
| 6061T6 | Excellent joining characteristics, good acceptance
of applied coatings, relatively high strength, good
workability, and high resistance to corrosion | Aircraft fittings, camera lens mounts, couplings,
marines fittings and hardware, electrical fittings
and connectors, decorative or misc. hardware,
hinge pins, magneto parts, brake pistons, hydraulic
pistons, appliance fittings, valves and valve parts. |
| 3003H14 | Good weldability/formability and very good corrosion
resistance | Food and chemical handling, tanks, trim, litho sheet,
pressure vessels, and piping. |
| 5052H32 | Good workability, very good corrosion resistance, high
fatigue strength, weldability, and moderate strength | Aircraft fuel/oil lines, fuel tanks, other transportation
areas, sheet metal work, appliances and lighting, wire,
and rivets. |
| 2024T3 | Good weldability/formability and very good corrosion
resistance | Structural areas such as aircraft structures, fasteners,
hardware, wheels, screw machine products. |
| 7075T6 | High tensile strength | Used for highly stressed structural parts |
1100 O and
1100H14 | Intrinsic formability and corrosion resistance | Chemical and food handling, sheet metal, hollowware,
heat exchangers, and lighting. |
| 2024T3 | Intrinsic formability and corrosion resistance | Aircraft structures, fasteners, hardware, wheels, screw
machine products |
| 3003H1 | Weldability/formability and very good corrosion
resistance | Food and chemical handling, tanks, trim litho sheet,
pressure vessels, and piping. |
| 5052H32 | Good workability, very good corrosion resistance, high
fatigue strength, weldability, and moderate strength | Aircraft fuel/oil lines, fuel tanks, other transportation
areas, sheet metal work, appliances and lighting, wire,
and rivets |
| 6061T651 | Excellent joining characteristics, good acceptance of applied coatings,
relatively high strength, good workability, and high resistance to corrosion |
