High Quality CA6180 CA6280 Horizontal Gap Bed Lathe Machine
Price: |
US $ 9200-18000/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
CA6180 CA6280 |
Max.swing Over Bed: |
800mm |
Max. Swing Over Carriage: |
540mm |
Max. Swing In Gap: |
1020mm |
Effective Gap Length: |
210mm |
Max. Length Of Work Piece: |
750 1000 1500 2000 2200 3000 4000mm |
Width Of Bed: |
400mm |
Section Of Turning Tool: |
25X25mm |
Spindle Speeds: |
10-1400rpm/16-1400rpm |
Hole Through Spindle: |
52mm. |
Spindle Taper: |
MT6 |
Type: |
Horizontal Lathe |
Processing Accessory: |
Chuck CNC Lathe |
Tool Holder: |
Single-tool Holder CNC Lathe |
Power Source: |
Mechanical Drive |
Controlling Mode: |
Artificial |
Automatic Grade: |
Automatic |
Setting Mode: |
Floor-type |
Precision: |
High Precision |
Product Description

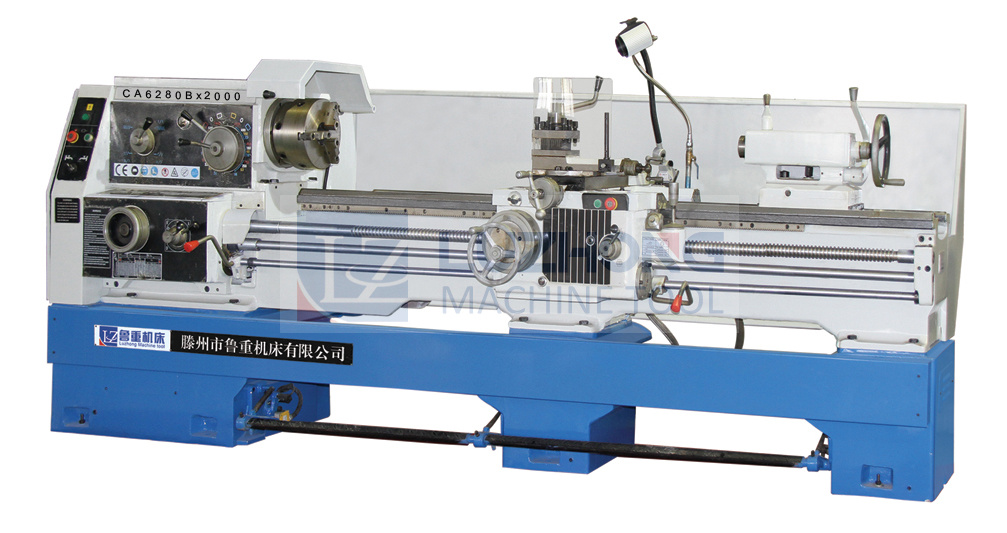

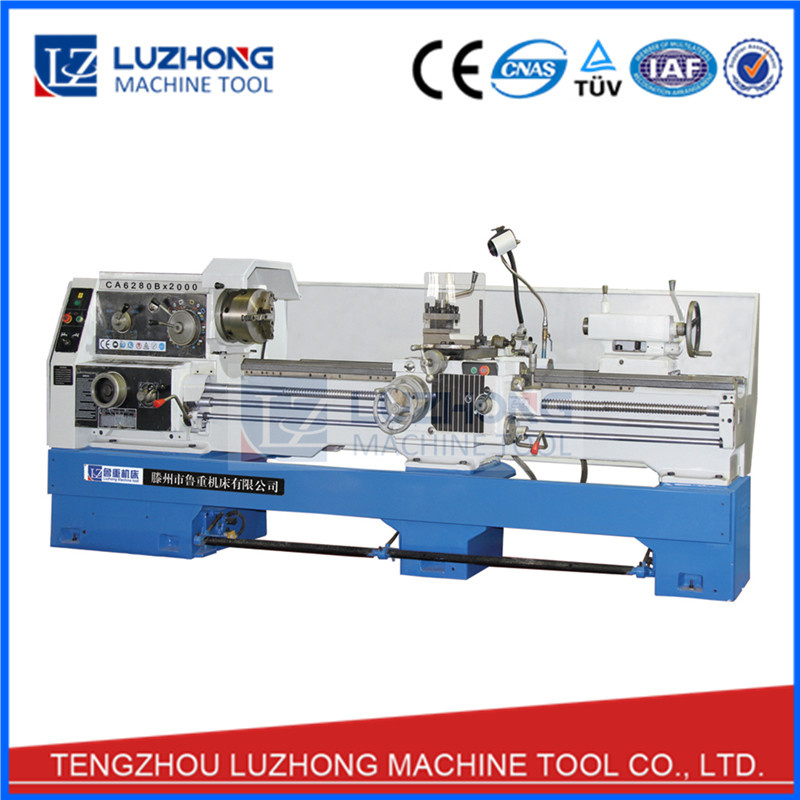

High Quality CA6180 CA6280 Horizontal Gap Bed Lathe Machine
Product pictures: The main performance characteristics:1 Machine tool bed box, headstock and tailstock, pallet etc. the binding surface between the manual scraping machine, after rigorous testing, the precision and stability of the effective guarantee machine.2 The machine adopts high strength cast iron, copper and chromium added special materials, bed width 400mm, bed rail quenching depth 4mm, effectively improve the wear resistance and stability of machine tool.3 Machine tool bed box lubricated system by the use of the lubrication of the pump for lubrication, for the hot weather, to ensure the cleanliness of the bed box and heat dissipation characteristics, effectively extend the bearing and gear life.4 Machine tool spindle using Wafangdian bearing, spindle hole diameter 52mm, the precision grinding machine tool gear, effectively improve the hardness, reduce machine noise.5 Machine tool uses the domestic brand screw, wire mother uses the high quality bronze alloy to guarantee the wear resistance and the accuracy retention.6 Machine tool with four position high strength tool, shank size: 25x25mm.Application:1 CA series of ordinary horizontal lathe is suitable for turning inside and outside cylindrical surface, conical surface and other rotating surface, turning various metric and inch, modulus and pitch thread, and can carry out the work of drilling and pulling oil groove, is a very versatile horizontal lathe, widely used in all kinds of shaft and disc parts of the batch processing.2 This series of lathe bed width in general lathe, rail width 400mm has a high stiffness; guide rail surface is quenched by medium frequency, and is durable.3 The machine operation is flexible and concentrated, the apron with fast moving mechanism. Using single handle vivid of the operation, pleasant and good..4 Machine tool structure rigidity and transmission rigidity are higher than the general lathe, the power utilization ratio is high, is suitable for the strong cutting.5 Machine tool factory in strict accordance with the test procedures for testing, and make a strong cutting test, to ensure that the machine has a good accuracy and reliability. Product main technical specifications:Specifications | CA6180 CA6180B CA6180C | CA6280 CA6280B CA6280C |
Max. Swing over bed | 800mm |
Max. Swing over carriage | 540mm |
Max. swing in gap | -- | 1020mm |
Effective gap length | -- | 210mm |
Max. length of work piece | 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm |
Width of bed | 400mm |
Section of turning tool | 25x25mm |
Spindle | Spindle speeds | 10-1400rpm/16-1400rpm(24steps) |
Hole through spindle | 52mm. (80mm). [105mm] |
Spindle taper | NO.6(MT6)(Φ90 1:20)[Φ113 1:20] |
Feed | Number of feeds | 64 kinds(for each) |
Range of metric threads(kinds) | (1-192mm)44kinds |
Range of inch threads(kinds) | (2-24tpi)21kinds |
Range of module threads(kinds) | (0.25-48)Moduie39kinds |
Range of pitch threads(kinds) | 1-96DP(37kinds) |
Tailstock | Max. tail stock spindle travel | 150mm |
Tail stock spindle diameter | 75mm |
Taper of tail stock spindle center hole | NO.5(MT5) |
Main motor | 7.5KW(10HP) |
Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750 |
Overall dimensions for1000mm | 2700x1140x1750 |
Overall dimensions for1500mm | 3200x1140x1750 |
Overall dimensions for2000mm | 3700x1140x1750 |
Overall dimensions for2200mm | 4030x1140x1750 |
Overall dimensions for3000mm | 4850x1140x1750 |
Overall dimensions for4000mm | 5800x1140x1750 |
Weight (kg) | Length | G.W N.W. |
Weight for 750mm | 2520 2400 |
Weight for 1000mm | 2720 2560 |
Weight for 1500mm | 2980 2800 |
Weight for 2000mm | 3260 3087 |
Weight for 2200mm | 3490 3287 |
Weight for 3000mm | 4200 3887 |
Weight for 4000mm | 4850 4500 |
The Package of High Quality CA6180 CA6280 Horizontal Gap Bed Lathe Machine is export standard plywood case with iron plate below ,very strong and durable .
The High Quality CA6180 CA6280 Horizontal Gap Bed Lathe Machine will be shipped to customers by land freight or sea freight .
