High Quality SSTP Cat7 Patch Cord Cable with ETL Certified
SSTP Cat7 patch cable with UL listed
1. Cat5e/Cat6/Cat7 Patch cable
2. Passed Fluke test
3. UL CE ROHS ISO9001 certification
4. Testing to 500MHz;

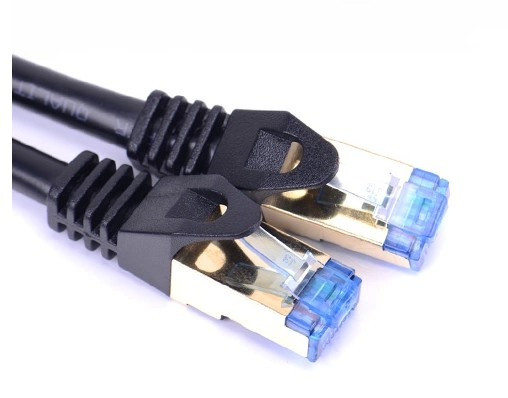

RJ45 cat7 network sstp patch cord cable with plugs
Description
Cat7 fixed length network cables are the perfect combination of value and performance. Available in a large assortment of colors and lengths, we have a cable to fit every situation. Each cable is made of 24AWG, 26AWG pure copper listed pair conduits with 50u" gold plated contacts (short body). Most budget cables skimp with 10u". Each cable features color matched, snagless, strain relief boots.
Feature or Specification
1. The cable connects all the hardware destinations on a Local area network.
2. With snagless molded strain relief, this cable's rj45 tap is protected from being damaged durning installation
3.7 copper wires Ø 0.20mm (0.008''), 24 awg
4. It features 50 micro gold plated rj45 (male to male) connectors which ensure clear transmission.
5. Features: Gold plated connectors
6. Compliance Standards: EIA/TIA-56B catagory 6
7. Connector(s): 1× Rj-45 -male
8. Jacket: Polyvinylchloride(PVC), Polyethylene(PE) or low smoke zero halogen(LSZH)
9. CE, ROHS compliant
Electrical Characteristic:
1.0-100.0MHz Impedance (ohms): 100 +/- 15
1.0-350.0MHz Delay Skew (ns/100m): <=45
Pair-to-Ground Capacitance Unbalance (pF/100m): <=330
Max. Conductor DC Resistance 20 degree(ohms/km): 93.8
Resistance Unbalance (%): <=5
Working Temperature: -5° C~+50° C
Storage Temperature: -20° C~+60° C
| Product: | Patch cord |
| Category: | Cat 5e, Cat6, Cat 6a, Cat7 |
| Shirleding: | UTP, FTP, SFTP, SSTP |
| Connector | RJ 45 connector |
| Conductor | Bare copper, CCA ( copper clad alunimum) or CCS ( copper clad steel) |
| Guage | 22AWG, 24AWG, 26AWG, 28AWG, 30AWG |
| Insulation | HDPE |
| Shirleding | Aluminum foil and Braiding |
| Jacket | PVC, LSZH. |
| Color | Black, white, grey, blue, red, orange ,yellow, purple,green ,transparent ^ |
| OD | 5.0mm, 5.2mm, 5.4mm, 5.7mm ... |
| Length | 0.25m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, 50m, 80m,100m,etc |
| Compliance | ATC, UL, ETL, CE, RoHS, REACH |
| Application | 1.PC with Switch, Hub, ADSL, Router, Wall Socket, Network Module Plate,etc.
2.Connect 2 XBOX consoles for multi player gaming
3.ADSL, Modem with Hub or Router |
| Compatibility | 100 Base-T4
100 Base-TX
100VG-AnyLAN
1000 Base-T(Gigabit Ethernet)
155 Mbps ATM
622 Mbps ATM |
| Package | Polybag,Zip bag,OPP bag, bag with paper card, gift box, blister or Customized |
| ELECTRONICS |
| QC | 100% open and short test |
| Voltage | DC300V 5M ohm/10ms |
| Insulation Resistance | 10M ohm min |
| Contact Resistance | 3 max |
| Working Temperature | -25C-80C |
Established in 1992, Ningbo Fulsan Trading Co., Ltd. is a modern enterprise specialized in research, develop and produce all kinds of telecommunication products. It's main products include HDMI cable, Scart Cable, computer connector, Audio and Video Cable, USB cable, and other accessories. The products are totally exported to the world market especially to US., Europe, Middle East Asia, Russia and has earned high reputation from our customers.

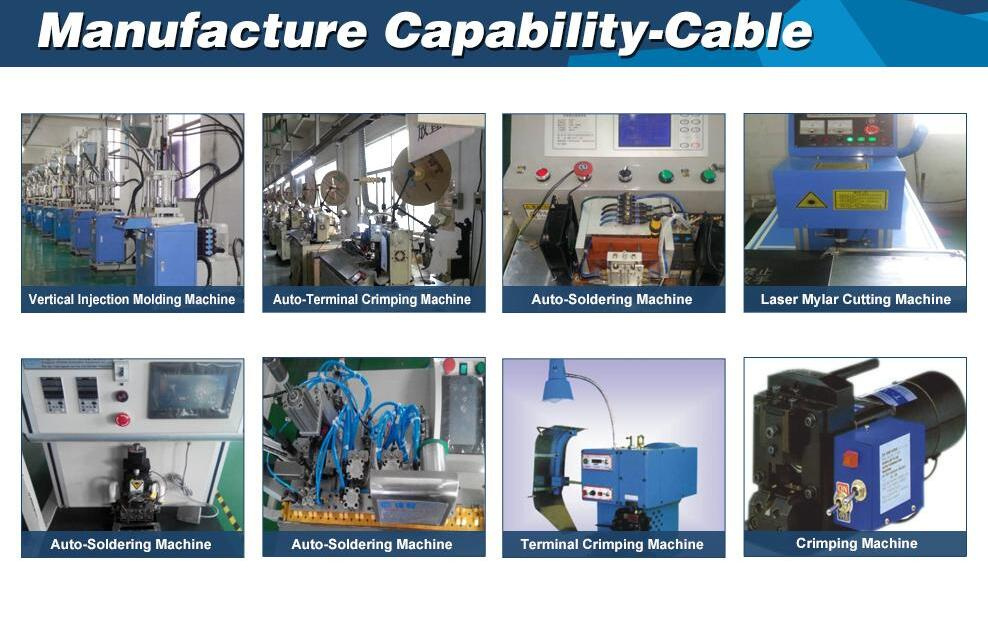

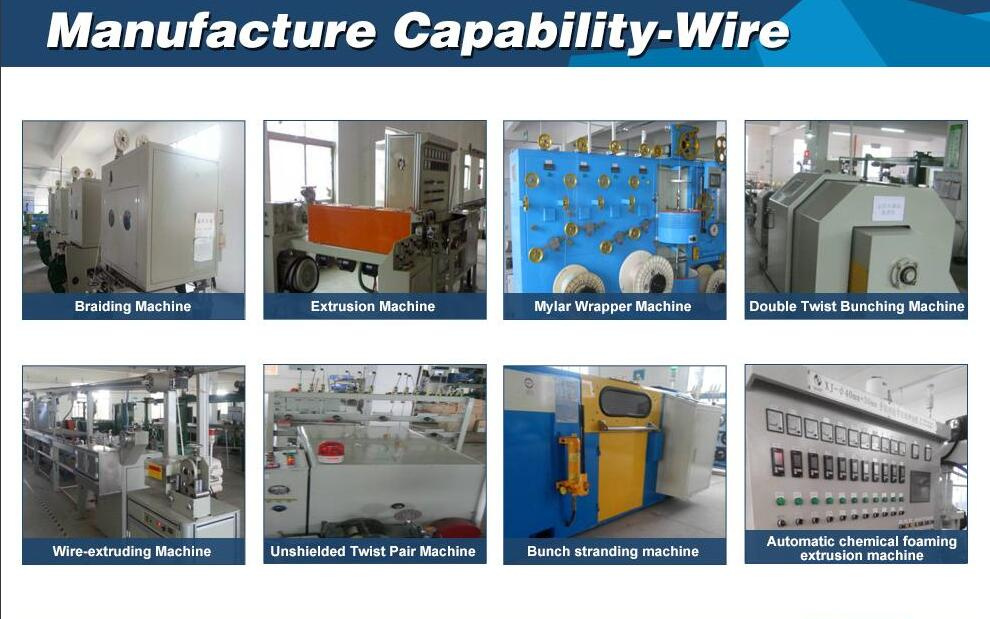

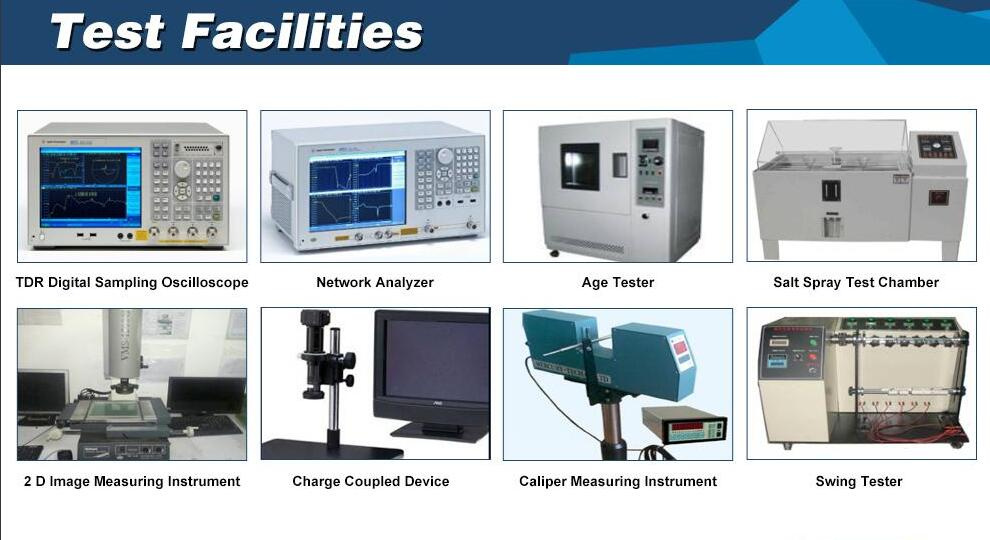

The company owned well-trained and skillful personnel, including outstanding engineer and technician team and managers and quality control team as well as 1200 workers. The company occupied 200, 000 sqms working area and has introduced many modern and advanced manufacturing machines and inspection equipment. The total assets has reached 52 million and was honored as Hi-Tech Enterprise and Strenth model factory by Zhejiang Government.
The principle of our company is " Guided by science and technology, take production and quality as the foundation, investment and management as the guarantee, with the backing of brand and marketing for omnidirectional development"...The company has passed the certification of ISO9001quality system and ISO14001 environment system. All the products are accordance with RoHS Standard while the HDMI cable also got the HDMI Association certification. Our brand " FULSAN" Has won a good reputation among our customers.
Looking into the future, we will always adhere to the managing idea of " Developing the industry, serving and repaying the society". We are willing to advance hand in hand with friends from all walks of life for mutual benefit.
