| Price: | US $ 6500-8000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |

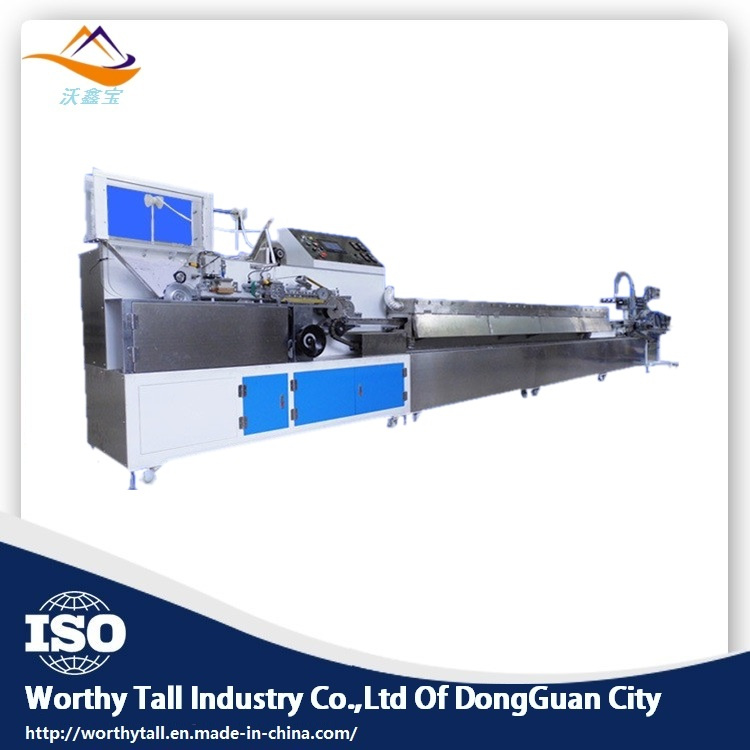

| Specification | production:800-1200pcs/min (The machine only needs 2 employees) Power:6KW Voltage:380V Weight:1500KG Size:L:9.5m × W:1m × H:1.4m (304 stainless steel) |
| Suitable stick | Plastic, Paper, Bamboo, Wooden stick |
| The main parts table | Touch screen console Mitsubish PLC Taiwanese inverter AirTag cylinder and solenoid valve Taiwanese Gear motor The centrifugal blower Delixi and omron electronic accessories |
| Main Function of the machine | 1,rolling the cotton to the stick 2,drying the cotton stick by closed hot air circulation 3,automatic packing the cotton stick by robot hand 4 ,you can make the finished cotton swab all by this one set machine |
| Introducing | 1.The machine adopts closed hot air circulation energy saves, the power of machine is 6 KW cotton swabs go through in the oven, drying by the hot air circulation , when go out of the oven the water content of swab is no more than 1%, it is true dry. 2. The counting part use the japan imported high precision optical fiber, which ensure the counting precision. 3.Self detect function which ensure the stable of the machine and protect The machine and shows the error code when there is something wrong with the machine. It will show you how to deal with the problem by the hint of the error code. 4. The tail packing parts adopts automatic counting and robot hand, which makes the accurately number of each packing. |
| General Model: WT-CS01A | High Grade model: WT-CS01B | |
| Max.Speed | 1200pcs/min | 1800pcs/min ( new design) |
| Mould | Brass material. average service life about 3--5 years. | High-precision stainless steel material. average service life up to 8--10 years. |
| Machine parts | Electrical parts:TaiWan -- Shihlin. Pneumatic parts: Taiwan-- AirTag. | Electrical parts:France -- Schneider. Pneumatic parts: Japan -- SMC. |
| Surface | Adopt good quality baking finish. | High quality stainless steel. Beautiful and easy to clean. |
| Operation Panel | Good quality and modern design. Easy to operate. | Easy to operate. |
| Remark | we make the packing unit by customer | we make the packing unit by customer |
| General Model: WT-CS02A | High Grade model: WT-CS02B | |
| Max.Speed | 1200pcs/min | 1800pcs/min |
| Mould | Brass material. average service life about 4--6 years. | stainless steel material. average service life up to 8--10 years. |
| Machine parts | Electrical parts:TaiWan -- Shihlin. Pneumatic parts: Taiwan -- AirTac. | Electrical parts:France -- Schneider. Pneumatic parts: Taiwan -- AirTac. |
| Surface | Adopt good quality baking finish. | High quality stainless steel. Beautiful and easy to clean. |
| Operation Panel | Good quality and modern design. Easy to operate. | Easy to operate. |
| Stick | Bamboo, Wooden,Paper | Bamboo, Wooden,Paper |
| Length/Diameter | Length: 80 -- 120mm / diameter: 2.0 -- 2.5mm (other size customized) | Length: 80 -- 120mm / diameter: 2.0 -- 2.5mm (other size customized) |
| Delivery (4 packages) | |
| Weight | 2044KG |
| Size | 15CBM One set cotton buds machine/cotton swab machine need a 20ft container. |
| Details | 2460*820*1690mm 2515*1565*1250mm 2500*800*1600mm 1200*950*1100mm |
| Delivery Time | 15-35days |
| Prod Model: | WT-CS01B |
|---|---|
| Production: | 800 PCS/Min |
| After-Sales Service: | Warranty 12month |
| Power: | 220V/110V 0.75kw |
| Operater: | 1person/2 Machine |
| Certification: | SGS |
| Ethylene Oxide Sterilization: | Ethylene Oxide Sterilization |
| Application: | Hospital |
| Group: | Female |
| Logo Printing: | With Logo Printing |
| Material: | as Customer's Requirements |
