| Price: | US $ 8500set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C |
Function:

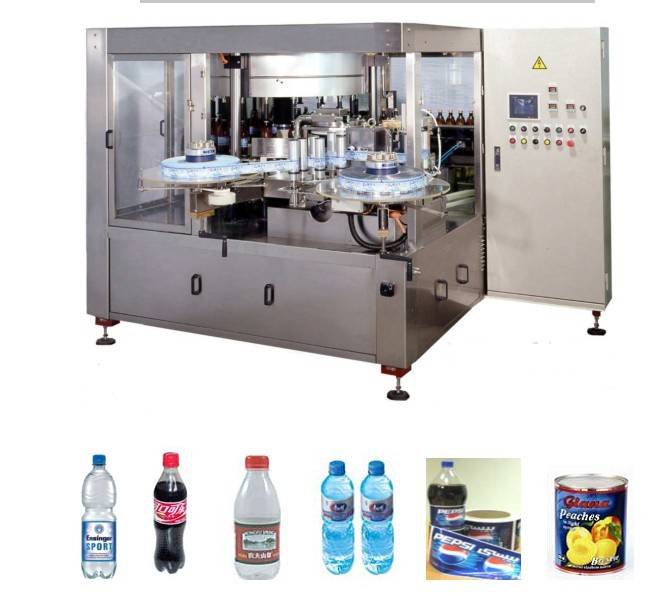

It's a automatic linear round bottle hot melt adhesive labeling machine. It can label the OPP,BOPP and art paper in
the round bottle with cold melt. It's economic because you just need put the melt in both end of the label.It's widely
used in drink,soy, disinfectant industry.
Technical Parameter:
Measurement (mm)(L*W*H) | 3340 L* 2000 W * 2100 H mm.(The height of workshop should over 3m) |
Conveyer belt(Please be careful of the connect way) |
|
N.W/G.W(kgs) | 3000 |
Object to Apply | columniform containers (The labelling part is vertical) |
Bottle material | PET,glass,metal |
Glue | hot melt adhesive or cold melt |
Label material | PP,BOPP,PS,PE,PVC,composite membrane,paper, |
Label | In roll |
Inner dia. of label | 152mm |
Container range(mm)
| Φ50-φ110 |
Height:25-360
| |
Label Range (mm)
| Height:15-150(customizable) |
Label Speed(pc / min) (It bears on the size of the container and label) | 100-800/min(600ml bottle) |
Power | AC 3φ, 380V/50HZ 12KW |
Compressed air | 10kg/cm2 |
Gas consumption | 1m3/hour |
We can customize your order if you have special demands | |
Character of machine :
1.The way of labelling stand style bottle for a cycle,or not a cycle,The label cutting automatic , adsorb
gule automatic then paste label only in both ends.hot melt glue melting, gluing, back glue,all by automatic
hot melt glue recycling is not wasted.
2.Infinitely variable speed control system,automatic testing according to feed system,adjust working speed by
automatic ,then make the labelling machine keep best production speed for ever.
3.separate bottle into feeding by plate ,the bottle bot fall when high speed operated.
4.The host controller with variable frequency control for three-phase induction motors drive
5.Synchronous tracking by Servo motor ,vacuum drum adsorb with special design.
6.gearing design of transmission way ,Consistently accurate when high speed labelling
7.When gearing design run with into bottle or the torsion abnormal.The machine will stop automatic .
8.Label position can adjust up and down.
9.Can not paste when the machine not in the set temperature.
10.The machine will stop and alarm when no label.
11.The hot melt adhesive machine adopt constant speed ac drive and gear pump with low or high rate of the glue.
12.Germany EL automatic adjustment guide system ,This kind of electric eye a kind of digital tunoscope
which is ultrasonic and non-contact ,adjust label location automatic .
13..the drop hight of both end less than 1MM
Standard mechanical configuration:
1.bottle feeding screw
2.feeding plate
3.Bottle out plate
4.Center guide plate
5.baseplate of carry bottle bottom
6.vacuum drum: Strong suction absorb the stickers and cover the labels onto the bottle tightly.
7.bottle rotate control lobe plate.
8. The tag smoothing brush
9.Melting gule machine:melting the block gule
10.cutter wheel: cut the roll labels into a single label at a specific location.
11.glue wheel: coat the hot melt glue onto the tip and tail of the label
12. belt pressure standard wheel: press the bottle so that label firmly affixed on the bottle.

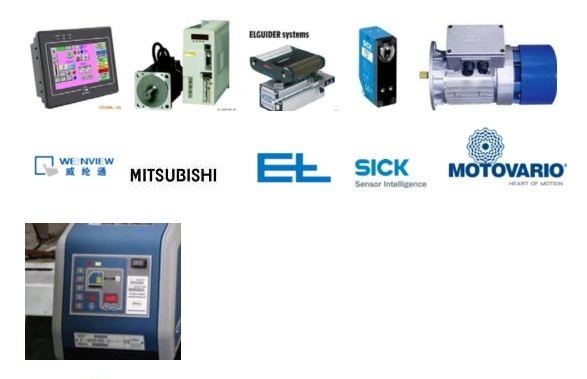

Standard Electrical configuration:
1.Nordson.Melting gule machine: USA Nordson
2.Tags corrective guide is system - German E L.
3.PLC: Japanese Mitsubishi
4.servo motor - Japanese Mitsubishi
5.servo drives - Japanese Mitsubishi .
6.Power Motor German SEWMITSUBISHI.
7.Drive - German Schneider.
8.Sensor - Germany SICK.
9.Touch screen - Taiwan Weinview.
10 Pneumatic Components - Japanese SMC
| Prod Model: | JKL1200 |
|---|---|
| Voltage: | Customerized |
| Automatic Grade: | Automatic |
| Application: | Dairy Products |
| Type: | Automatic Labeling Machine |
| Driven Type: | Electric |
| Packaging Type: | Bottles |
| Applicable Industry: | Food Industry |
