High Temperature Resisatant Heat Proof Filament Basalt Fiber Fabric
Price: |
US $ 3/Square Meter |
Min Order: |
50/Square Meter |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Prod Model: |
BST-BF |
Near Port: |
Shanghai, Ningbo |
Width: |
58/60" |
Material: |
Basalt |
Applications: |
Heat Insulation |
Type: |
Woven |
Style: |
Woven |
Pattern: |
Upon Request |
Gram Weight: |
Upon Request |
Product Description

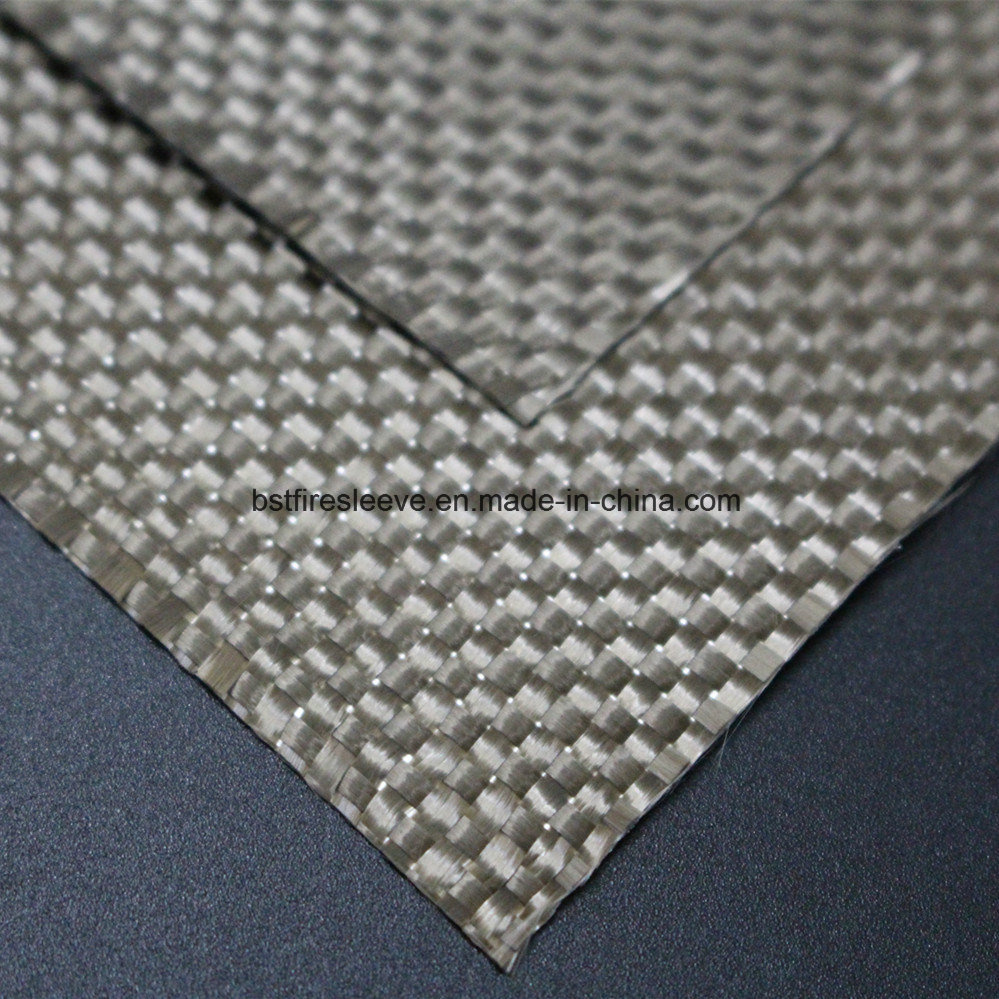

BST-BF Filament Basalt Fiber Fabric - fireproof fabric is woven from continuous filament basalt yarn which can be made into different thickness. It is enviromentally friendlu, and electrical insualtion, corrosion resistant, flame retardant, resistant to high temperature.

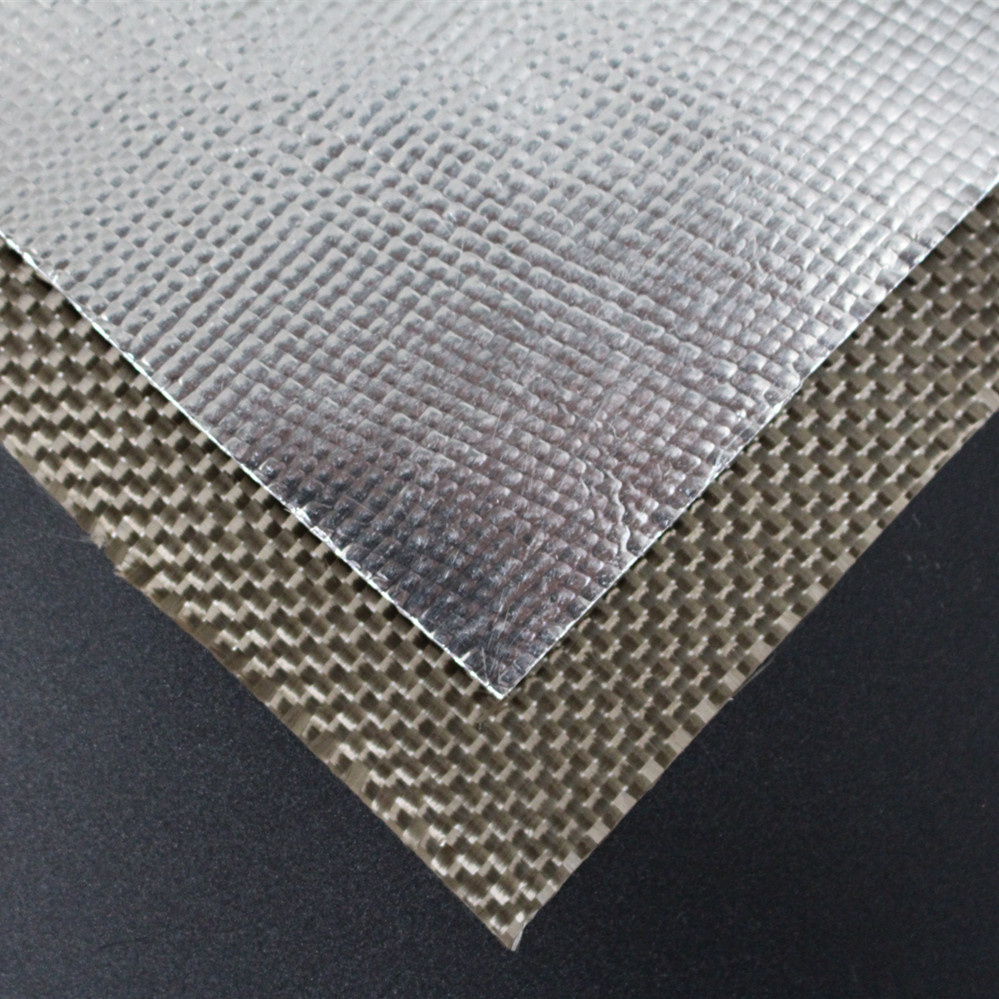

Available with PSA adhesive backed.
It is used for equipment protection, welding curtains and blankets.
DATASHEET |
Part NO. | Style | Weight | Thickness | Width | Length | Density(10m/m) | Yarn |
g/m2 | mm | mm | m | Wrap | Fill |
BST-BF-0.046P | Plain | 100 | 0.046 | 500-1500 | 100 | 15 | 15 | 9μ33tex |
BST-BF-0.066P | Plain | 145 | 0.066 | 500-1500 | 100 | 11 | 11 | 9μ66tex |
BST-BF-0.092P | Plain | 200 | 0.092 | 500-1500 | 100 | 15 | 15 | 9μ66tex |
BST-BF-0.092P10 | Plain | 200 | 0.092 | 500-1500 | 100 | 10 | 10 | 11μ100tex |
BST-BF-0.111P | Plain | 240 | 0.111 | 500-1500 | 100 | 12 | 12 | 11μ100tex |
BST-BF-0.138P | Plain | 300 | 0.138 | 500-1500 | 100 | 5.6 | 5.6 | 13μ264tex |
BST-BF-0.138P5 | Plain | 300 | 0.138 | 500-1500 | 100 | 5 | 5 | 13μ300tex |
BST-BF-0.184P | Plain | 400 | 0.184 | 500-1500 | 100 | 5 | 5 | 13μ400tex |
BST-BF-0.207P | Plain | 450 | 0.207 | 500-1500 | 100 | 5.6 | 5.6 | 13μ400ex |
BST-BF-0.303P | Plain | 660 | 0.303 | 500-1500 | 50 | 5 | 5 | 13μ660tex |
BST-BF-0.368P | Plain | 800 | 0.368 | 500-1500 | 50 | 5 | 5 | 13μ800tex |
BST-BF-0.092T | Twill | 200 | 0.092 | 500-1500 | 100 | 8 | 7 | 13μ132tex |
BST-BF-0.161T | Twill | 350 | 0.161 | 500-1500 | 100 | 7.2 | 7.2 | 13μ240tex |
BST-BF-0.138T | Twill | 300 | 0.138 | 500-1500 | 100 | 5 | 5 | 13μ300tex |
BST-BF-0.161T | Twill | 350 | 0.161 | 500-1500 | 100 | 5 | 5 | 13μ350tex |
BST-BF-0.257T | Twill | 560 | 0.257 | 500-1500 | 50 | 7 | 7 | 13μ400tex |
BST-BF-0.414T | Twill | 900 | 0.414 | 500-1500 | 50 | 5.6 | 5.6 | 13μ800tex |
