| Prod Model: |
R010 |
| Size: |
Customized |
| Color: |
Customise |
| Material: |
Aluminum Alloy |
| Open Style: |
Swing |
| Frame Material: |
Aluminum Alloy |
| Screen Netting Material: |
Fiberglass |
| Style: |
Modern |
| Opening Pattern: |
Horizontal |
| Function: |
Insulation Index: Uw≤2.6W/M2.K |
| Surface Finishing: |
Finished |
| Security Rating: |
A |
Product Description

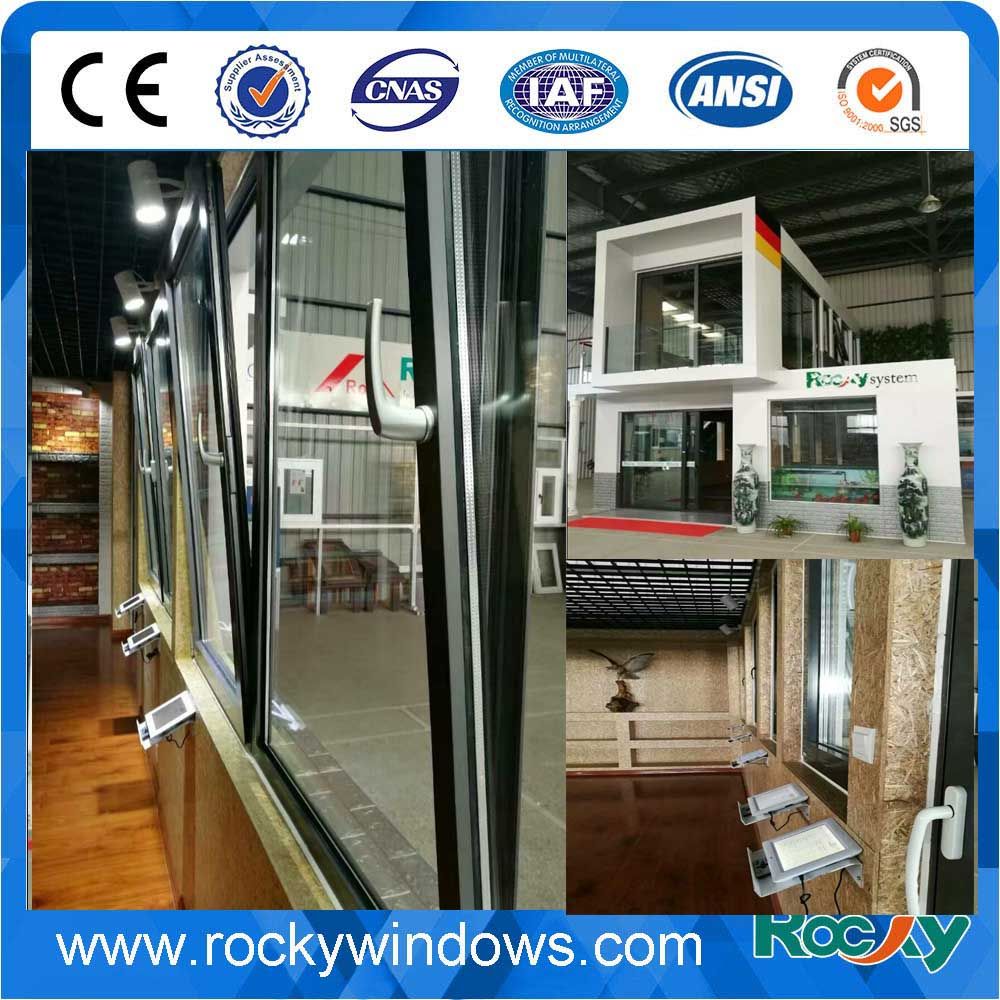

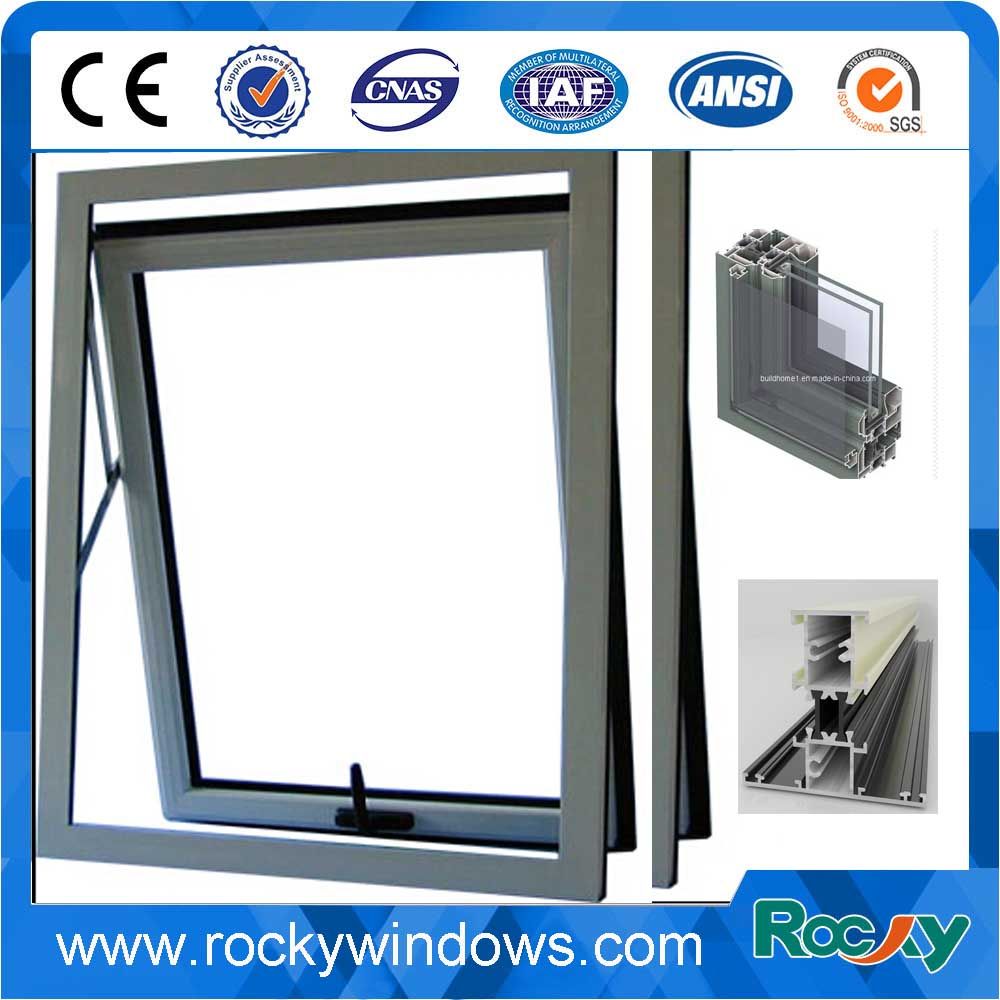

Highly energy saving Awning Windows For passive House
1. Technical Feature
| Technical requirements | Performance level |
Window insulation performance
(W/(m2•k)) | Uw<1.3W/m2K |
Frame insulation performance
(W/(m2•k)) | Uf<1.6W/m2K |
Air tightness
(m3/(m•h)) | EN12207 Level 4 |
| Water tightness (Pa) | 8A |
| Wind pressure resistance (kPa) | C5 |
2.product Description
| Name | Aluminium Window |
| Frame | 1.Chinese Top Trademark,The mix tropical profile,High anti UV. 2.German Veka and rehau.
3.Lead Free |
| Color | 1.White
2. Woodgrain
3.Co-extrusio
4.as RAL |
| Glass | 1.Single Glass--5mm, 6mm, 8mm, 10 mm, 12 mm
2.Insulated Glass--5mm + 9A + 5mm, 5mm + 12A + 5mm, 5 mm + 16A + 5 mm, etc.
3.Laminated Glass-6.38 mm, 8.38 mm, 8.76 mm, 10.76 mm, etc.
4.Low E Glass
5.Reflective Glass
6 Vacum glass and so on . |
| Hardware | 1.Chinese Top Trademark-Kinlong, Guoqiang,.
2.German Trademark-ROTO, Siegenia Aubi |
| Screen | Retractable Screen, Fixed Screen, Sliding Screen, etc which can be fiberglass screen or aluminum mesh. |
| Rubber Strip | EPDM |
| Packing | Carton Box + Pallet, wooden case , plywood case and so on . |
CERTIFICATE
FAQ
What is your delivery time
Rocky: it is within 25 days for one 20' container.
What is your sample policy
Rocky: The sample is free, you have to pay the freight charge. The sample will be finished within on week.
What is Lock system
Rocky: Commonly German brand, China top brand.
What Color is for your windows?
Rocky: We can supply various color to match your house, you can talk to our Rep.
What is Quality Control system?
Rocky
5 steps:
A, After order confirmed, we have a meeting with the main peoples who work for workshop before production,investigate all the workmanship and some technical problems, ensure all of them have related ways to settle and control.
B, Inspect all the materials when arrived, ensure they will be catched up customers's requirements.
C, Inspect the semi-finished goods.
D, Inspect the finished products.
E, Final inspection when pack up all the goods.if there is not any problems for this step,our QC will issue the inspection report and release this products.
Qingdao Rocky Technical Glass Co., Ltd. Located in Lingang Industrial Area, Jiaonan, Qingdao, the western of Jiaozhou Bay, has the industrial factory of 60, 000m2, and is one of the best professional high-end energy-saving glass and aluminium windows and curtainer wall manufacturer in Shandong Province and also is the member of Saint-Gobain Glass China Club.

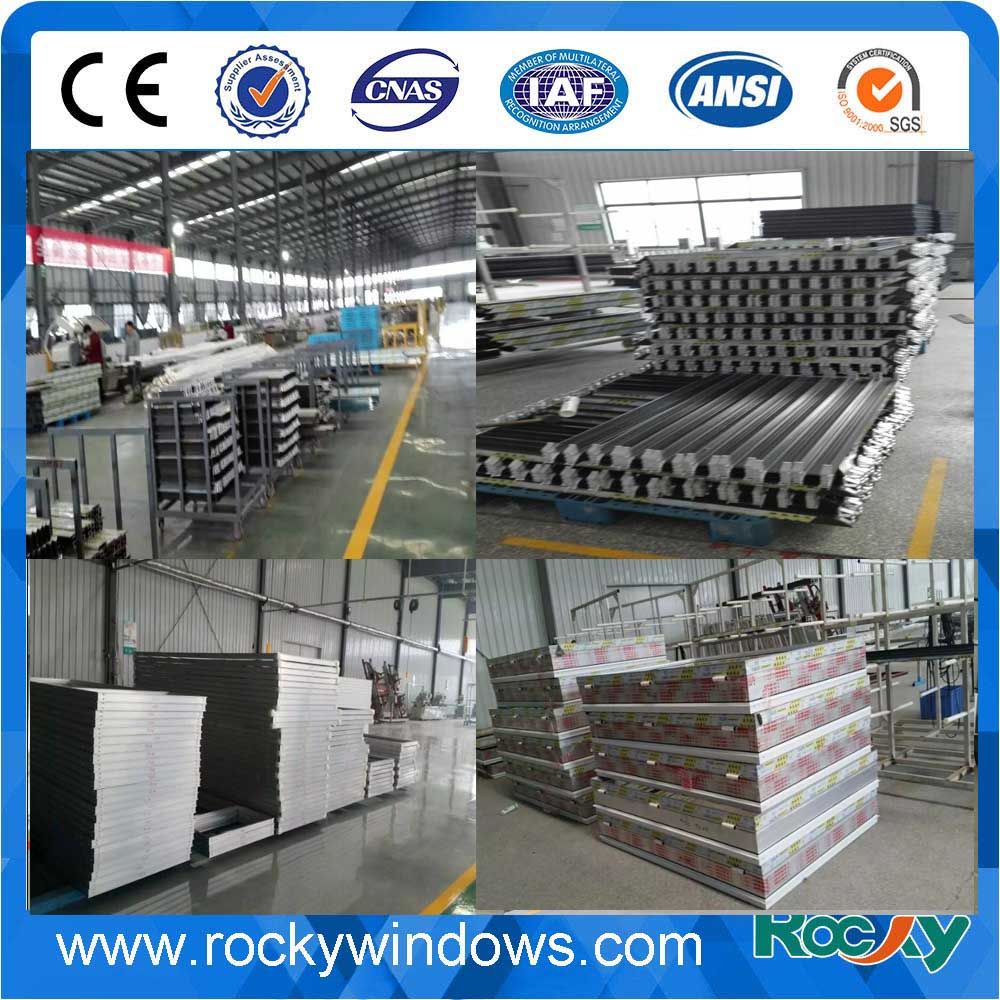

With an investment of USD 6 million, the company is equipped with the most advanced equipments in glass cutting, edging, drilling and cleaning system, one double chamber tempered glass production line, two insulating glass production lines, one laminated glass production line and one screen printing production line, so we can process general safety glass for buildings and industry, the most high-end single-silver and double-silver LOW-E glass. We can annually produces tempered glass of 1.2 million square meters, insulating energy-saving glass of 300, 000 square meters and laminated glass of 200, 000 square meters. And aluminium factory produce aluminium windows, curtain walls 30000 sqm/month.
Our company lays stress on technological leadership and strictly controls the quality. Our quality management system accords with GB/T 19001-2000 idt ISO9001: 2000, and our products have passed the certifications of CCC, EU and CE.
