Produce Process
Double Sided Tape(QD201212EVA)
1)Features
1.Coating black foam with Acrylic adhesive on both sides.
2.Suit to metal ,PP ,PE,EVA and so on.
3.Can be used in a wide temperature rage.
4.Good ability of surface resistance and ageing resistance.
2)Constitute
1. Double sided blue release film.
2.AM0900 adhesive.
3.1.1mm EVA foam.
| Name | Adhesive | Thickness(mm) | Width and Length |
| QD201212EVA | Acrylic | 1.2 | Clients' requirements |
3)Usage
1.Can be used in car industry, all kinds of household appliances, electronic devices and so on.
2.Can be used as insulation material.
3. Can be used in environmental protection, Architectural decoration.
4.Can be used in daily life.
4)Performance Index
| Item | Test Value | Test Method |
Adhesive Strength
(g/20mm) | 1980 | 23ºC,65%RH,stick 20mm tape on the stainless steel plate for 20min,then peel <180°. |
Retention
(mm) | 0.1 | 40ºC,stick 20mm*20mm tape on the stainless steel plate, hang with 1kg load, then measure the Glue line creep variable after 60min |
Intial Stick Force
(J.DOW) | 25 | 23ºC,65%RH J.DOW |
Set Load Stripping
(mm) | 7 | 80ºC,stick 20mm*50mm tape on the stainless steel plate, hang with 1kg load, then measure T type strip distance after 60min. |
5) Storage
The optimum Storage temperature:5~30ºC
Quality assurance:6 month from product purchase.
Can't guarantee 6 month expiry date if exposure to the sunshine ,high temperature(≥40ºC), high humidity(≥70%RH) or low temperature(≤0ºC).

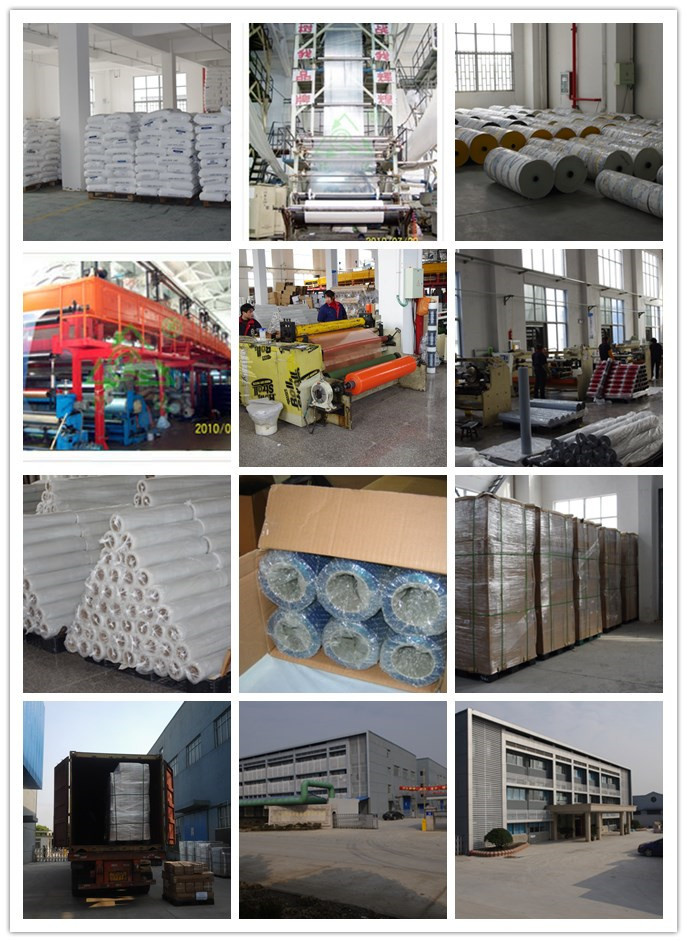

Founded in 1999, Wuxi Qida Tape Co., Ltd., Specializes in manufacturing high-quality protective film and adhesive tape widely used for protecting product surface, As one of the most Leading film production enterprises in China, now our products sales well in Mainland of China, Taiwan, South-East Asia, Middle-East, European and so on. Qida, introduced with international advanced production lines and check machines to assured the production process and examines in the same step, under the consummation of quality guarantee system, enabled each part in production can be effectively control.
The film can be used in a large range of products such as stainless steel board, aluminum board, aluminum alloy type material, plastic steel type material and doors and windows, the aluminum moulds board, mirror panel, sandwich color steel board, fireproofing board, adorn the panel, the organic glass plate, PS, PE, PVC board sunshine board(gather the easter board of carbonic acid), the burglary-resisting door, the sign, plate the membrane glass, top-grade handicraft, electric apparatus cupboard, the outer cover of computer, automobile lamps and lanterns, the floor, the outer cover of household appliances, instrument and apparatus, the products surface waiting for various kinds of fields to need protection can be used.
Anything you are in question please do not hesitate to contact us, you question will be answeared at the soonest time!
