| Price: | US $ 10000-50000set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T |
| Prod Model: | YHF-V900 |
|---|---|
| Automatic Grade: | Automatic |
| Application: | Oil |
| Driven Type: | Pneumatic |
| Packaging Material: | Film |
| Material Type: | Solid or Powder |
| Packaging Type: | Bag |

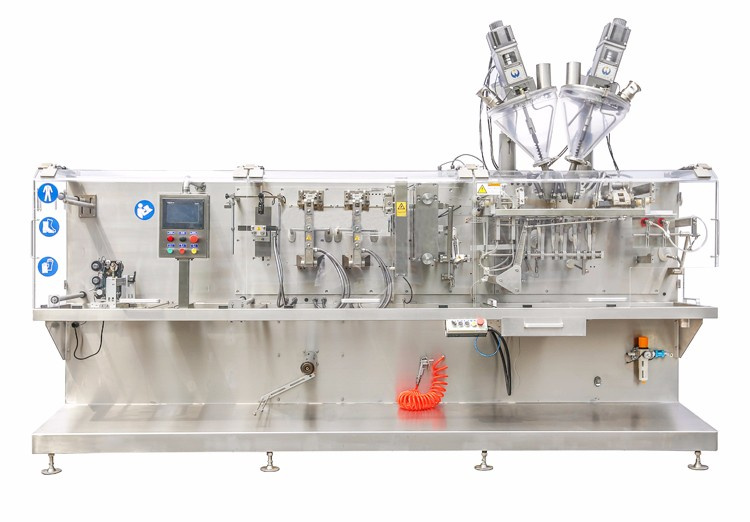

1.We coat the sealing parts, shears and rod with special material to prevent the sticky of heating block, shears and rod after long-time of usage.
2.All the temperature of the heating block is controlled by the PLC
3.It uses Japan imported vacuum parts (Including the filter and vacuum ejector) to control the bag opening and mechanical arm.
4.The central control box is installed in the middle of the equipment which looks good and easy for maintenance.
5.The motor release the film roll, and it has the function to check film rewinding. The machine will automatically stop if something abnormal happened.
6.The whole machine uses SUS304 which has the feature of perfect anti-corrosion. The organic glass cover prevents the flowing of powder.
7.The equipment has the plug reserved for changing powder, liquid, viscosity, or granule filling device. And so does the software left space on the software for rewiring or reprogramming.
8.The machine uses auto weighing feedback system to control the volume. The electrical scale gathers the volume and connected with the PLC.
9. It use pneumatic shaft film releasing device,instead of install film and remove film by hand,reduce the strength of the labor,convenient and rapid.
Technical Parameters of Roll Film Forming Bag Packing Machine:
Main Technical Parameter (If you are interested, please contact us send you the detailed plan) | ||||||
| Model | YHF-130D | YHF-130F | YHF-180D | YHF-180F | YHF-V900 | |
| Capacity | ≤60p/min | 60p/min | Single pouch: ≤60p/min Double pouches: ≤120p/min | Single pouch: 60p/min Double pouches: 80-120p/min | 160-320p/min | |
| Precision | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Pouch Size | Width | 60-130 | 60-140 | Single pouch: min:80*100mm max:180*220mm Double pouches: max:(90+90)*220mm min: (60+60)*70mm | Single pouch: width:85-180mm Height: 100-220mm Double pouches: width:60-90mm Height: 100-220mm | 32-105mm |
| Height | 80-180 | 80-180 | 50-300mm | |||
| Roll ID | Φ70-80mm | Φ70-80mm | Φ70-80mm | Φ70-80mm | 300mm | |
| Roll OD | ≤Φ500mm | Φ500mm | ≤Φ500mm | ≤Φ500mm | 900mm | |
| Air Pressure | 0.5-0.7Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | |
| Power source | AC380V, 50Hz | |||||
| Total power | 4.5KW | 5.5kw | 5.5kw | 6.5kw | 12kw | |
| Weight | 1800Kg | 2100kg | 2500kg | 2700kg | 1800kg | |
| External Dimension | 2780*945 *1550mm | 3430×1000 ×1500mm | 3495*1000 *1550mm | 4176*1000 *1500mm | 2033*1300 *1891mm | |
