Hot Melt Adhesive Glue Gluing Machine UV Coating Machine for Disposable Baby Diaper and Sanitary Napkin
Price: |
US $ 1040-2000/Set |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
LBD-RD30L |
Automatic Grade: |
Semi-Automatic |
Packaging Material: |
Plastic |
Glue Type: |
Hot Melt Adhesive |
Application: |
Disposable Product |
Driven Type: |
Electric |
Packaging Type: |
Cartons |
Gluing Mode: |
Mist Spray Gluing |
Product Description

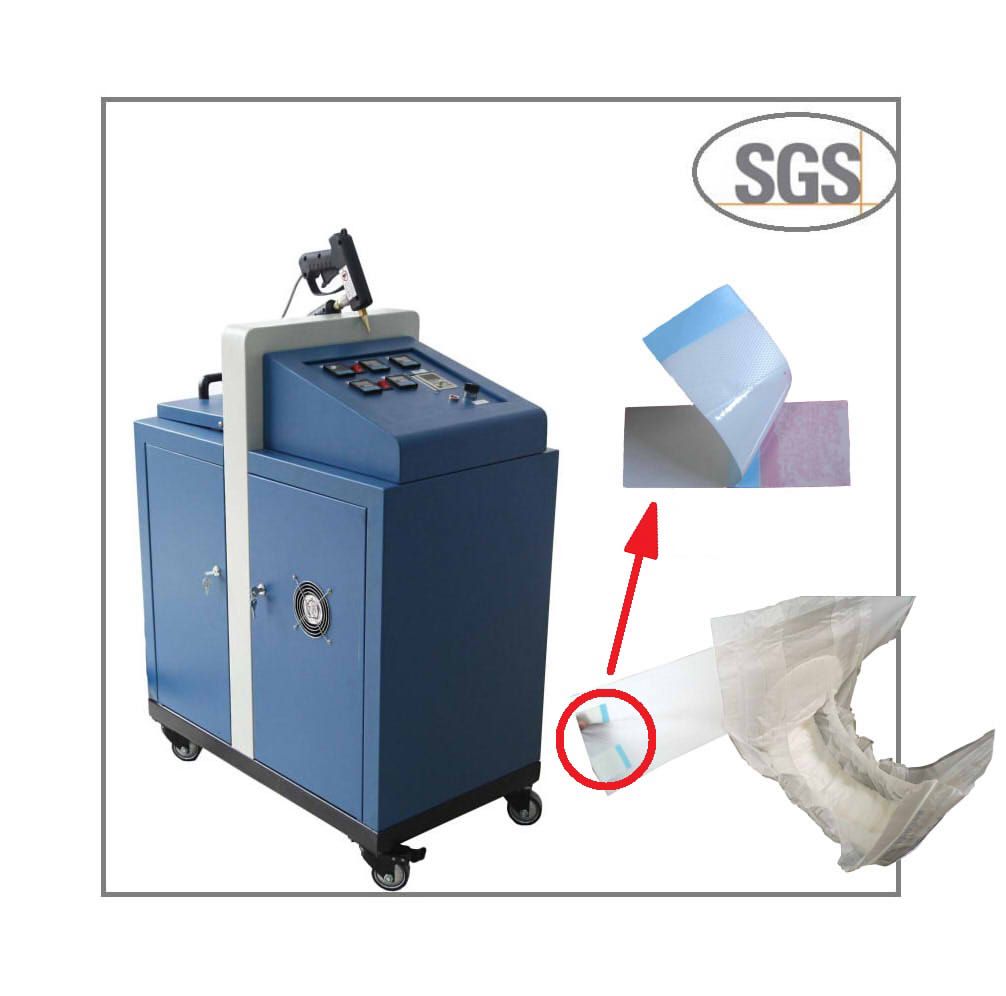

Hot Melt Machine for Paper Diaper And Sanitary NapkinSingle Frictioning Side SealingSPECIFICATION: Tank capacity | 30L | Melt rate kg/hr | 40KG/hr |
Power supply | AC220V,50/60Hz | Motor power | 4.5KW |
Gear pump (optional) | 6 cc/rev mono-layer/bi-layer pump | Temperature control stability | ±1° |
Machine Dimension mm | 560mm*350mm*630mm L/W/H | Maximum working pressure | 1000psi |
Maximum gear pump rate | 50rpm | Temperature range | 40°--230° |
Hose/Gun output capacity | 4 set | Ambient temperature range | 6°--50° |
Motor and pump Capacity | 1/2 set | Control model | PID numeric controller |
ANDSpecification | 7.9mm-20mm |
HS Code | 40069020 |
Model NO. | LBD-F-001 |
Attention:
1.Be sure that wear safety gloves, goggles and long sleeved overalls, avoid the body by high temperature liquid hot melt burn, or by high temperature components surface scald.
2. Before remove the control panel or any machine cover or replace electrical parts, must be cut off the external power supply FIRST, so as to avoid danger, causing unnecessary casualties and damage to the machine.
3. When removing the protective cover of the chain gear moving device, switch off the motor switch first, stop the motor running, and prevent the fingers from being stretched out between the chain and the chain gear.---------Be the First Chioce!---------

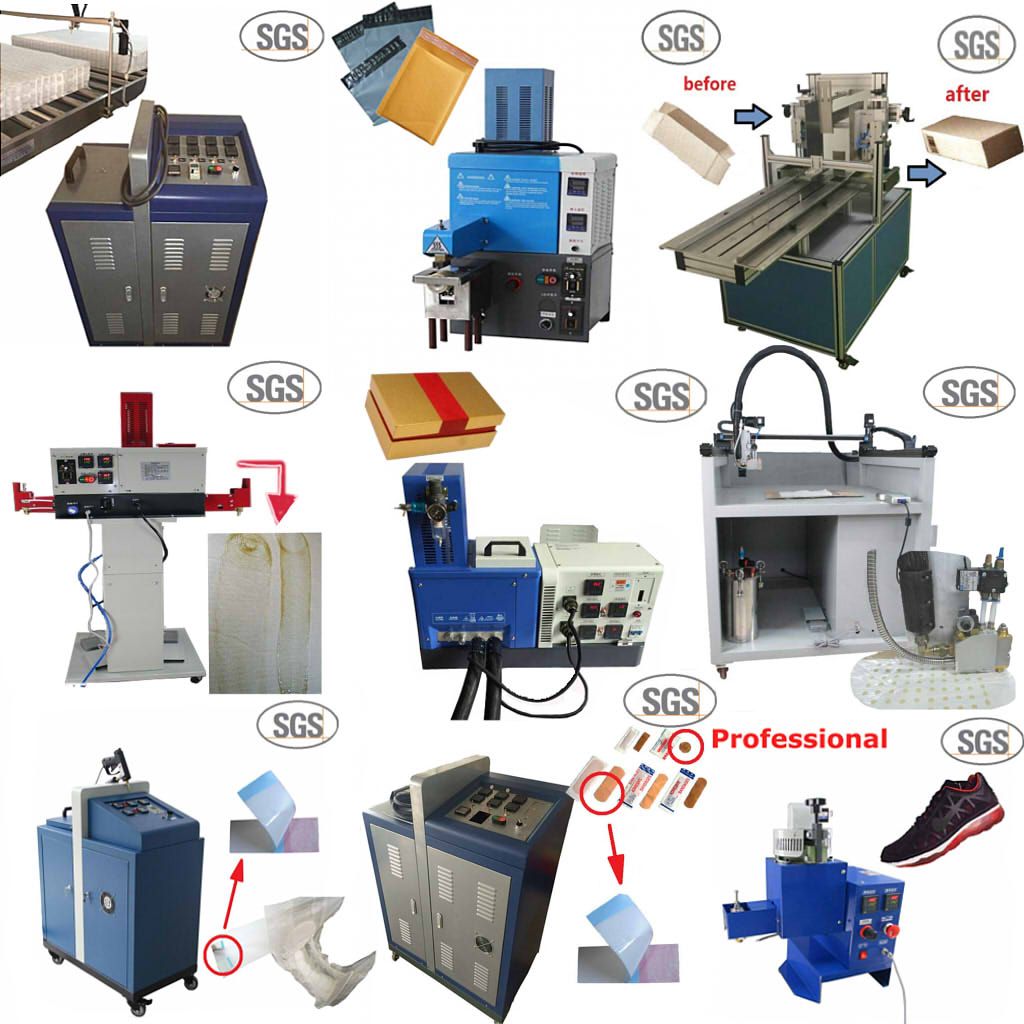

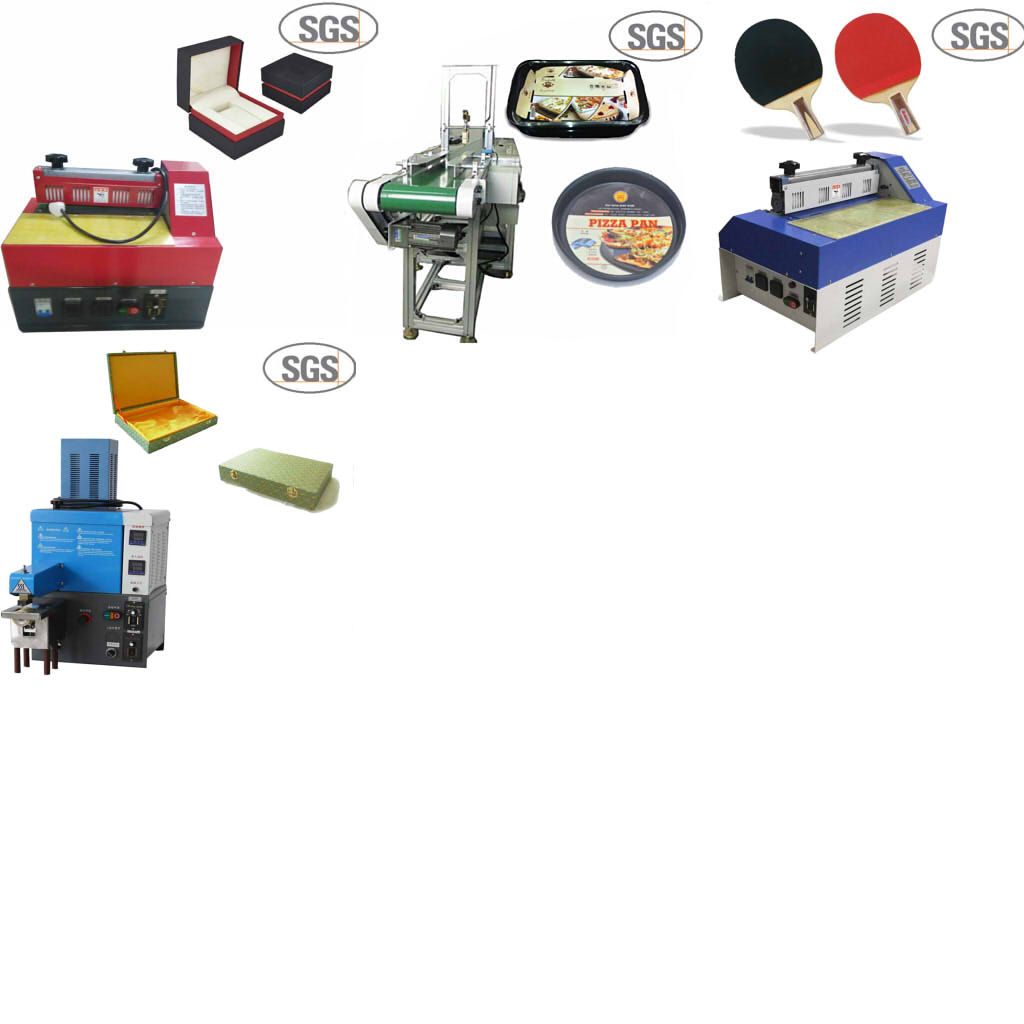

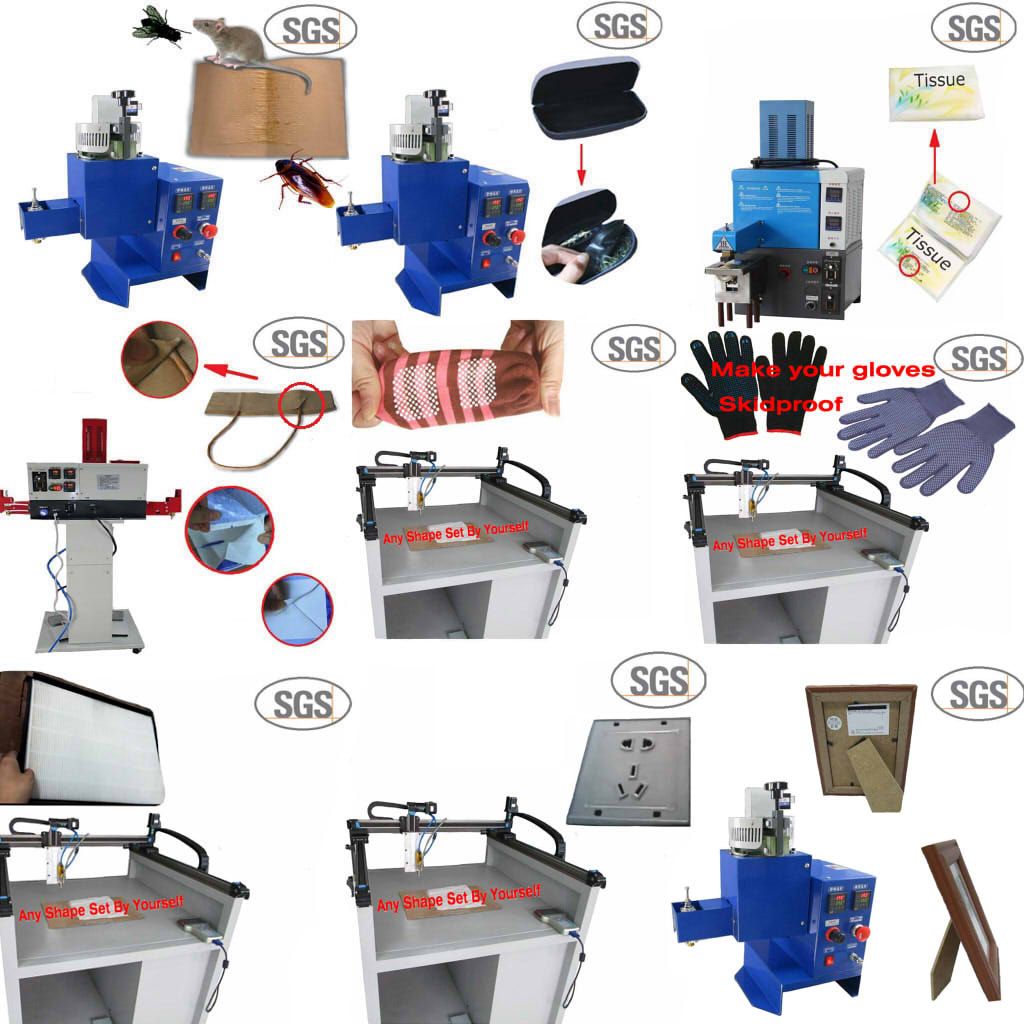

---------Our Other Product---------
Xiamen Good Win Import and Export Co., Ltd. is a professional manufacturer engaged in the research, development, production, sale and service of hot melt adhesive application system.
Since its establishment, the company has developed rapidly. University and college collaboration has ensured the introduction of talents, the import of advanced technology and facility from home and abroad has ensured the technology. The company is equipped with high precision CNC machining center, milling center, linear cutting, thermal stress relieving device and corresponding testing equipment, all feature the finest design and machining software.
Running by a strong R&D team and service team, we provide our customer with best solution in gluing process, improve the efficiency and cut the cost for you.
Our product is widely used in health care industry (disposable diaper, sanitary pad, medical mattress, surgical gown ), auto industry(the sealing of light, carpet, glass, top-roof, automotive upholstery, filter, etc ), furniture industry(the adhesion of mattress, laminate floor, furniture), householdappliance industry( the sealing of refrigerator and loudspeaker, battery, the assembly of vacuum cleaner), packing industry(paperboard box, transparent plastic box, labeling, tape, special adhesive tape), the assembly of electronic device, clothing, textile, bonding the non-woven material, bookbinding and manyother industries.
For many years, the company hold on to the operating philosophy that" quality, the essence of business; Management, the method of expansion; Efficiency, the fountain of prosperity". It is the value we hold that help us win the trust and the approval of customer. We believe that through our unremitting efforts, we are bond to realize mutual benefits with our customer.
