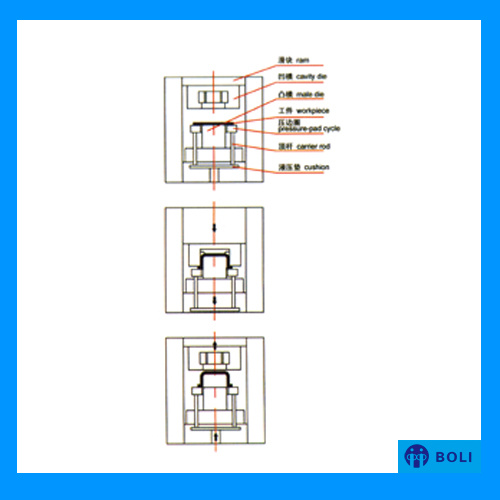

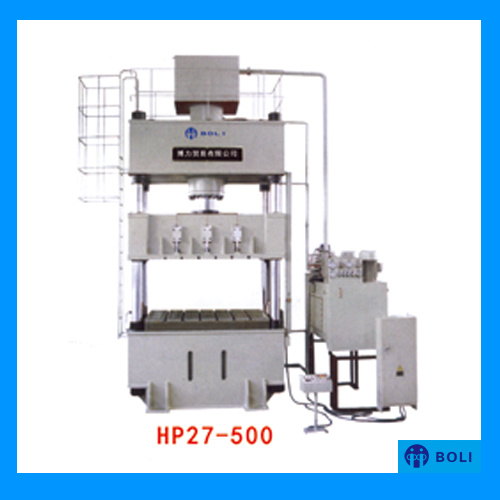

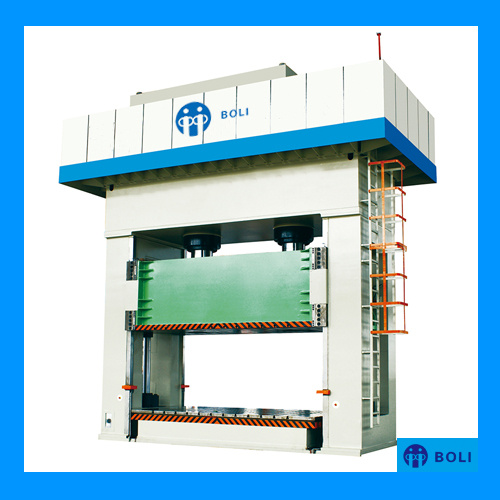

HP27 series Four-Column Single-Movement Hydraulic Press For Sheet Metal Drawing(Stamping)
Features:
> Computer optimized structure design; Four-column structure: Simple, economic and practical.
> Cartridge valve equipped for hydraulic control system, reliable, durable and less hydraulic shock, shorter connection pipeline and fewer release points, Hydraulic integrated system is adopted separate control unit.
> Independent electrical control, reliable, audio-visual and convenient for maintenance.
> Centralized button control system, with adjustment, hand and semi-auto operation modes at operator's choice(semi-automatic has two type tech: Set-stroke single and set-pressure single).
> The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements.
Applications:
Fit for drawing, bending, forming, flanging and other processes for general parts and components and high-precision parts; fitted buffering device; the machine may also be used for cutting and stamping. The machine is fit for use in following fields:
> Automobile parts: vehicle body cover, brake plate, oil tank, chassis, birdge case, bumer.
> Home electronics: washing machine parts, electrical cook oven parts, TV set parts, refrigerator parts.
> Kitchen utensils: washing trough, pot, stainless article, other containers.
Configurations Optional:
> Imported PLC unit.
> Blanking buffer device.
> Moving bolster.
> Light curtain safety device.
> Knock-out device( hydraulic or mechanical).
> Automatic lubrication device.
> OIL heating/ cooling unit.
> Floating guideway and rolling breacket for die exchange.
Specification:
Type | HP27-100 | HP27-200 | HP27-315 | HP27-400 | HP27-500 | HP27-630 |
Nominal Force | KN | 1000 | 2000 | 3150 | 4000 | 5000 | 6000 |
Return Force | KN | 135 | 240 | 305 | 350 | 580 | 650 |
Slide Stroke | mm | 500 | 710 | 800 | 800 | 900 | 900 |
Max. Opening Height | mm | 800 | 1120 | 1250 | 1250 | 1500 | 1500 |
Cushion Force | KN | 400 | 800 | 1250 | 1250 | 2000 | 2000 |
Cushion Return Force | KN | 150 | 280 | 360 | 360 | 780 | 780 |
Cushion Stroke | mm | 200 | 250 | 300 | 300 | 350 | 350 |
Slide Speed | Idle Stroke | mm/s | 150 | 200 | 200 | 170 | 200 | 180 |
Pressing | mm/s | 7-15 | 7-18 | 5-12 | 4-10 | 7-15 | 5-12 |
Return | mm/s | 120 | 140 | 120 | 105 | 130 | 115 |
Cushion Speed | Eject | mm/s | 37 | 45 | 30 | 30 | 37 | 37 |
Return | mm/s | 100 | 120 | 100 | 100 | 95 | 95 |
Bolster | LR | mm | 690 | 1000 | 1260 | 1250 | 1400 | 1600 |
FB | mm | 630 | 940 | 1160 | 1250 | 1400 | 1600 |
Cushion Area | LR | mm | 350 | 650 | 820 | 820 | 970 | 1120 |
FB | mm | 350 | 650 | 820 | 820 | 970 | 1120 |
Outline Size | LR | mm | 2600 | 3300 | 3600 | 3600 | 4000 | 4300 |
FB | mm | 1400 | 1350 | 1600 | 1600 | 2100 | 2100 |
Height Above Floor | mm | 3100 | 4280 | 5000 | 5300 | 5100 | 5400 |
Height Below The Ground Level | mm | 300 | 350 | 1000 | 1000 | 1250 | 1300 |
Main Motor Power | KW | 7.5 | 22 | 22 | 22 | 22x2 | 22x2 |
Weight | KG | 5200 | 10500 | 17200 | 21500 | 31500 | 41000 |
