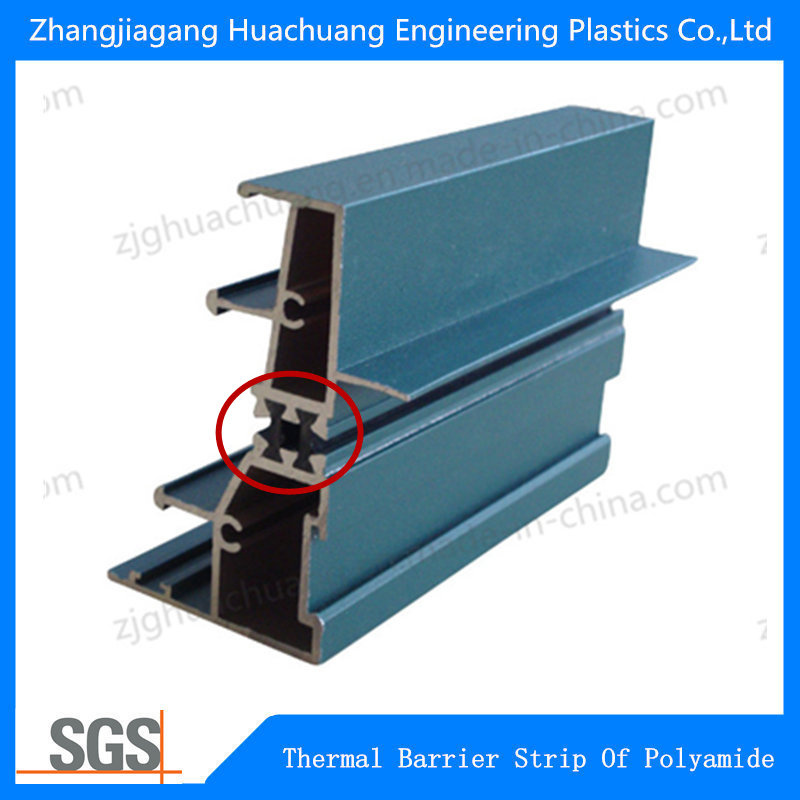

Production DescriptionOver the years, polyamide heat-insulation strip has been widely used in glass curtain walls due to its good properties and low cost. Especially Polyamide 66 reinforced by 25% glass fiber thermal break strips, they are inserted into aluminum window, door and facade profile for thermal insulation.

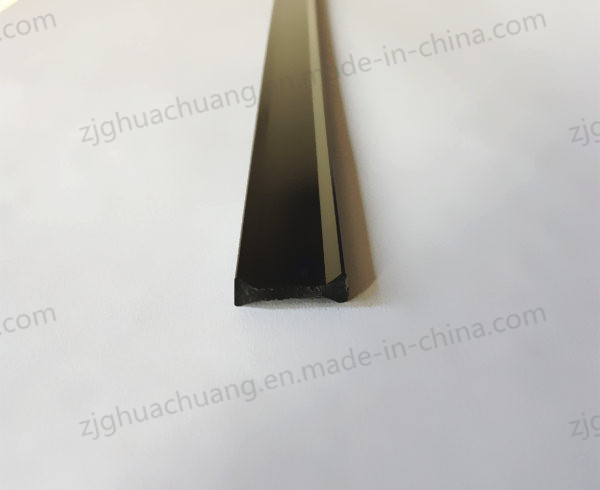

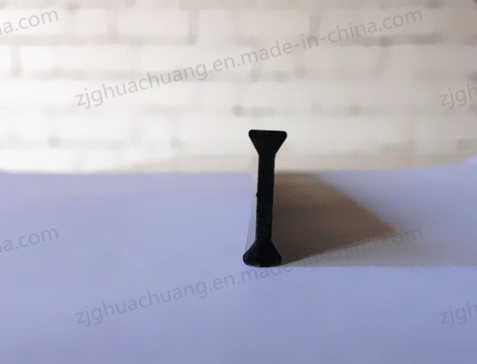

The shape I thermal barrier polyamide strip can prevent the window frame from dust and water, has a better mechanical performance, is the first generation and easiest shape of insulating strips.

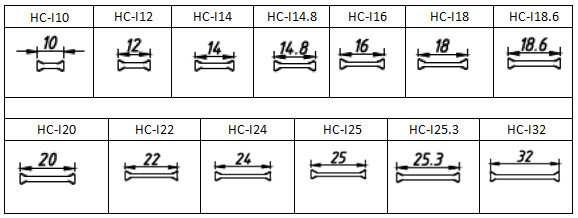

For the shape I, we can provide the following size or customize according to customers' requirements.
Advantages1.Effectively increased thermal in the system property insulation.
2.Reduces condensation on the window.
3.Sound insulated.
4.Improve comfort and living condition.
5.Possible double color coatings provide better aesthetic effect.
6.Various shapes will be designed for the customer's requirements.
7.The working temperature of the thermal insulation strip is 220°C, Melting Point reaches to 246°C. This enables coating process after assembly of composite profiles.
8.High corrosion-resistance, weather-resistance, heat-resistance, alkali-resistance and long life of usage.
9.linear thermal dilation coefficient almost identical to that of aluminium profiles.
Huachuang PA66 GF25 thermal barrier strips Performance Table| NO. | Item | Unit | GB/T 23615.1-2009 | HC-Technical specification |
| | Material Properties |
| 1 | Density | g/cm3 | 1.3±0.05 | 1.28-1.35 |
| 2 | Linear expansion coefficient | K-1 | (2.3-3.5)×10-5 | (2.3-3.5)×10-5 |
| 3 | Vicat softening temperature | ºC | ≥230ºC | ≥233ºC |
| 4 | Melting point(0.45MPa) | ºC | ≥240 | ≥240 |
| 5 | Testing for tensile cracks | - | No cracks | No cracks |
| 6 | Shore hardness | - | 80±5 | 80-85 |
| 7 | Impact strength(Unnotched) | KJ/m2 | ≥35 | ≥38 |
| 8 | Tensile strength(longitudinal) | MPa | ≥80a | ≥82a |
| 9 | Elasticity modulus | MPa | ≥4500 | ≥4550 |
| 10 | Elongation at break | % | ≥2.5 | ≥2.6 |
| 11 | Tensile strength(transverse) | MPa | ≥70a | ≥70a |
| 12 | High temperature tensile strength(transverse) | MPa | ≥45a | ≥47a |
| 13 | Low temperature tensile strength(transverse) | MPa | ≥80a | ≥81a |
| 14 | Water resistance tensile strength(transverse) | MPa | ≥35a | ≥35a |
| 15 | Aging resistance tensile strength(transverse) | MPa | ≥50a | ≥50a |
1.Sample water content less than 0.2% by weight.
2.Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.

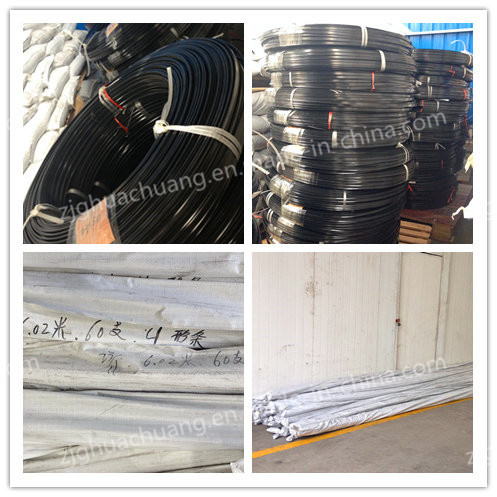

3.The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order. Storage ConditionsThe strips will be stored in the ventilated and dry environment, horizontally placed, paying attention to waterproof, keeping away from the heat source, avoiding heavy pressure and the contact with acid, alkali as well as organic solvent. DeliveryWe have the production capacity of 100000 meters per day. For common specifications, they're ready in stock, and will be shipped in 7-15 working days after receiving the deposit. PackagesFor all specifications/shapes, they could be packaged in linear, the length will be 6 meters, or customized.
For the Shape "I", "C", and some simple shapes, they can be packed in rolls. 400-600 meters/roll.
Our Service1. Expertise in the production of standard polyamide thermal break strips.
2. Respect customers' needs, provide customized products, try best to satisfy customers' requirements.
3. Fast service and on-time delivery
4. Strict quality control system, each production process will be strictly supervised by us.
5.We can provide all products on the insulation strip production line and the technical support.
Our Company
Please feel free to contact us if you have any problems.Name:Camille CaiPhone:0086-13584481777
Address:Jinfeng Town, Zhangjiagang City, Jiangsu Province, China
Our company is located in the city of Zhangjiagang, Jiangsu Province, China. Covering an area of 1, 580 Square Meters, near the beautiful Chanjiang River. We are close neighbor to national only inland river free trade zone, also a short distance from the economic hinterlands, such as Shanghai, Suzhou, Wuxi, Changzhou, Nantong, Nanjing, etc. With good location, mature economic environment, convenient modern communication, developed water and land transportation, we have been making research and development for special material of PA66 thermal insulation strip since 2006. PA66 GF25 is our main product, including plastic granules, thermal barrier strips, etc.
We expanded our business scope since the year of 2010. We not only produce PA66 granules and PA66 thermal barrier strips, but also sell parallel twin-screw granulator, extruding machine, mould and production technology. We can customize the mould according to customers' special requirements.
Customers come first, motives provide services is the principle we've always been insisting in the last ten years, to provide our customers with high-quality products and service.
Our domestic sales volume is very stable, and we are developing overseas market. We are going to promote our products all around the world, to seek win-win cooperation, mutual benefits and mutual development with our customers.
