| Prod Model: |
ADB-1300 |
| Inner Materfials: |
PA Film |
| Outside Materials: |
Kraft Paper + PE Film |
| Height: |
100-240cm |
| Width: |
50-120cm |
| Usage With Loads: |
up to 20 Tons |
| Working Pressure: |
up to 0.35 Bar |
| Max Void: |
45cm |
| Certification: |
SGS, RoHS, ISO9000 |
| Sealing & Handle: |
Heat Seal |
| Material: |
Kraft Paper |
| Color: |
Brown |
| Layer: |
Multi Layer |
| Scope Of Application: |
All Industrys That Export Goods |
Product Description
Product Overview
Air dunnage bag is an innovative and simple transportation protecting tool, with PP and PE kraft paper as strong outer bag and higher air impermeability inner bag and equipped with air valve. The inner bag is PP and PE-based extruded film made of 5 layer arch. It inflates and deflates quickly and is strongly sealed with one-way valve to prevent the goods in the truck, container or railway transportation from colliding each other and it is also a new and environment-friendly replacement of raw wood or polystyrene foam during transportation.
Use value
1. Cost saving: save a lot of cost for the same kind of products.
2. Custom-made: custom-made for you according to the specification of goods to protect better.
3. Speed-increasing: It inflates and deflates quickly with one-way valve.

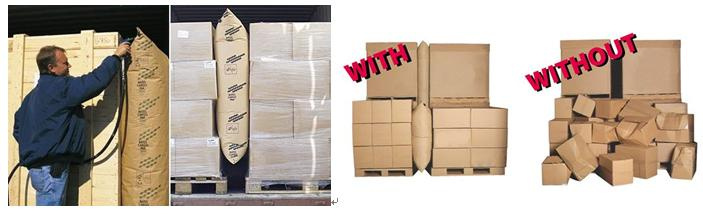

4. Safety of goods: fully fill the gap between goods, support the weight caused by shaking goods and absorb shake to prevent the goods from being damaged during transportation.
5. International authentication: passing the Swiss SGS international quality system authentication and EU ROSH test.
6. Environment-friendly and energy-saving: the products can be used repeatedly under proper use, which protects the environment and saves your cost.
7. Rapidly passing customs: save the transportation storage cost.

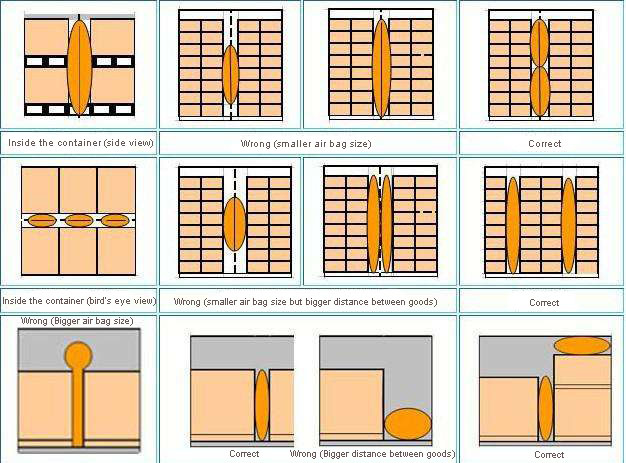

Method of choosing
1. Measure the gap between the goods. 2. Measure the overall height of stacking of goods.3. Measure the depth of pallets or depth of package size of goods.4. Our professional service providers can assist you in the container design and product choosing, and complete the packing test for the first time jointly with you. 5. For normal use, if there are sharp edges in the package of the goods (such as wooden pallets, wooden cartons, etc.), the two sides of the air dunnage bags will be added with corrugated boards or other flat plates to protect the air dunnage bags from being punctured.6. Tighten the air valve before use.
Tianjin Airpack is a company specialized in the production and sale of air cushion machines, air cushion films, air dunnage bag, air column bag and supporting facilities. The company has a wide range of air cushion products, including Airpack 100/Airpack 200/Airpack 300/Airpack 400 air cushion machines and 20um-50um thick high barrier films, high strength films and anti-static films. The Airpack-200 air cushion machine can produce the air cushions at the speed of 25m/min, which is the highest speed in this industry. We have been providing the high quality product protection and one-stop cushion packaging solution to the well-known E-commerce companies and logistics enterprises. Airpack cushion packing has been devoting to "protecting your products" by providing you with the equipments with the best quality and highest efficiency.
