Price: | US $ 1451/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |

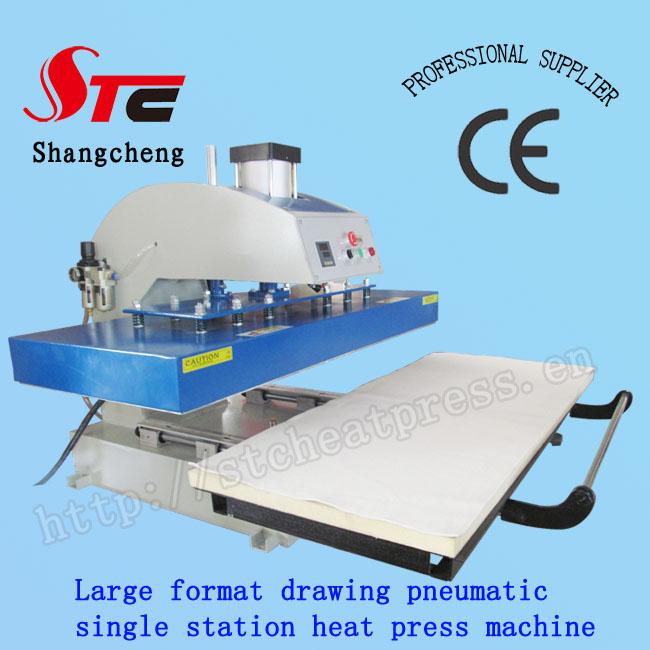

Drawing Automatic Pneumatic Heat Press Machine | |||
Item No. | STC-QD08 | Voltage | 110V/220V |
Temperature range | 0-399 °C | Time range | 0-999Sec |
Power | 2800w | 3000w | 3500w |
Weight | 95kg | 105kg | 115kg |
Packing size | 90*50*90cm | 90*60*90cm | 90*68*90cm |
Working size | 40*40cm | 40*50cm | 40*60cm |
Drawing Automatic Pneumatic Heat Press Machine | |||
Item No. | STC-QD08 | Voltage | 110V/220V |
Temperature range | 0-399 °C | Time range | 0-999Sec |
Power | 4500w | 5000w | 6000w |
Weight | 125kg | 140kg | 170kg |
Packing size | 100*80*95cm | 105*85*98cm | 110*95*100cm |
Working size | 50*60cm | 50*70cm | 60*80cm |
Drawing Automatic Pneumatic Heat Press Machine | |||
Item No. | STC-QD08 | Voltage | 110V/220V |
Temperature range | 0-399 °C | Time range | 0-999Sec |
Power | 6000w | 6500W |
|
Weight | 255kg | 330Kg | |
Packing size | 117*129*112cm | 127*138*122cm |
|
Working size | 50*120cm | 60*130cm |
PRODUCT DISPLAY:
1.CE approved heat press machine.high quality as well as good price,good after-sale service.
2.The machine adopted automatic pneumatic fitting pressure, it can transfer the lower pressure to higher compress pressure.(pressure up to 8kg/cm2).
3.Manual and automatic control ,pull-out worktable,easy operation,high printing,it is economical and practical.
4.This machine adopts thicken heat plate to ensure the temperature more equality and steady .ferfect heat press effect.
5. The pressure can be adjusted according to the thickness of the material you're transfering to. Including print the ready made clothes and cut pieces ,it can be widely used in the factory mass-production and personalized pyrograph of retail shops.
OPERATION VIDIO LINK:
http://www.tudou.com/programs/view/HorhJhzKFu4/
please note:Users should operate the machine with ground wire connected for safety!
1.Plug in, turn on the power switch, the power indicator lightened.
2.Set the thermostat to the temperature needed (Normally 120-200ºC),set the timer to the needed.(Normally 5~20Second),then wait for until the temperature has reached the preset temperature.
3.Put the cloth on the silica gel plate of the working table, cover the printing paper(please note the right surface of the paper).
4.Press the start switch,you will see the machine is working and the time is counting down .
5.When the time come down to over, the heating plate will raise automatically.you will find the beautiful and attractive effect!
6..If it is cold-ripping of the transfer paper, please use
blackboard wiper to rub against the whole transfer paper, wait for
5-10 seconds, then rip off the transfer paper. If it is the hot-
ripping of the transfer paper, you can rip off immediately after
printing.
Temperature & Time | |||||
Materials | Temperature | Time | |||
Sublimation heat press printing | 200-220°C | 25s | |||
Plastic sheet heat press printing | 160-180°C | 8-10s | |||
Foaming material heat press printing | 140-160°C | 5-8s | |||
rhinestone heat press printing | 180°C | 10-12s |
Please Note : Successful print requires right time ,temperature
and pressure ,the thickness of the clothes material ,even the
type of printing paper ,all will affect the performance of
printing .Any kind of sublimation paper need test before mass
production.
HEAT PRINTING DEFFECT PICTURE:
WARRANTY:
You can rest assured ,we offer good after-sale
service: the machine enjoy one year warranty ,life-
long maintenance service and Life-long on-line
technical support, and provide free parts when
problems occur within one year not including shipping
cost. we also offer good quality: All the machine of
our factory have been approved by CE.
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal.
30%deposit,the balance 70% will be paid before shipping.
Delivery Detail:
7 days after you confirming order.
PACKAGING:
The packing will be made according to your requirements. Usually
we have safe packing method as below:
This Heat press machine will have PVC bag and foam inside,
wooden case outside. The method are very safe shipping
packing method.
CONTACT INFORMATION:
Chinese website2: http://stcby.taobao.com
Eagle Wealth Enterprise Limited
Dongguan STC Machinery Equipment Co.,Ltd
Address: Jinsha East Road,The Fourth Industrial Zone,Xiagang,Chang'an Town, Dongguan City,Guangdong Province,China
Prod Model: | STC-QD08 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Condition: | New |
Certification: | CE Certificate |
Supply Ability: | 1000 Set/Sets Per Month 1000 |
Plate Type: | T Shirt Printing Machine |
Model Numbe: | Stc-Qd08 |
Automatic Grade: | Automatic |
After-Sales Service Provided: | Overseas Service Center Available |
Place Of Origin: | Guangdong, China (Mainland) |
Brand Name: | Stc |
Usage: | Fabric, T-Shirt, Metal, Rhinestones, Glasses |
Type: | Ink Jet |
Plate: | Lithography Printing |
Structure: | Platen Press |
Color & Page: | Multi-Colour Printing Press |
Printing Speed: | 6.7CPI |
