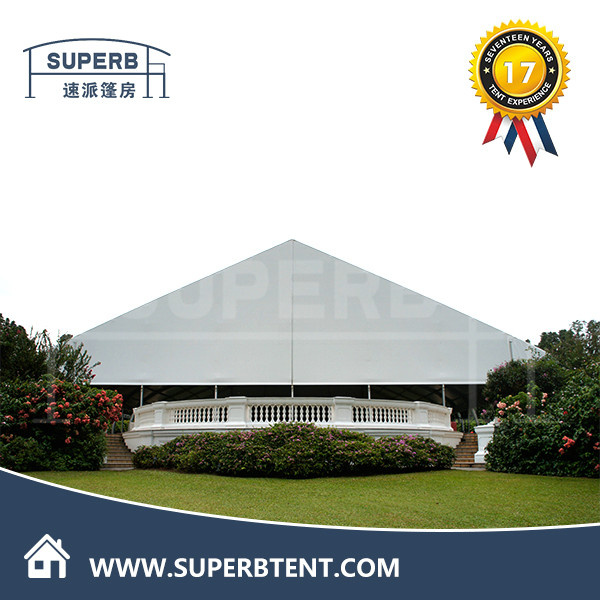

Huge Curve Frame Tent (XLS40/4.0-5CT)
Product Description
Details Determined quality
1. Application
The large clear span tents(XLS series, Polygon Tent) can be widely used as the wedding tent, party tent, exhibition tent, conference tent, different kinds of festivals tent, hajj tent, corporate events tent, sports tent, & temporary, semi-permanent or permanent building purpose etc.
2. Materials
Fabric: Double PVC coated polyester fabric, 650-900g/sq. M, water proof, UV resistance, anti-mildew, self-cleaning, fire retardant according to standard NFPA701 & DIN4102 B1/M2
Frame: Hard pressed extruded aluminum 6061/T6, anodized surface finishing.
Main frame profile size: 300X120X5mm;
Connections: Hot-DIP galvanized steel;
3. Life span of fabric(cover & sidewalls)
8-10years;
Life span of aluminum frame: 20-30years
4. Structure safety parameters
Wind load: 100km/h (0.5kn/M2)
Snow load: 25kg/sq. M
5. Color available
White, red, yellow, blue, green, black, grey, transparent etc
6. Optional Accessories
Ground anchor, anchor puller, weight plate, glass door, fire door, glass wall, ABS hard wall, Sandwich walls, auto-rolling door, decoration lining, flooring system, clear PVC windows sidewalls, transport rack for the glass door & walls, ramp etc; Chairs, tables, & other furniture for the parties are also provided for your option.
7. Specification for the large clear span tents (XLS series, Polygon Tent), pls refer to below chart
Type
Span (m)
Side height (m)
Ridge height (m)
Bay Distance (m)
Longest Component (m)
Wind Load (km/h)
XLS30/4-5PT
30
3.9
11.6
5
10.7
100
XLS40/4-5PT
40
3.9
13.5
5
10.7
100
Main frame Profile
300x120x5mm(4-channel)
Eave Connection
Hot-dip Galvanized Twin Steel Plate
Roof Fixing
Bar Tension
Frame Material
Hard Pressed Extruded Aluminum 6061/T6
Cover Material
Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m
Superb tent was created by a team of experienced tent rental professionals that have one goal in mind: To provide all of our customers with the best quality tent and the finest service possible. With a management team that has over 16 years of tent experience, we can assure each and every customer that they will have a great products and experience.
At Superb tent, we offer a wide range of tents including A frame structure, high peak structure, Pagoda structure and curve structure, and a multitude of frame tents. We also provide other popular accessories to match our tent,
1. Tool rentals
2. Tent staging
3. Tables and chairs
4. Linens and decor
Superb tent: The Experience You Can Trust.
Our overseas sales and marketing department works with you and your clients, giving you and your customers the best services possible. Our total commitment is to success of your event.
Over the years our team has had the opportunity to be a part of all types of events.
Below is a list of a few of the large events we have serviced
1. Asia Games in 2010
2. World University Games 2011
3. BMW new car launching in 2011
4. Harbin Beer Festival since 2000
5. Tingstao Beer Festival since 2008
6. Formula 1 at Singapore 2012
Superb Tent is located in Foshan China, which just 20 minutes drivng away from Guangzhou airport.
Contact or visit us and you will see a Morden and effeciencent, European streamlined Company,
