APPLICATIONS
1)Advertising Industry: Acrylic, double color board & other advertising material engraving & cutting.
2)Leather Industry: Engraving & through-carving on leather & cloth.
3)Craft Industry: Engrave and cut on paper, wooden material, bamboo, leather, seashell & ivory material.
4)Model Industry: Cutting for architectural model, Aviation and navigation model, wooden toy.
5)Packaging Industry: Engrave & cut on rubber, composite board and Laser die board.
6(Engrave & cut in decoration industry & electronic appliance industry materials.
STANDARD CONFIGURATION
1)60W/80W/100W/150W, CO2 laser tube.
2)Update USB offline control system & large memory capacity to improve work speed & efficiency.
3)Lasercut or RDlaser.
4)Blades worktable.
5)3 Phase motors work at higher speed than common motors.
6)Open feeding system suitable for infinite workpiece.
7)Dust proof and Antipollution Design.
OPTIONS
1)Chiller.
2)Rotary attachment.
3)Red-light position.
4)Honeycomb worktable.
TECHNIICAL PARAMETERS

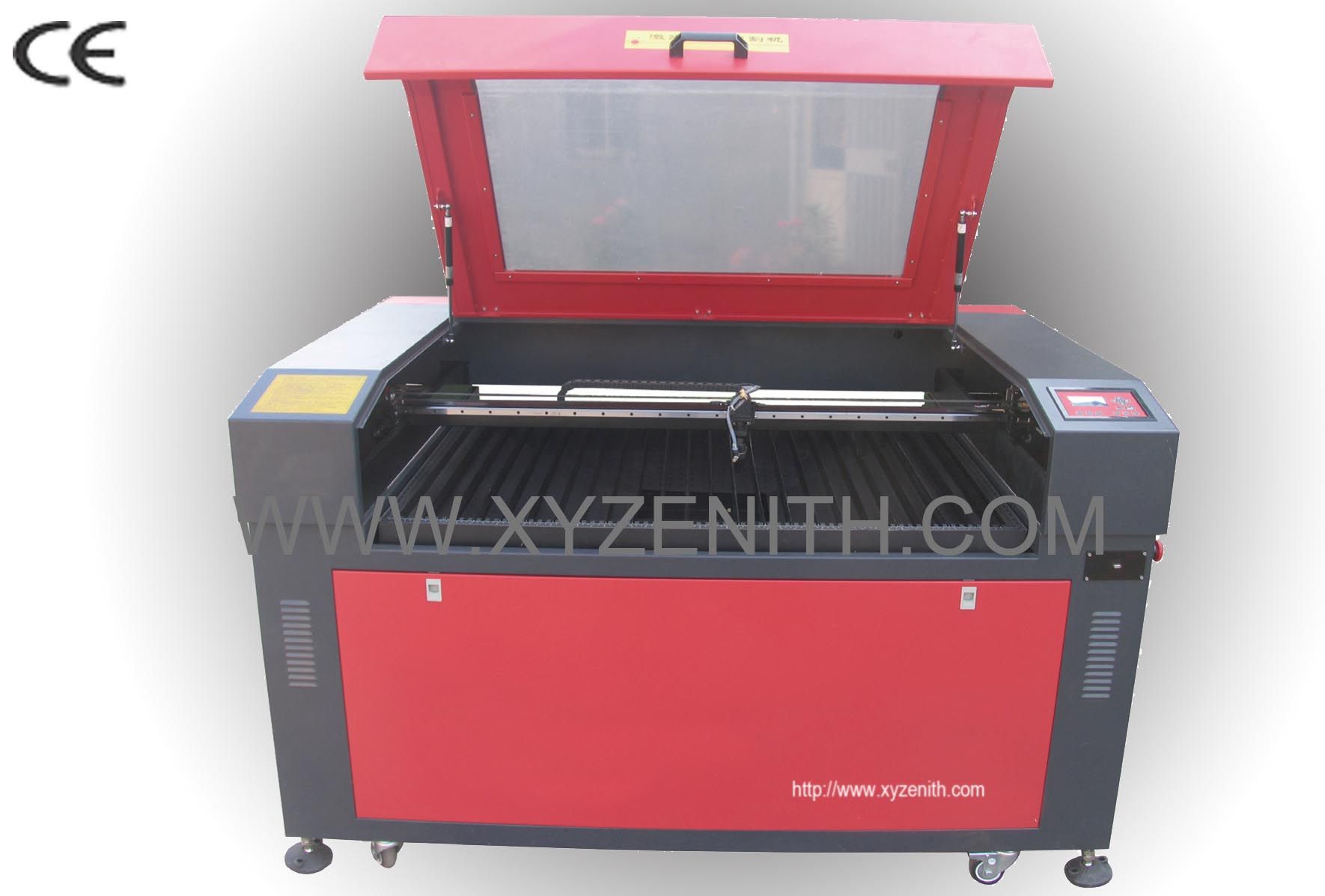

| Model | XZ1060 | XZ1290 |
| Working size(X*Y*Z) | 1000x600mm | 1200x900mm |
| Laser Power | 60W/80W | 100W/150W |
| Laser Type | Sealed-off Glass CO2 Laser Wavelength:10.6um |
| Laser Tube Cooling | Water cooling |
| Control System and Driver | High speed DSP control system, stepper motor, high subdivision driver |
| Engraving Speed | 0-1000mm/s |
| Cutting Speed | 0-300mm/s |
| Working Voltage | AC220V/110V±10%, 50/60HZ |
| Reposition Accuracy | ≤±0.01mm |
| Minimum Letter Size | Chinese: 1.5mm English:1mm |
| Machine Power | ≤1500W |
| Rise and Fall Height | High-precision ball screw electric lift 300mm |
| Running Environment | Temperature:0-45, Humidity:5%-95%(no condensate water) |
| Supported Format and Software | PLT, DST, DXF, BMP, AI, SUPPORT aUTOcad, Corel Draw output directly |
| Warranty | One year for whole machine except of laser tube(2500hours) and lens |
Jinan Zenith CNC Equipment Co., Ltd., was founded in 2007, is a specialized manufacturer on advertisement equipments, due to the experiences of 9 years of research and manufacture in this field, we have produced "XZ" series CNC Routers for woodworking, advertisement stuff machining and mold processing, and laser equipments as well. "ZENITH" is our new brand for oversea market.
We make the high quality advanced machines, we are providing the best after-sale service in China. And we are also offering the most competitive price to all of the customers. "ZENITH" is known by more and more people. At present, our products have been exported to many countries and regions such as Czechic, England, Russia, Brazil, Paraguay, India, Australia, Thailand, Singapore, Malaysia, China Taiwan, and so on. We have enjoyed the mutual benefit and will move on, and we hope to establish a long term business relations with more and more oversea customers.
