Prod Model: |
WY1202C/ WY902C |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Control System: |
Topwisdom 8" or 10" Touch Screen |
Speed: |
1200spm |
Format: |
Dsb, Dst |
Machine Color: |
White / Black / Yellow |
Main Motor: |
Panasonic Servo |
X.Y Motor: |
Stepper |
Memory Size: |
20 Million Stitches |
Auto-Color Change: |
Yes |
Warranty: |
24 Months |
Auto-Trimmer: |
Yes |
Product Description

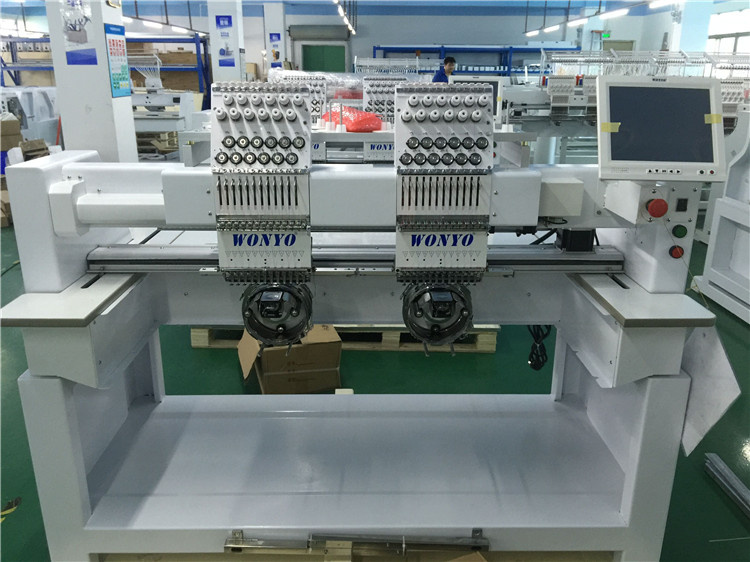

Latest Computerized Double Head Embroidery Machine Electronic Hat Embroidery Machine
Machine functions show
Brand: | WONYO |
Origin terms | Mainland China, 100%new |
Head | 2 head |
Speed | 850 RPM |
Motor | Panasonic servo motor |
Certificate | CE; SGS; ISO9001; Alibaba; Made-in-China. |
Computer and screen | Topwisdom/Dahao 8 inch colorful touch screen |
Standard functions | cap & finished garments/T-shit & flat & towels & pillow & 3D |
Flat embroidery area | 450(Y) * 800(X) mm |
T-Shirt embroidery area | 90*90/120*120/150*150/180*180/290*290 mm |
Cap embroidery | 75*270 mm |
Format | DST,DSB,etc |
Language | 12 kinds |
On-board lettering | yes |
Support | U-DISK and network |
Auto-Bobbin winder | yes |
Store memory | 20,000,000 stitches and 200 patterns |
AUTO-trimming | yes |
AUTO-thread broken detection | yes |
Back stitches | support |
Emergency stop | yes |
Power consumption | 400w |
Voltage | as customer requested |
MOQ | 1 set (standard wooden packaging) |
After-sales Service | Engineers available to service machinery overseas |
Warranty | 3 years limited warranty for the whole machine |
Payment | T/T by bank transfer |
Keeping current data and work when emergency stop or power off |
Machine attchments(1) Hoops/frames includedA. 2sets x Shirt Front Round Hoop 9 cm (3.5")B. 2sets x Shirt Front Round Hoop 12 cm (4.7")C. 2sets x Shirt Front Round Hoop 15 cm (5.9")D. 2sets x Shirt Front Round Hoop 19 cm (7.5")E. 2sets x Jacket Back Square Hoop 30 x 30 cm (12" x 12")F. 1set x Aluminum frames as 800(x) * 450(y) mm (2) Cap attachment IncludedA. 2pcs x cap ring per headB. 1set x hoop station + cap driver per head (3) Other accessories includedA. 1set x Machine TableB. 1set x Operation manualC. 1box x Tool kit and spare partsD. 1set x Bobbin winderE. 1set x U disk ETCplease contact flower for more details
