| Price: | US $ 7938-9784/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ca6150 |
|---|---|
| Main Motor: | 7.5kw |
| Max. Swing Over Carriage: | 300mm |
| Max.Swing Over Bed: | 500mm |
| Spindle Taper: | Mt6 |
| Max.Length Of Work Piece: | 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm |
| Width Of Bed: | 400mm |
| Section Of Turning Tool: | 25*25mm |
| Spindle Speeds: | 10-1400rpm/16-1400rpm |
| Max.Tail Stock Spindle Travel: | 150mm |
| Tail Stock Spindle Diameter: | 75mm |
| Type: | Horizontal Lathe |
| Processing Accessory: | Chuck CNC Lathe |
| Tool Holder: | Single-tool Holder CNC Lathe |
| Power Source: | Electric |
| Controlling Mode: | Artificial |
| Automatic Grade: | Manual |
| Setting Mode: | Table |
| Precision: | High Precision |

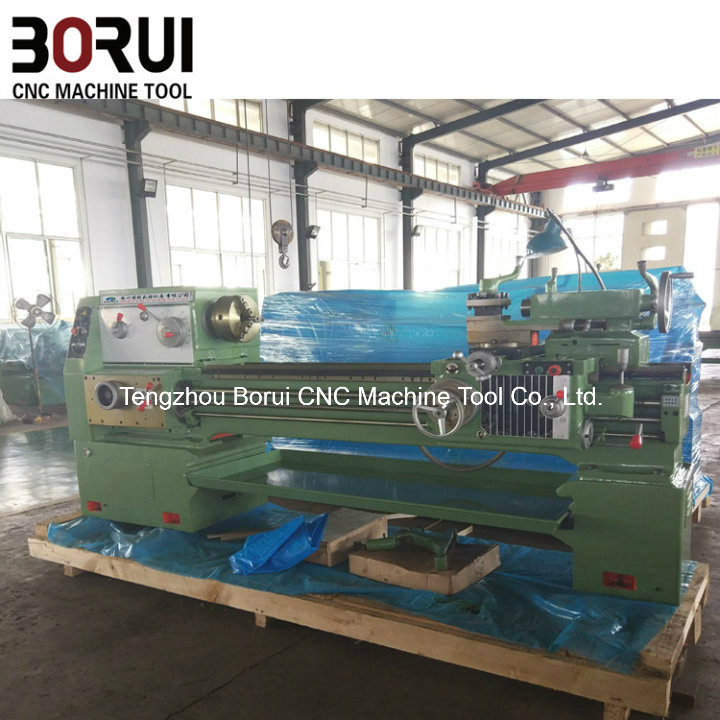

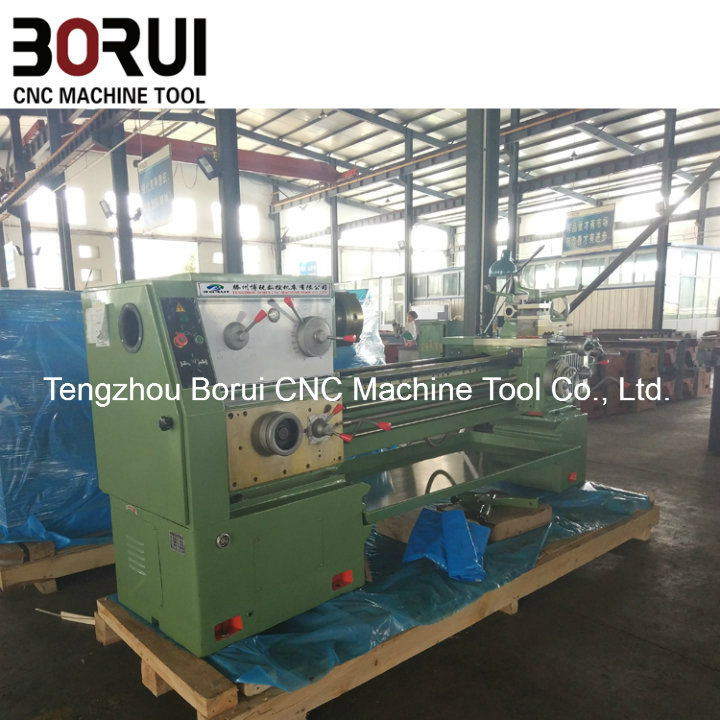

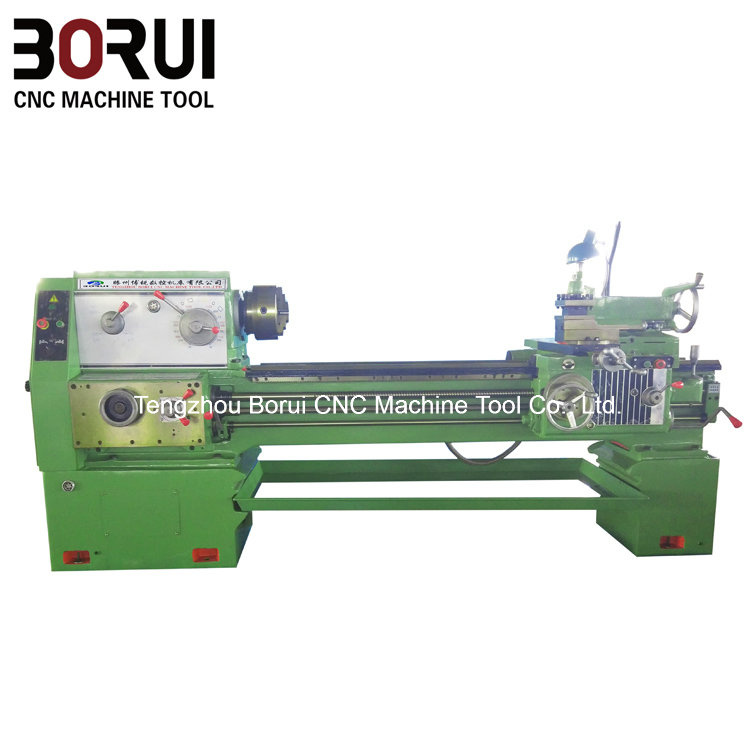

Lathe Machines Ca6150 Lathe Machine for Sell
Product Application
CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.
The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.
Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization.
The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting.
Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.
The main specification :
| Specifications | CA6150 CA6150B CA6150C | CA6250 CA6250B CA6250C | |
| Max. Swing over bed | 500mm | ||
| Max. Swing over carriage | 300mm | ||
| Max. swing in gap | -- | 720mm | |
| Effective gap length | -- | 210mm | |
| Max. length of work piece | 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm | ||
| Width of bed | 400mm | ||
| Section of turning tool | 25x25mm | ||
| Spindle | Spindle speeds | 10-1400rpm/16-1400rpm(24steps) | |
| Hole through spindle | 52mm. (80mm). [105mm] | ||
| Spindle taper | NO.6(MT6)(Φ90 1:20)[Φ113 1:20] | ||
| Feed | Number of feeds | 64(kinds)(for each) | |
| Range of metric threads(kinds) | (1-192mm)44kinds | ||
| Range of inch threads(kinds) | (2-24tpi)21kinds | ||
| Range of module threads(kinds) | 0.25-48(Moduie39kinds) | ||
| Range of pitch threads(kinds) | 1-96DP(37kinds) | ||
| Cross slide travel | 320mm | ||
| Top slide travel | 140mm | ||
| Tailstock | Max. tail stock spindle travel | 150mm | |
| Tail stock spindle diameter | 75mm | ||
| Taper of tail stock spindle center hole | NO.5(MT5) | ||
| Main motor | 7.5KW(10HP) | ||
| Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750 | |
| Overall dimensions for1000mm | 2700x1140x1750 | ||
| Overall dimensions for1500mm | 3200x1140x1750 | ||
| Overall dimensions for2000mm | 3700x1140x1750 | ||
| Overall dimensions for2200mm | 4030x1140x1750 | ||
| Overall dimensions for3000mm | 4850x1140x1750 | ||
| Overall dimensions for4000mm | 5800x1140x1750 | ||
| Weight (kg) | Length | G.W N.W. | |
| Weight for 750mm | 2100 1990 | ||
| Weight for 1000mm | 2190 2070 | ||
| Weight for 1500mm | 2350 2220 | ||
| Weight for 2000mm | 2720 2570 | ||
| Weight for 2200mm | 2800 2600 | ||
| Weight for 3000mm | 3300 3200 | ||
| Weight for 4000mm | 3500 3400 | ||
1. Centers;
2. Steady rest (750mm without this);
3. Follow rest (750mm without this);
4. Foot plate;
5. 3-jaw chuck;
6. Leading screw guard; (3000mm without this)
7. Toolpost protection;
8. Chuck protection;
9. Cooling system;
10. Work Lamp.
11. Back guard
1. Quick change toolpost
2. 2-axis Digital readout
3. 4-jaw chuck
4. Tamping attachment
The main performance characteristics:
1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine.
3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.
4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance.
6 The machine adopts high strength four station turret shank size: 25x25mm.

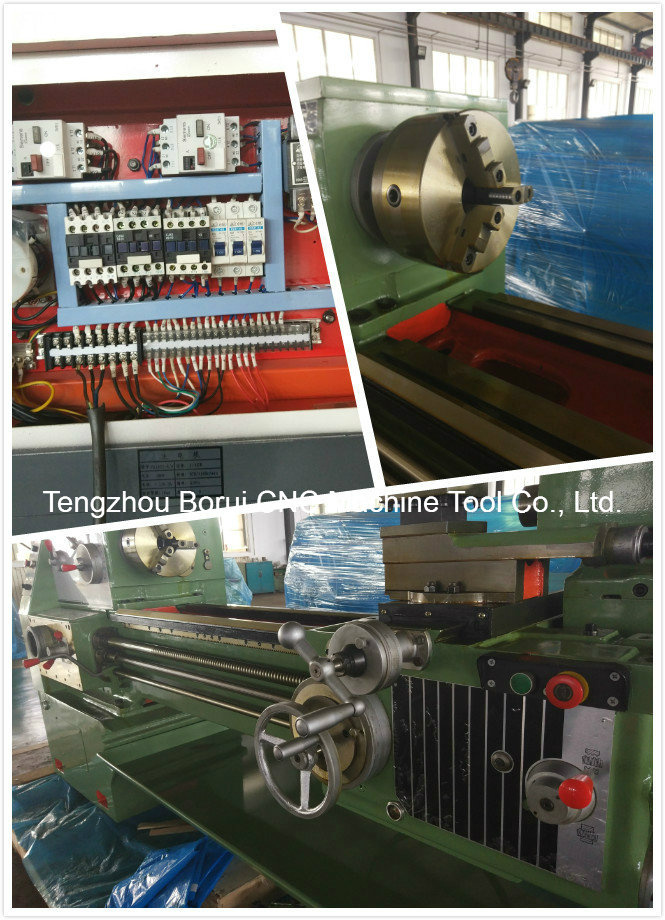

Product Dtails
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ:
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
