| Prod Model: |
ZD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Automatic |
| Type: |
Garment |

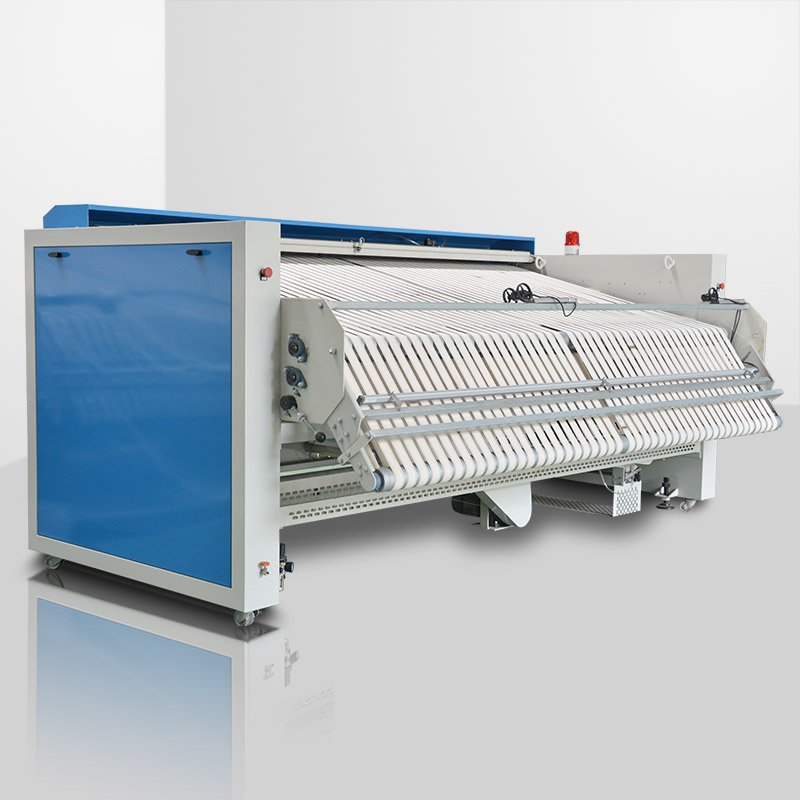

Product Description
1. Various sheet folder: Folding scope can be 3600*3000mm or 3600mm*3300mm
2. Folding way: Horizontal and vertical starting control, double channels folding modes.
3. High intelligence LCD touch screen: Easy to check the malfunction and easy to operate.
4. Inverter: Frequency inverter drive with soft start to reduce stress on drive components and Have variable drive speed features
5. Other parts: Heavy-duty motor with overloading protection, heavy duty Belt and chain Drive. START/STOP button pause and restart operation without interrupting folding in progress
| Item name | Unit | ZD3000-V | ZD3300-V |
| Folding length*width | mm | 3600*3000 | 3600*3300 |
| Working capacity | m/min | 30 | 30 |
| Supply pressure | Mpa | 0.5-0.7 | 0.5-0.7 |
| Compressed air consumption | L/min | ~80 | ~80 |
| Rated input power | Kw | 1.1+0.37 | 1.1+0.37 |
| Power consumption | Kw/h | 0.6 | 0.6 |
| Drainage of air compressor | | 0.3 | 0.3 |
| Dimension | mm | 4640*2530*1930 | 4940*2530*1930 |
| Overall weight | Kg | 1450 | 1450 |
| External weight | | 4 provided by users |
| Power supply | VP/Hz | 380/3/50 | 380/3/50 |
Jiangsu Jiezhong Machinery Manufacturing Co., Ltd is one of the leading manufacturers of industrial and commercial laundry equipments in China for years. In 2013, Jiezhong became the only one cooperative partner of Accurate Technologies in Thailand. Since then, Jiezhong has the right to sell the Image brand to domestic and foreign countries. Also, Jiezhong has been engaged with customers from a wide varity of industries, invested time and energy in our customers' maintenance and development, offering products and service designed to face the challenges we meet every day.
As a professional manufacturer, our products are widely recognized and trusted by customers all over the world and are applied in hotels, hospitals, military, laundry companues, for its superb quality, reasonable prices and stylish designs. Our main products are: Washer extractor, barrier washer, tumble dryer, ironing machine, and folding machine. Also we sell Image brand products from Thailand named tunnel washer, deep chest ironer and towel folding machine. To ensure high quality, our company spares no expense to the introduction of international advanced equipment, such as laser cutting machines.
We take full responsibility of repair, replacement, if serious quality problems happen during the term of service. Our company is commented to providing the best solution for your laundry. We have served thousands of satisfied customers around the market, enjoying a high reputation both at home and abroad.
Nevertheless, we welcome your visit and are looking forward for future cooperation for mutual benefits.
