Prod Model: |
YP |
Brand: |
Huayi |
Heating Method: |
Steam, Electric, Gas |
Roller Number: |
4/3/2/1 |
Roller Material: |
Stainless Steel |
Used For: |
Laundry Plant; Hotel; School; Hospital |
Apply To: |
Bedsheet |
Roller Speed Adjust: |
Frequency Converter |
Warranty: |
One Year |
Packing Specification: |
Packing with Standard Export Wooden |
Product Description

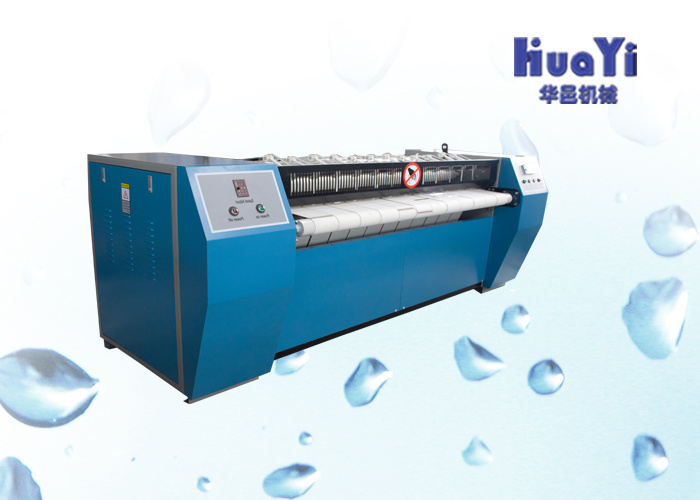

Laundry Flatwork Sheet Ironing Machine For Curtain / Table cloth
Product description:
1.Modular design allows flexibility in upgrading and future expansion when needed,
Upgrading of single roller ironer to double roller or double roller to three roller can be easily carried out at site.
2.Ironing roller with 800mm in diameter;Well- guided feeding design.The fabrics to be ironed are in good contact with more than 75% of the roller surface.
Thus giving good ironing result.
3.Rollers are made of 55304 stainless steel.
All other auxiliary rollers are galvanized and rust proofed so that they are durable and are of rust proofing surface treatment.
4.Rollers are driven by gears and sprockets.Thus the drive is smooth, low noise level and steady.
With vfd, the ironing speed can be easily adjusted as when required.
5.Equipment is with built in safety guard to prevent accident when feeding the fabric for ironing.Door inter-lock safety design to prevent equipment from starting when doors are not properly closed.E-5top operation during emergency.
6.This equipment is suitable for launderette of hotel, hospital,schools,army etc.
It is also widely used by independent laundry shop and garment manufacturers.
Specification:
YP series Steam Heating Ironing Machine
Model | Unit | YP8023I | YP8025I | YP8030I | YP8023II | YP8025II | YP8030II | YP8025III | YP8030III |
Drum Diameter | mm | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
Max ironing width | mm | 2200 | 2400 | 2800 | 2200 | 2400 | 2800 | 2400 | 3000 |
Ironing speed | m/min | 0-6 | 0-6 | 0-6 | 0-15 | 0-15 | 0-15 | 0-28 | 0-28 |
Ironing temperature | ºC | 158 | 158 | 158 | 158 | 158 | 158 | 158 | 158 |
Steam pressure | mpa | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Moter power | kw | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 |
Rated voltage | V | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 |
L*W*H | mm | 3420*1300*1320 | 3620*1300*1320 | 4120*1300*1320 | 3420*2200*1320 | 3620*2200*1320 | 4120*2200*1320 | 4250*3250*1360 | 4450*3250*1360 |
Machine weight | kg | 1350 | 1450 | 1550 | 2200 | 2300 | 2600 | 4800 | 5000 |
YPD series Electric Heating Ironing Machine
Model | Unit | YPD2300I | YPD2500I | YPD3000I | YPD2300II | YPD2500II | YPD3000II |
Drum Diameter | mm | 800 | 800 | 800 | 800 | 800 | 800 |
Max ironing width | mm | 2200 | 2400 | 2800 | 2200 | 2400 | 2800 |
Ironing speed | m/min | 0-8 | 0-8 | 0-8 | 0-18 | 0-18 | 0-18 |
Ironing temperature | ºC | 200 | 200 | 200 | 200 | 200 | 200 |
Electric heater capacity | kw | 25 | 27 | 31.5 | 50 | 54 | 63 |
Moter power | kw | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 |
Rated voltage | V | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 |
L*W*H | mm | 3550*1350*1360 | 3750*1350*1360 | 4250*1350*1360 | 3550*2300*1360 | 3750*2300*1360 | 4250*2300*1360 |
Machine weight | kg | 1500 | 1560 | 1650 | 2950 | 3100 | 3300 |
Company Information:
Shanghai huayi washing machine manufacture co ., LTD was eatablished in 2002 as a privately owed company specialization in commercial laundry equipment . Occupies land area of square meter and
the registered capital is 13 million RMB.Our company have passed ISO9001,ISO14001 certified, the
quality of products are far ahead.
Currently our main products include Full Suspension auto washer extractor , Coin operated washer
extractor , Barrier washer extractor , Industrial-auto tumble dryer , Flatwork ironing machine , Auto
Folder Machine , Dry cleaning Machine . All of them are well accepted by hotels, hospitals , schools
/Universities ,army , laundry plants ,laundry shop etc . Our overseas customers include the users from
America , South Africa , Southeast Asia,Europeetc . Innovation has become an important factor to
enhance the brand value .HUAYI brand will around with "Brand Value " promote the technology
innovation and Service Innovation .
The main products:
Dry cleaning equipment,Industrial laundry equipment , Drying equipment , Ironing equipment , and
other six types of 60 kinds of specifications models
Advantages:
1. How long have you engaged in this industry?
We have been engaged in this area for more than 20 years . We are a leading manufacturer in
Commercial laundry equipment and our products have been exported to customers all over the
world such as Australia , southeast Asia , Arab and African.
2. What gives you an unfair advantage?
Our machines are expertly manufactured using the toughest , most premium materials in the
industry.
3. How do you ensure quality control?
Three steps , First , our worker , after we finished our product , we wil check it one by one . Then
our package department , they will check the items before they start to pack . Third,we have
certificates.
We will sincerely for every customers service , sincerely welcome clients from home and abroad to
negotiate business , and create a better tomorrow !
Please don't hesitate to contact me if you're interested in our machines.
Factory Name: Shanghai HuaYi Washing Machinery Co.,Ltd
Contact Person: MS Cindy
Tel: 0086-21-5713-2593
Fax: 0086-21-5713-6458
Mobile: 0086-18021015226
Factory Address: No.9269, Chuan Nanfeng Rd, FengCheng Town, FengXian District, Shanghai,China
Shanghai HuaYi washing machinery Co., Ltd. Located in Hongmiao Industrial Zone, Fengxian District in Shanghai, covers an area of more than 3000 square meters. More than 300 employees, the existing 32 senior technicians, 200 skilled line operators; Have CNC laser cutting machine, CNC plasma cutting machine, CNC flame cutting equipment, CNC sheet metal processing equipment, 500 tons of hydraulic machines and other kinds of production and processing equipment. We are now have grown to the park's premier first-class industrial washing equipment manufacturers.
Shanghai HuaYi washing machinery Co., Ltd, is professional experts for Washing solution integration.
The main products: Industrial laundry washing machines, laundry Drying equipment, Ironing, folding equipment, Dry cleaning equipment, , and other six types of 60 kinds of specifications models.
We always uphold the tenet of service, Customer recognition of the machines is the biggest comfort to us. Welcome to visit our factory, we are very pleased to cooperate with you.
