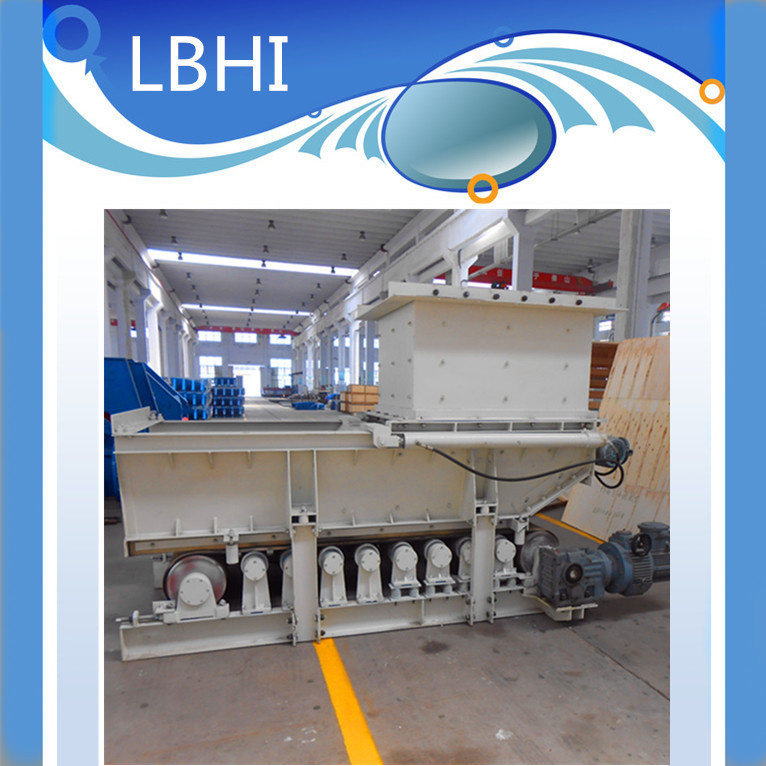

1. Production introduction: GLD series belt feeder for conveyor sytem
Product description | GLD series belt feeder is a newly-designed feeding device for large and highly-efficient mining system.This type of feeder is based on K-type reciprocating feeders, using the belt instead of reciprocating structure, changing the sliding friction into rolling friction.Therefore, friction factor is reduced effectively, and power consumption is reduced accordingly. |
Product advantages | 1.The thick one-piece sulfide-forming PVG belt with skirt, is of strong tensile strength, impact resistance, highly tear-resistant, abrasive resistant and long service life;The skirt can avoid spreading material, which improve efficiency. 2.VF motor is directly connected with gearbox, which is energy-saving and low operation cost; 3.vibrating window is reserved and the handle is offered, so it is much easier to clean away the sticky material; 4.Large feeding capacity, small size and weight, easy to delivery and install underground, which can reduce the work greatly; 5.Wide setting range of feeding capacity, easy to adjust ; 6.Small working resistance, low cost consumption and long working service; 7.Smooth operation and little noise, friendly for environment; 8.Strong commonality of components, easy to installation and maintenance. |
2. Advanced features
Large feeding capacity, small size, light weight, easy to transport and install underground, can greatly reduce the workload underground.
Large feeding capacity adjustment range, easily adjustable
Low moving parts working resistance, low power consumption, long life and work from moving parts.
Smooth motion, low noise and protective of the environment.
High parts versatility, easy installation and maintenance.
3. Specification parameter sheet
Specifications Model | Main motor power (KW) | Maximum feeding amount (t / h) | Rated belt speed (m / s) | Rated oil pressure hydraulic pusher (Mpa) | Hydraulic pusher motor power (KW) | Hydraulic valve closing force (KN) | Dimensions (L / B / H) (mm) | Weight (kg) |
GLD800/5.5/S | 5.5 | 800 | 0.686 | 8 | 4 | 45.2 | 3670/ 1640/ 1775 | 3410 |
GLD800/5.5/B |
GLD1000/5.5/S | 5.5 | 1000 | 0.857 | 8 | 4 | 45.2 | 3670/ 1640/ 1775 | 3410 |
GLD1000/5.5/B |
GLD1200/7.5/S | 7.5 | 1200 | 1.03 | 8 | 4 | 45.2 | 3670/ 1640/ 1775 | 3510 |
GLD1200/7.5/B |
GLD1500/7.5/S | 7.5 | 1500 | 0.965 | 8 | 4 | 45.2 | 4100/ 1840/ 1910 | 4200 |
GLD1500/7.5/B |
GLD1800/11/S | 11 | 1800 | 1.157 | 8 | 4 | 45.2 | 4100/ 1840/ 1910 | 4230 |
GLD1800/11/B |
GLD2000/11/S | 11 | 2000 | 1.286 | 8 | 4 | 45.2 | 4100/ 1840/ 1910 | 4230 |
GLD2000/11/B |
4. Cetificates:
ISO9001, ISO14001, OHSAS18001, CE, SGS, etc.
