| Price: | US $ 20000-30000SET |
|---|---|
| Min Order: | 1SET |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Functions:
1. Adopting digital control program.
2. Saddles and rollers driven by Panasonic servo devices.
3. The revolution of the spindle controlled by Panasonic frequency conversion control devices.
4. Large number of built-in quilting patterns for your choice.
5. Easy and quick editing of patterns.
6. 360°Freedom of quilting 360¡ã all round patterns
7. Function to quilt independent patterns.
8. On-line help on operation.
9. with 500/m needle rate stitches between 2mm-6mm adjustable.
10. Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.
11. Simulation display of quilting.
12. Automatic needle raising and location brake system.
13. Function of automatic stop on breaking of thread (optional)
14. Infrared sensors to guarantee the safety of the operator
Specifications:
| Model | YBD94"-3 needle bar | Remarks: |
| Quilting width | 2438mm | |
| X stroke | 279.4mm | |
| Running speed | 400-500n/m | |
| Output speed | 30-100m/h | |
| Max thickness | 60mm | up to the quilting material,polyester wadding can reach 60mm, for sponge no more than 25mm |
| Max pattern size | 12"X12" | |
| Flying shuttle | 10# | bottom thread length 140m |
| Needle distance | 1 inch | |
| Needle row distance | 3 inch | |
| Stitch length | 2-6mm adjustable | |
| Rated Voltage | AC380V | |
| Power | 5.5kw | |
| Machine size | 480X120X165CM |

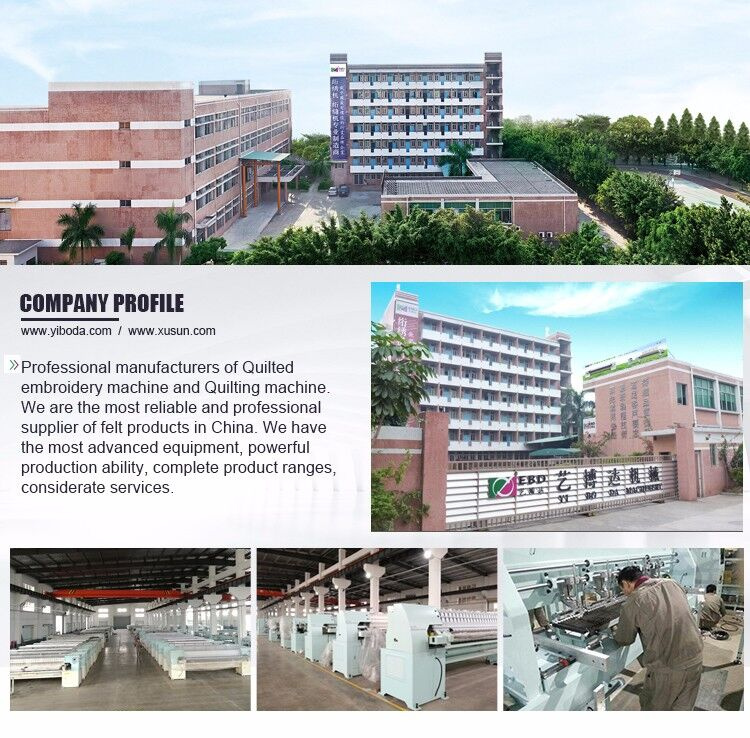

YIBODA Industrial company brief introduction
YIBODA Industrial Co.,Ltd is situated in Hadi Industrial Zone, Nanchen Section, Dongguan City, Guangdong Province.
The leading product in YIBODA are computerized quilting embroidery machine and computerized muti-needle quilting machine, bobbin winder. The best selling model are YBD333, YBD325, YBD318, which complied with the essential safety requirement of EU machinery directive 98/37/EC & 2006/95/EC low voltage directive applied codes and standard. We are able to make customized built machine to meet your special requirements.
YIBODA have good capacity on product research and development, gained the certificate of design patent, utility model patents.
Having strived for over 12 years, YIBODA brand machines gained good reputation in both home and over abroad.
With principal policy "Prestige First, Customer Foremost, To be the best trade brand in China" in the highly competitive market, we have been making progress in management system, quality system…ect.
| Prod Model: | YBD64-3 |
|---|---|
| Quilting Width: | 1676mm |
| Quilting Design: | 360° |
| X Area: | 310mm |
| Rated Voltage: | ±4% |
| Weight: | 2000kg-3000kg |
