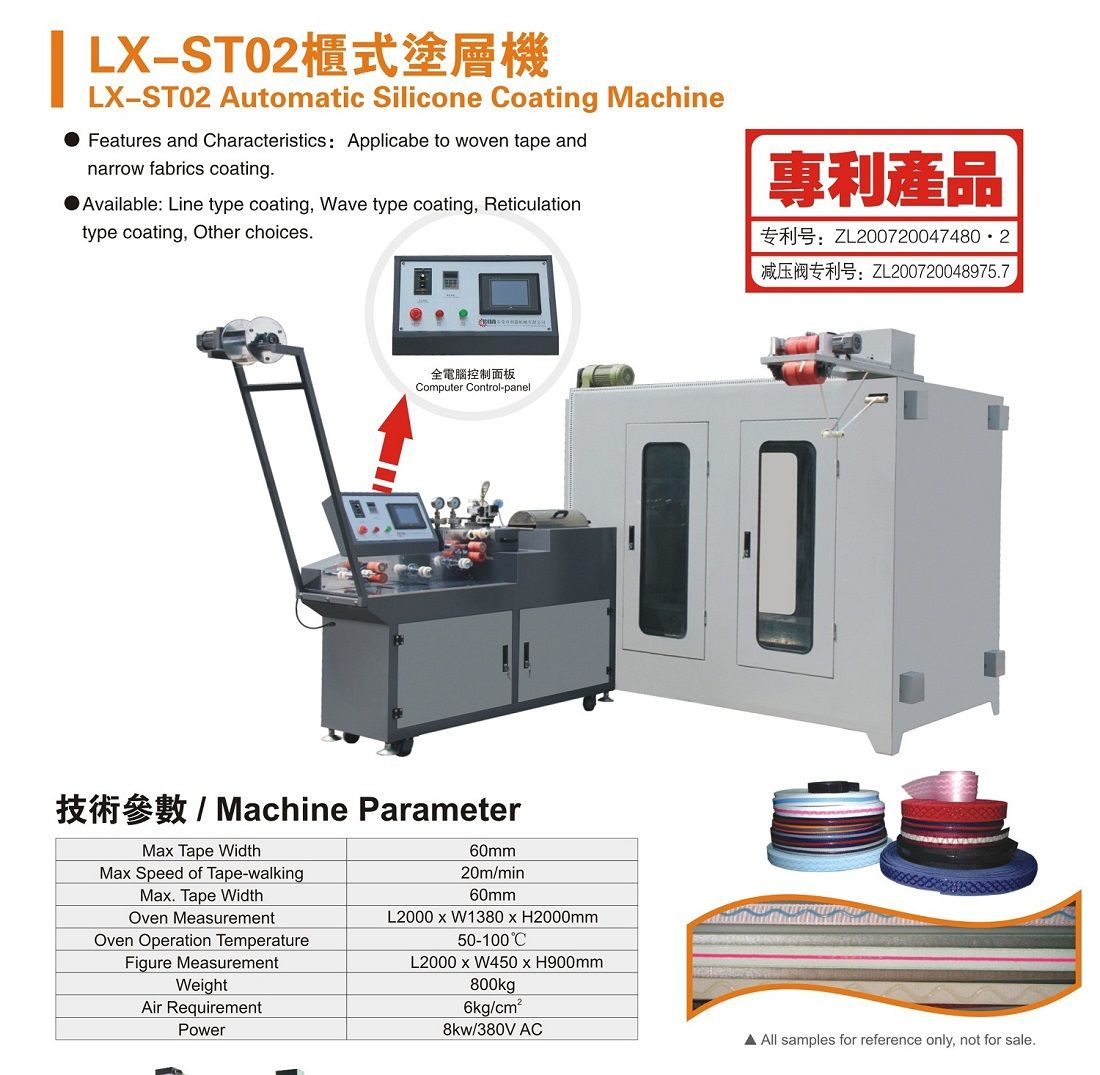

Automatic silicone coating machine is with PLC programming control system and is used for silicone coating on elastics, specially designed for narrow fabric coating.The coating series has anti silippages advantages. The products are very popular now in the underwear garment.
Patent NO. :ZL200720047480·2
Pressure reducing valve patent NO. :ZL200720048975·7
Application:1.Features and Characteristics:Applicable to woven tape and narrow fabrics coating.
2.Available:Line type coating,Wave type coating,Reticulation type coating.
Machine Parameter| Max Tape Width | 60mm |
| Max Speed Of Tape-walking | 20m/min |
| Oven Measurement | L2000xW1380xH2000mm |
| Oven Operation Temperature | 50-100 ºC |
| Figure Measurement | L2000xW450xH900mm |
| Weight | 800kg |
| Air Requirement | 6kg/cm² |
| Power | 8kw/380V AC |
Package & delivery& payment1. Package: Seaworthy wooden case packages.
2. Delivery: Max 30 days after order confirmed.( If have stock, 2 days is ok ).
3. Payment: 30% T/T in advance as deposit, 70% T/T before shipment. L/C is acceptable for special area or country.Company & Certificate
Main Products1. PVC automatic production line:most advanced Injection and dripping machine, Semiautomatic and Full-automatic type.
2. Liquid silicone brand shaping machine (6 work heads, automatic processing, fast speed and durable quality)
3. Solid silicone brand shaping machine(30% energy saving, high efficiency, one step finished)
4. Silicone three-dimensional printing machine, Silicone lace coating machine, pre-shrinking machine---all automatic type with Unique patent.
5. Support equipment (CNC Engraving machine,Vacuum machine, baking oven,cooling machine etc.)
6. Your idea, we made, Lixin is your best choice.Company profile
Guang Dong Li Xin Intelligent Technology Co.,Ltd. is updated from the name of DONG GUAN LI XIN MACHINERY CO., LTD, acting as first leader and most professional manufacture specialized in PVC and Silicone machinery. Strong R&D team and more than 20 years of experience earn us a good reputation in the world where the machine to have been. Because of development request, we establish Our oversea office in India, Bangladesh and Indonesia and also hoping to have many office in other countries very soon.Contact usGuang Dong Li Xin Intelligent Technology Co.,Ltd
China Factory:Niu Shan Industrial Garden:Dong Chen District,Dong Guan, Guang Dong, China
Tel: +86-769-22664082 22698499 22209643
Fax:+86-769-22669648
Mobile:+86-13711992817
Website: www.printingmc.com
Guang Dong Li xin Intelligent Technology Co., Ltd. is updated from Dongguan Lixin Machinery Co., Ltd. Which Was founded in early 1990s and is situated in rich East Town of Dongguan City. Our company is a manufacturing and developing enterprise professionally engaged in the field of soft PVC machine and liquid silicone machine and solid silicone machine and KPU machine and CNC machine and heat transfer machine and silicone printing machine and embossing machine and textile machine etc. For a decade, our company has not only bettered troops and simplified administration in management, but also endeavored to do better in technology. Our company has set up a good reputation within the industry and become the first and earliest production base of soft PVC machine and silicone machine and kpu machine domestically.
Our main products are one station solution for soft PVC production, silicone production, kpu production etc. Including baking ovens, mixing and dispersing machines of raw materials, color matching machines, vacuum defoaming machines, automatic dipping machines, silicone moulding machines, mould cooling machines and automatic assembly lines. Our products sell well in the whole world more than 60 contries.
Quality is the life and efficiency comes from management. With the efforts, we have set up a set of strict quality inspection system and perfect pre-sales and after-sales service measures. We will do our utmost to surpass the expectation of customers, make continuous improvements to ensure sustainable development of our enterprise, let us become a visiting, consulting and training base for new and old customers in PVC microscale injection trade mark and silicone trade mark machinery field.
You make fortune, but let me develop. Let's go forward hand in hand and do our best to make PVC and silicone trade mark industry come to a new height in the new century!
