| Prod Model: |
BL1010/BL1015/BL1020/BL1515/BL2015/BL2020/BL3030 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Word: |
Air Pushing Bag,Polymer Cushion Air Bag for Marble |
| Color: |
Yellow, Blue,Pink. |
| Aplication: |
Push Stone Blocks, Marble Quarry |
| Main Market: |
South and North America,Africa,Asia,Europe. |
| Material: |
High Quality Polymer |
| Operation: |
Very Easy Opertation by a Control Panel and Hose. |
| Size: |
Various Size Available |
| Pushing Power: |
20 to 200 Tons |
| Stock: |
Have Enough Stock |
| Type: |
Italian Type Such as EV64 EV62 |
Product Description
Xiamen Bestlink Factory design and produce the polymer air pushing bag.
Factory locaced at Xiamen. Air Bag is manufactured with High-tech materials and processed by special techniques, no frequent problem in split and damage. It performs primely and is suitable for blocks splitting after wire saw cutting in quarrying.
Splitting and overturning pushing air bag operational procedure:
1. To avoid damages to the pushing air bag at deployment, start by carefully clearing the edges of the stone block of possible debris;
2. Consult the thrust table to determine the types and number of pushing air bag required to spread an opening 15cm between the
Sawed block and the quarry;
3. Fasten one end of two pull back ropes to the rings at the upper edge the bag and tie the other ends to fixed point;
4. Link the air supply through pressure gauge tube to the bag;
5. Begin the inflating operation by opening the ball valve connected to the bag;
6. Continue inflating until obtaining opening of 10-15cm opening, place appropriate metal wedges under the stone block;
7. Overlap the bags until overtuning block;
8. Shut off the air input valve of each bag, disconnected the hoses from the bag, after the deflation is completed, pull out the bags.
| Model | Specification | Theoretical pushing capacity | weight(kg) |
| BL1010 | 1.0m×1.0m | 50tons | 4.5 |
| BL1015 | 1.0m×1.5m | 75tons | 6.8 |
| BL1020 | 1.0m×2.0m | 100tons | 9.0 |
| BL1515 | 1.5m×1.5m | 115tons | 10.2 |
| BL2015 | 2.0m×1.5m | 150tons | 13.5 |
| BL2020 | 2.0m×2.0m | 200tons | 18.0 |
| BL3030 | 3.0m×3.0m | 450tons | 40.5 |

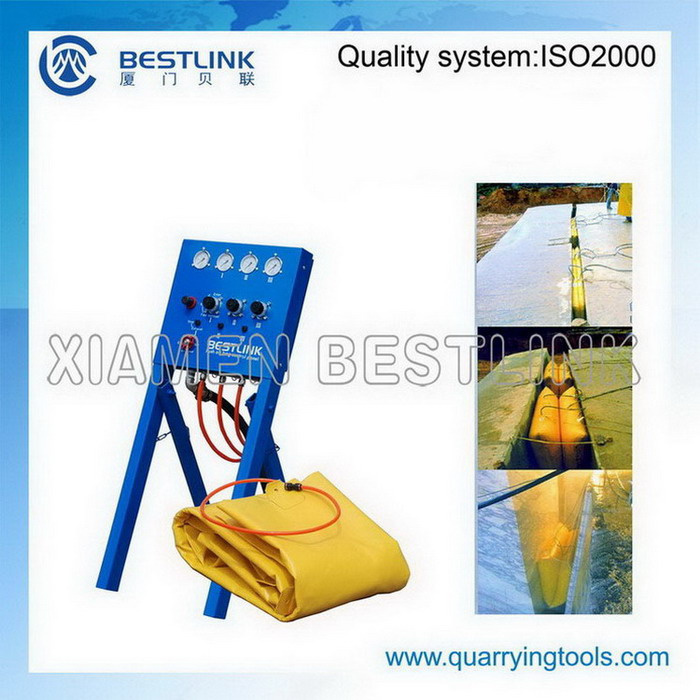

| Control platfrom for above air bag |
| air pressue 0-6bar,3 outlet | 30.0 |
