Metallic Pipes Ice Guard Self Regulating Heating Trace Tape
| Price: |
US $ 5-10/Foot |
| Min Order: |
100/Foot |
| Pay Type: |
L/C,T/T,D/P,Paypal |
Metallic Pipes Ice Guard Self regulating Heating Trace tape
Product Description

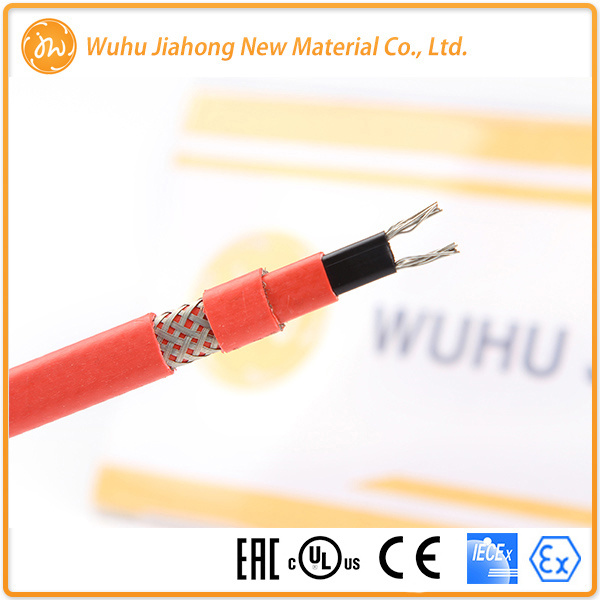

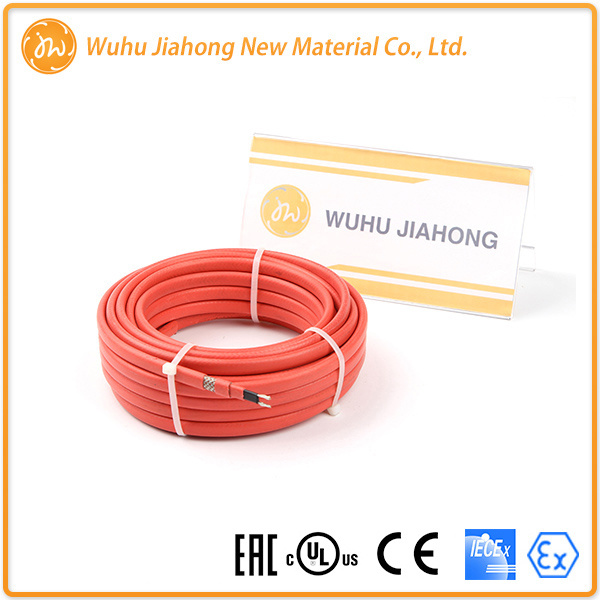

1.Product pictures of Metallic Pipes Ice Guard Self regulating Heating Trace tape
2.General imformation of Metallic Pipes Ice Guard Self regulating Heating Trace tapeFeatures1.Energy efficient automatically varies its power output in response to pipe temperature changes
2.Easy to install, can be cut to any length (up to max circuit length) required on site with no wasted cable.
3.Lower installed cost than steam tracing, less maintenance expense and less downtime.
4.No overheat or burnout even when wrapped over itself (overlapped).
5.Suitable for use in non-hazardous, hazardous and corrosive environments.
6.Jiahong power connection, splice, tee and end seal kit will reduce installation time.DescriptionHTLe increases or decreases the heat output in a self- regulating way depending on the change of the ambient temperature, so a thermostat may not be necessary in some applications and it will never overheat or burnout even when wrapped over itself (overlapped). With optional outer-jacket, the heating cable is resistant to watery and inorganic chemicals and protects against abrasion and impact damage
HTLe is suitable for use in explosion-hazardous areas up to a maximally admissible work-piece temperature of 150ºF
(65ºC). Jiahong provides termination, power connection, splice, tee and end seal kit will reduce installation time and require no special skills or tools.ApplicationHTLe is a UL listed self-regulating parallel heating cable (heating tape), is designed for residential and commercial metal and plastic pipe freeze protection and roof and gutter de-icing applications. It is ideal for use in maintaining fluid flow under low ambient. Freeze-protection and low watt density process temperature systems such as pipelines, fire protection, process water, dust suppression systems, hot water and structure anti-icing are typical applications for this product. UV stabilized thermoplastic elastomer outer jacket is provided to cover the braid for wet applications andexposure to the sun.OptionsHTLE…C Tinned copper braid provides additional mechanical protection and a positive ground path.
HTLE…CR Flame retardant thermoplastic outer jacket protects against certain inorganic chemical solutions, it also protects against abrasion and impact damage.
HTLE…CT High-Temperature Fluoropolymer outer jacket is used for exposure to organic or corrosive solutions or vapors may be present. Dimension and weight| Type | Dimension | Weight (kg/100m) |
| HTLE…C | 9.3*4.4mm | 8.2 |
| HTLE…CR | 10.9*6.0mm | 11.0 |
| HTLE…CT | 10.3*5.4mm | 10.5 |
Maximum circuit length (in feet) per circuit breaker| | Ambient temperature at start-up |
15A |
20A | 120V |
30A |
40A |
15A |
20A | 240V |
30A |
40A |
| 3HTLe | 50ºF | (10ºC) | 330 | 330 | 330 | 330 | 660 | 660 | 660 | 660 |
| 32ºF | (0ºC) | 330 | 330 | 330 | 330 | 660 | 660 | 660 | 660 |
14ºF
0ºF | (-10ºC)
(-18ºC) | 270
200 | 280
265 | 330
330 | 330
330 | 540
395 | 560
530 | 660
660 | 660
660 |
| -20ºF | (-29ºC) | 175 | 235 | 330 | 330 | 350 | 465 | 660 | 660 |
| -40ºF | (-40ºC) | 155 | 205 | 310 | 330 | 310 | 410 | 620 | 660 |
| 5HTLe | 50ºF | (10ºC) | 230 | 270 | 270 | 270 | 460 | 540 | 540 | 540 |
| 32ºF | (0ºC) | 230 | 270 | 270 | 270 | 460 | 540 | 540 | 540 |
14ºF
0ºF | (-10ºC)
(-18ºC) | 180
140 | 210
190 | 270
270 | 270
270 | 360
285 | 420
380 | 540
540 | 540
540 |
| -20ºF | (-29ºC) | 125 | 165 | 250 | 270 | 250 | 330 | 500 | 540 |
| -40ºF | (-40ºC) | 110 | 145 | 220 | 270 | 220 | 295 | 440 | 540 |
| 6HTLe | 50ºF | (10ºC) | 200 | 235 | 245 | 245 | 405 | 470 | 490 | 490 |
| 32ºF | (0ºC) | 200 | 235 | 245 | 245 | 405 | 470 | 490 | 490 |
14ºF
0ºF | (-10ºC)
(-18ºC) | 160
125 | 200
170 | 235
135 | 245
245 | 320
255 | 400
340 | 475
475 | 490
490 |
| -20ºF | (-29ºC) | 110 | 150 | 220 | 245 | 225 | 300 | 440 | 490 |
| -40ºF | (-40ºC) | 100 | 130 | 195 | 240 | 195 | 260 | 400 | 480 |
| 8HTLe | 50ºF | (10ºC) | 150 | 200 | 210 | 210 | 300 | 400 | 420 | 420 |
| 32ºF | (0ºC) | 150 | 200 | 210 | 210 | 300 | 400 | 420 | 420 |
14ºF
0ºF | (-10ºC)
(-18ºC) | 140
100 | 150
130 | 205
200 | 210
210 | 280
200 | 300
265 | 410
400 | 420
420 |
| -20ºF | (-29ºC) | 85 | 115 | 175 | 210 | 175 | 235 | 350 | 420 |
| -40ºF | (-40ºC) | 80 | 105 | 155 | 210 | 155 | 210 | 315 | 420 |
| 10HTLe | 50ºF | (10ºC) | 120 | 160 | 180 | 180 | 240 | 315 | 360 | 360 |
| 32ºF | (0ºC) | 105 | 140 | 170 | 180 | 210 | 280 | 340 | 360 |
14ºF
0ºF | (-10ºC)
(-18ºC) | 95
80 | 125
110 | 165
160 | 180
180 | 190
160 | 250
215 | 330
325 | 360
360 |
| -20ºF | (-29ºC) | 70 | 95 | 140 | 180 | 145 | 190 | 285 | 360 |
| -40ºF | (-40ºC) | 60 | 85 | 125 | 170 | 125 | 170 | 255 | 340 |
Company Information1.About UsWuHu Jiahong New Material Co. Ltd is the largest heating cable manufacturer in Asia-pacific. We are always dedicated to research, develop and produce both constant wattage and self-regulating heating cables since 1993. Till now, Jiahong has obtained more than 30 national patents. We are one of the few members of China self-regulating heating cable national standard GB/T 19835-2005.
Most of WuHu Jiahong products passed UL, CSA, ETL, TUV, CE, ATEX etc. We export to many regions, especially North America, Europe, Australia and Asia. High quality combines with professional services earned us a good reputation.
2. Why Choose us
Advantages
Our Services
We help our customer develop heating cable, floor heating, snow melting for their application and OEM offered.

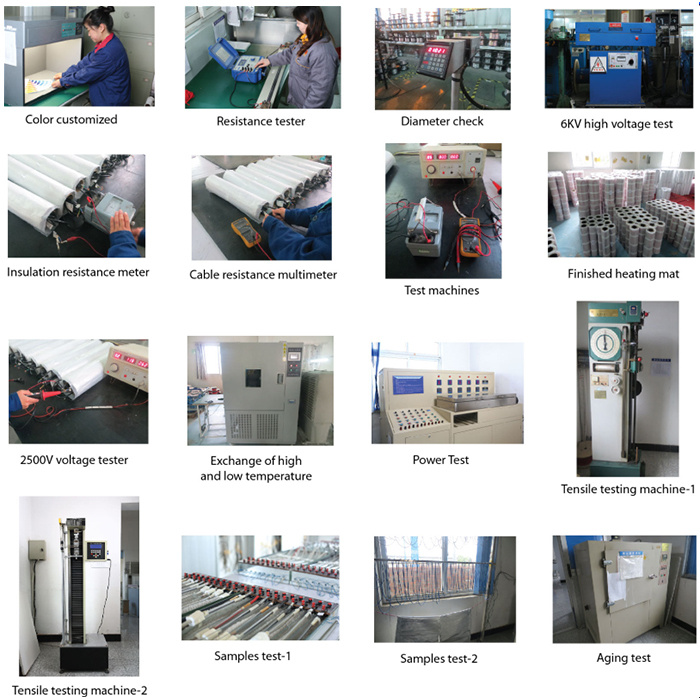

Quality control
3. Company Certificates
FAQ
1.How long will it take for the underfloor heating system to warm up?
| The warm up time of an electric underfloor heating system will be dictated by the insulation used beneath it and the output of the system. In general, the better insulated the sub-floor the faster the system will warm up, with Underfloor Insulation boards?facilitating a very speedy warm up time of as little as 15 minutes, and un-insulated concrete floors causing the slowest warm up time. Using a?200W system?beneath ceramic/stone tiles provides a faster warm up time than 150W system. |
2. Can I turn my heating on the day it is fitted?
| If you have installed your heating beneath tile adhesive, levelling compound or a screed you must allow this to dry out before turning on your system for the first time. If the system is turned on too early it will force the moisture out of the covering which may lead it to crack. We would recommend speaking to the manufacturer of your flexible tile adhesive, grout or screed to confirm the drying time required. |
3. Does each room require its own thermostat?
| We would recommend that each room has its own heating system controlled by its own thermostat. This will allow for simpler and more accurate temperature control of each room and will avoid heating rooms which do not require it. |
| Prod Model: |
HTLE |
| Service Voltage: |
110-120V, 220-277V |
| Power On: |
+65ºC(150ºF) |
| Power On Or Off: |
+85ºC(185ºF) |
| Minimum Installation Temperature: |
-40ºC(-40ºF) |
| Protective Braid Resistance: |
18.2Ω/Km |
| Bus Wire Gauge: |
16AWG |
| Approvals: |
UL / Iecex / Atex / Eac/ Ce |
