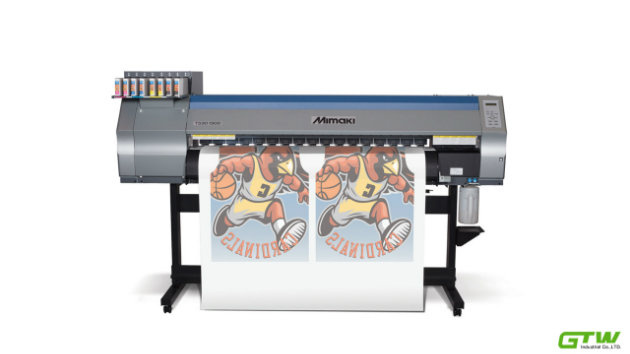

Mimaki Ts30-1300 Entry Model Sublimation Transfer Inkjet Printer for Printing

Prod Model:	TS30-1300
Plate:	Lithography Printing
Structure:	Platen Press
Color & Page:	Multi-Colour Printing Press
Printing Interface:	USB2.0
System Supported:	Window8
Printing Speed:	Print Resolutions: 540dpi, 720 Dpi, 1,080dpi

Product Description

Product Description
  TS30-1300 has been developed as an entry model best suited to high-mix low-volume production of apparel prototypes and ordered goods.
  The TS30-1300 is a "do-it-yourself" type of printer that allows you to rapidly and easily print necessary things in necessary quantities when they are necessary.


Product Specification

Printhead	On-demand piezo head
Print resolutions	540dpi, 720 dpi, 1,080dpi
Maximum print width	1,361 mm (53.6 in)
Maximum media width	1,371 mm (54 in)
Packaging	440ml ink cartridge (Bl, M, Y, K, Lbl, Lm, Fp, Fy) 2L ink pack (Bl, M, Y, K, Lbl, Lm) *
Media thickness	Less than 1.0 mm
Roll weight	Less than 25kg
Certifications	VCCI class A / UL60950-1 / FCC class A /  CE Marking (EMC and Low voltage directive) / CB report
Interface	USB 2.0
Power supply	Single phase AC100 - 120V / AC220 - 240V ±10%
Power consumption	300W or less
Operational  environment	Temperature: 20 - 35 °C (68 - 95 °F) Humidity: 35 - 65% Rh (Non condensing)
Dimensions (W×D×H)	2,289 mm × 739 mm × 1,424 mm (90 in × 29 in × 56 in)
Weight	145 kg (319.7 lb)

Characteristic

Easy-to-operate entry model that can be used at ease
- Featuring only a selected set of functions, the printer is easy to operate. Even first-time users can use it at ease.
- Mimaki's cost-effective water-based sublimation transfer ink Sb54 is compatible and it offers high ink jetting stability, enabling beautiful printing.


Printing on necessary items in necessary quantities as needed
- 4-color ink set offers a printing speed of up to 19.6 m2/h*
* 19.6 m2/h (4-color / Draft mode/ 540×720 dpi / 2 pass)
- Realizing high-mix, low-volume production or sample creation within your company enables you to present your product to your client quickly.


Sublimation transfer printer enhances product presentation ability
The sublimation transfer technology, which can be used in a range of applications from the creation of customized items to the printing on polyester fabric, broadens the breadth of your business.


Features

Easy-to-operate entry model that can be used at ease
This is an entry model of the sublimation transfer printer that features only a selected set of functions so that you can readily use it. The printer is bundled with Mimaki's RIP software, RasterLink6, enabling you to start printing right after introducing it. It also comes with Mimaki's Sb54 ink, which offers stable ink ejection by lowering the settlement property of dye. Even first-time users can use the sublimation transfer printer at ease.

Printing on necessary items in necessary quantities as needed
TS30-1300 realizes the in-house production of high-mix low-volume print products, such as textile or sports apparel prototyping or the creation of customized items. Performing the printing jobs, formerly outsourced to a subcontractor, the in-house production reduces the lead time of sample delivery to the client. Additionally, when the client requests a change in the design, the new design can be printed and delivered immediately without asking a subcontractor. The TS30-1300 enhances presentation ability and increases business opportunities.

Sublimation transfer printer enhances product presentation ability
1) Creation of an apparel sample
Polyester fabric is now widely used in the textile and apparel industry. With the TS30-1300, you can print original full-color images not only on clothes but also on such items as bags, scarves, tights, and socks. Designs with variables, such as player numbers and names on sports uniforms, can also be printed easily just by editing the data.

2) Customized items
Images can be printed on polyester-made banners, towels, T-shirts, handkerchiefs, mouse pads, neck straps, cushions, etc. as well as on polyester-coated mugs, glasses, coasters, etc. With a single printer, you can create many different customized items, which helps broaden the breadth of your business.


Superiority

1.Low MOQ:It can meet your sample display business very well.

2.OEM Accepted:The products can be customized

3.Good Service:No any excuses for 24 hours service

4.Good Quality:We have strict quality control system, good reputation in the market

5.Fast & Cheap Delivery:We have big discount from forwarder and aircargo (Long Contract)

Our Innovation
1.Quality & Service:At GETWIN, our priority has been providing our customers with great quality products and superior customer service with no excuses.

2.Quick Lead Time:We're dedicated to completing all orders in the fastest time with commitment.

3.Competitive Prices We continuously strive to find ways of reducing our production costs, and lower the purchase cost for you.

4.Brand Awareness:The goal of any strong brand is achieve a level of awareness that delivers the idea of quality, value, service and responsibility to all of your potential customers.

5.Special Offers:In order to maintain our competitive edge, we are running special offers on our promotional products, consumable parts and customized services.Please contact our sales team to see how we can help you save a lot of money.

Order Guide
1.Inquiry for professional quotation and patient communication.

2.Confirm the price, lead time, sample, payment term etc to complete orders.

3.WER sales send the PROFORMA INVOICE to you with GETWIN company seal.

4.Customer make the payment for deposit and send us The Bank Receipt.

5.Initial production will be arranged in terms of the lead time, we will inform customers in first time if any uncertain matters will happen, adjust the new lead time.

6.Middle Production will send photos to show production schedule which you can see your products in.Confirm everything goes well and let you relax.

7.End Production will send the photos to you for approval, we will arrange the shipment after approval You can also arrange the third party Inspection before shipment.

8.Clients make payment for balance and GETWIN sales will ship the goods.Also can accept
The Payment Term of Balance against B/L Copy Or Sight L/C payment Term.Inform the tracking number and check the status of parcel for clients or original B/L for sea-shipment.

9.Order can be say "finish" when you receive the goods and satisfy with them and our service.

10.Feedback about Quality & Service, Market Feedbacks & Suggestions, we can do better.

Excellent After-sale Services

1.One year warranty
You can discuss operation and maintenance with our technician online support service by Skype, MSN etc.Remote control will be provided upon request.

2.Free exchange of new components
Our quality is guaranteed 100%, the spare parts can be replaced within one year free of charge includes the airfreight by express, except for the print head and some damageable parts.

3.Free online consultation
The technician will keep online.No matter what kind of technical questions that you may have, you would get a satisfactory answer from our professional technician easily.

4.Free onsite installation and training
If you are able to help us with getting the visa and also would like to bear the costs involved like flight tickets, food, etc, we can send our technician to your office, and to give you a free installation and training for as long as you know how to operate it

Why choose GETWIN
A wide range of great products totaling over 50000 in future

.WER means customers can, employees can and investors can

.Professional customer after services and troubleshooting

.Become our potential partners as long as you believe yourself

.Friendly helpful customer services from GETWIN

.Free or low shipping cost from Shanghai port to any port

.No minimum order quantity request

.Shipping protected with product declaration


FAQ

1.What materials this printer can print on?

GETWIN eco solvent ink has a higher compatibility.A variety of professional print modes, meet the application requirements of different industries.Completely suitable for sublimation paper.


2.What is the printer production capacity / printing speed?

GETWINindoor sublimation printer equipped EPSON DX5 and DX7 Piezo print head, two printheads distributed Dislocated.The printing width of the printhead is 2 inch, each color has 720 nozzles, make the printing speed to increase 2 times, Auto sense ink supplying system, make the inks flow more smoothly,  large front heating boards help to avoid drying inks to effect the ink output efficiency.Print 360*720 DPI,the speed can up to 52.7/hour.


3.What about the printing quality?

Equipped with EPSON DX5 and 5113 Piezo print head, variable drop printing, 1440 DPI high resolution output, unique two-dimensional eclosion function, eliminate the printing banding, improve the printing quality.Original import bushless motor, High precision drive, Linear decoding, higher accuracy, the length error is smaller, improve the printing quality, and ensure the stable running.

4.Is printhead easy to clog?

Use import ink stack, and automatic Print-head cleaning system,ink absorption, Moisturizing function, to get highest printing quality.Ensure the best printing output, The big capacity ink supplying system, guarantee the request of the ink supply.Improve the moisture of the nozzle.Ensure the output quality of the frame.

5.What software to be Compatible?

Intelligent design, compatible for maintop,photoprint etc printing software can be Compatible, scientific operation to make the printing easily.

6.Does the machine need long time to deal with the pictures?

Our printer equipped HI-USB, the transfer speed can be 480M/S, save much time for you.

7.Operating principle of thermal sublimation printer ?

Operating principle:Thermal sublimation transfer is based on the technology that some pigment
Will sublimate after heating to a certain degree.In the process of sublimation, pigment will dye
The fabric textile or synthetic material permanently after reaching on them.

When operating, firstly print the thermal sublimation ink to heat transfer paper.Graphics will be
Printed to the base materials after heating pressing.The design can be very clearly printed to the
Sublimation paper .


8.How to select the quality thermal sublimation ink?

1.Prints will be sublimated to products through the thermal sublimation of thermal sublimation ink, so rate of reduction of the ink color is very important.Very glad to sayimported thermal sublimation ink all have 90% rate of reduction, with which pictures have very good color saturation and are very bright.

2.If the thermal sublimation ink has big ink particle, it will clog the print head.Prints printed with it does not look very smooth.Sometimes can easily see particle with magnifying glass.

9.The applications of sublimation Eco Solvent printer.

The sublimation Eco solvent printer is widely used for printing textile, handbag, woven belt, luggage cases, gauze pad, packing materials, advertising media and so on.
