| Prod Model: |
Customized |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Specification: |
Customized |
| Grade: |
Yg8 or Customized |
| Chemical Composition: |
Tungsten Carbide Powder and Cobalt Powder |
| Surface Condition: |
Polish or Blank |
| Physical Performance: |
High Hardness, High Strength, Wear Resistance |
| Color: |
Grey or Silver |
Product Description

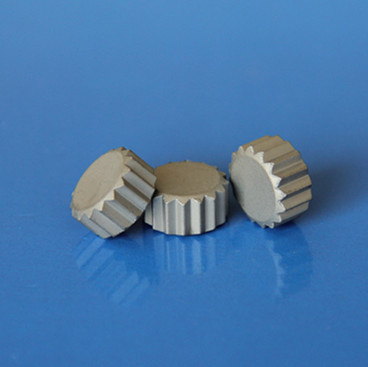

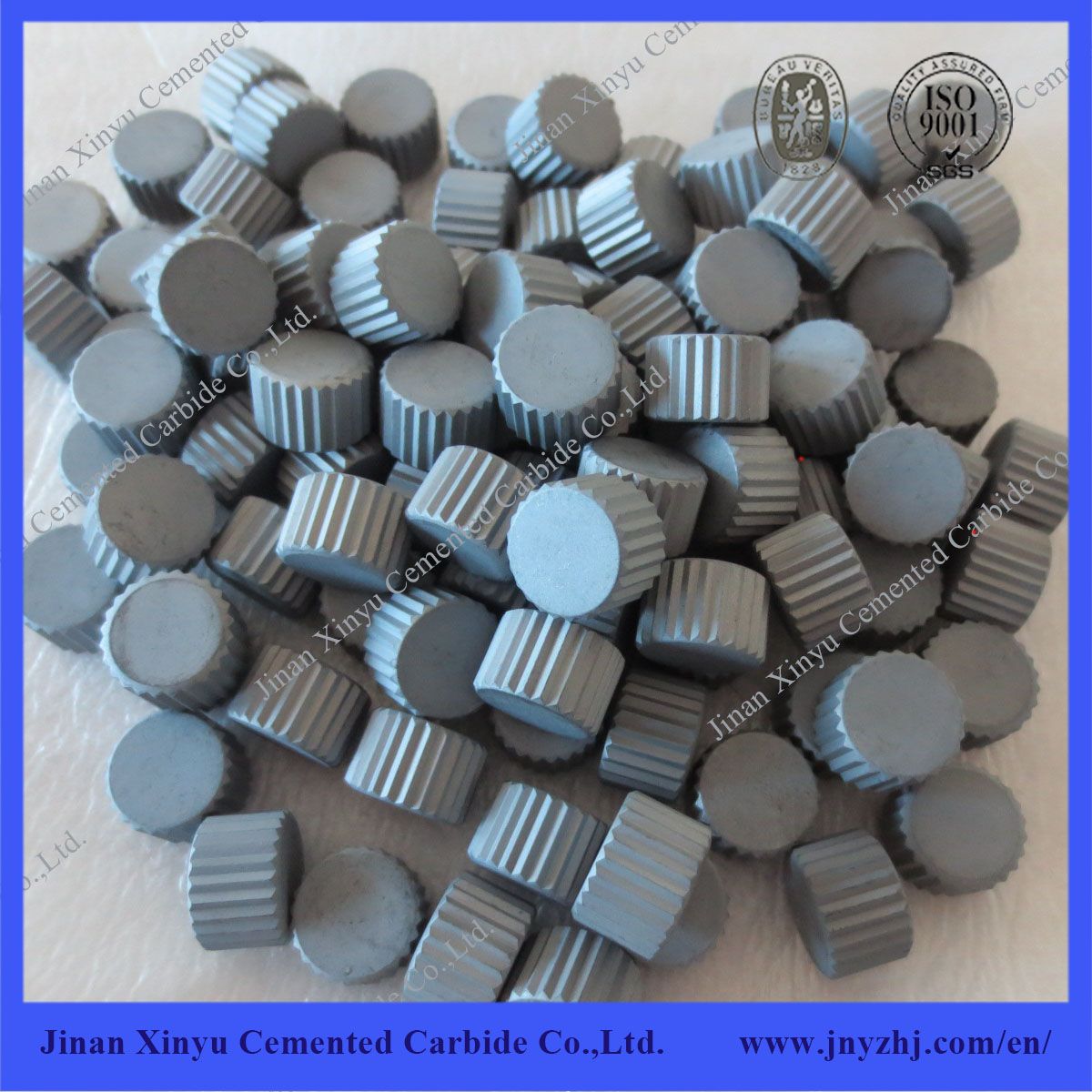

Tungsten Carbide Flattop Buttons for Mining
Flat Top Button: Mainly used on the flank of bits, like PDC bits or rock bits, for protecting and have good wear resistance.

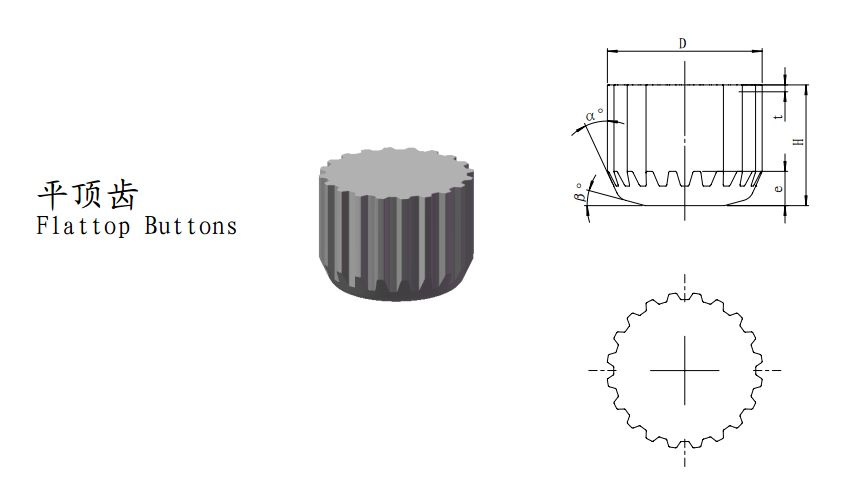

Drawing and Specifications:
| TYPE | Dimension mm |
| D | H | t | α° | β° | e |
| P0606 | 6.5 | 6.0 | 0.5 | 25 | 15 | 1.1 |
| P0807 | 8.15 | 7.5 | 0.5 | 25 | 15 | 1.9 |
| P0907 | 9.75 | 6.9 | 0.5 | 25 | 15 | 1.9 |
| P1109 | 11.35 | 8.8 | 0.5 | 25 | 15 | 2.5 |
Our Advantages:
1.Professional manufacture for tungsten carbide with more than 10 years experience. All prodycts have passed the ISO9001 certifications.
2.we have our own factory to produce the molds and products, so the delivery is fast. Also we have the professional sales teams to satisfy you well.
3.All products go throught in-process and final inspection. Strictly and complete quality control system.
4.Made from 100% vrigin material, stable and reliable quality.
5.We can accept order of all kinds of special designed products of tungsten carbide.
6.Various payment terms and delivery methods supported
7.Sample and free online technical servic is available
Tungsten Cemented Carbide Grades, Properties And Applications Recommended
Grades
|
Density(g/cm³)
|
Hardness(HRA)
|
T·R·S(N/mm2)
|
Application
|
YG4C | 15.00 | 89.5 | 1800 |
Maily used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
|
YG6 | 14.80 | 89.5 | 1700 |
Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
|
YG8 | 14.70 | 88.5 | 2300 |
Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
|
YG8C | 14.70 | 88.0 | 2300 |
Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
|
YG9C | 14.50 | 87.0 | 2400 |
Maily used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations.
|
YG11C | 14.40 | 86.5 | 2450 |
Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations.
|
YG13C | 14.30 | 86.0 | 2500 |
Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations.
|
YG15 | 14.00 | 86.5 | 2500 |
It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations.
|
YG16 | 14.10-14.30 | 87.5 | 2400 |
It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits.
|
YG20 | 13.40-13.70 | 85.0 | 2254 |
Mainly for the stamping dies used in the conditions of heavy impact load and large strees.
|
About Us:
Founded in 2002, Jinan Xinyu Cemented Carbide Co., Ltd. is a large licenced import and export enterprise integrating R&D, manufacture and trade of cemented carbide in a whole and has strong R&D ability and advanced production facilities.

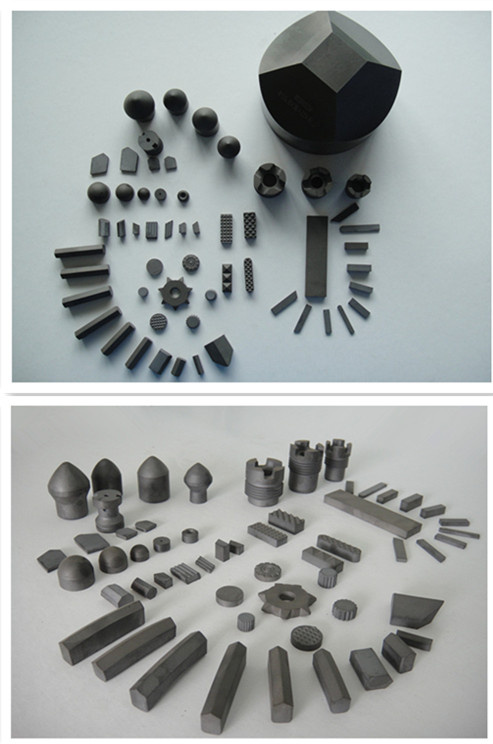

We have a complete variety and can supply the following products:
Cemented Carbide Buttons
Cemented Carbide Inserts
Cemented Carbide Rods
Coal Mining Bits
Besides, we can also provide customized products according to your drawings or samples.
